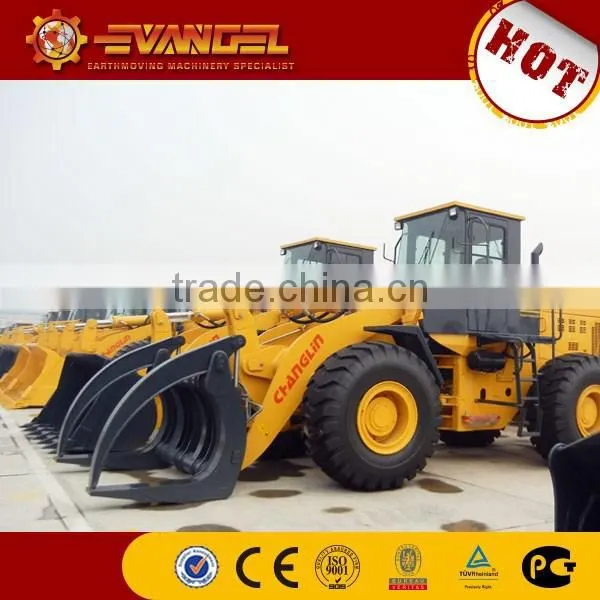

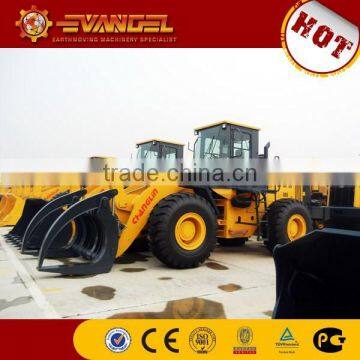

2015 New High Quality Changlin Wheel Loader Zl50h Spare Parts With Weichai Engine With CE Certification

Overall Dimension

1

Length(with bucket on ground)

Aerican engine

C6121 engine

8365(mm)

8215mm

2

Width(to outside of wheels)

2800(mm)

3

Bucket width

2946(mm)

4

Height(To the top of the cab)

3450(mm)

5

Wheel base

3350(mm)

6

Tread

2200(mm)

7

Min. ground clearance

450(mm)

Main Technical Specification

1

Rated load

5000(Kg)

2

Operating weight

16300KG

3

Rated bucket capacity

3.0(m3)

4

Max. breakout force

160kN

5

Max. dump clearance

3050(mm)

6

Dump reach

1107(mm)

7

Dump angle at any position

≥450

8

Digging depth(with bucket bottom horizontal)

165(mm)

9

Min. turning radius

(1) Outside of bucket

6675(mm)

(2) Outside of rear wheel

5879(mm)

10

Pivot angle frame

400

11

Oscillating angle of rear axle

+13o

12

Lifting time of bucket

≤5.8(sec.)

13

Lowering time of bucket

≤3.8(sec.)

14

Dumping time

≤1.2(sec.)

15

Traveling speed(Km/h),3 forward and 3 reverse

(1) 1st gear

7.05/9.0

(2) 2nd gear

11.7/16.0

(3) 3rd gear

34.6/38.24

Diesel engine

1

Model

6CT AA 8.3-C215 (TIER2)

ShangChai C6121 engine

2

Type

Direct injection. Turbocharge. Water cooling

3

Rated output

160 (kW)

158(Kw)

4

Inter-bore of cylinder/stroke

114/135 (mm)

121/152(mm)

5

Total exhaust of cylinder

8.3 (L)

10.5(L)

6

Model of starting motor

42MT

KB-24V

7

Power of start motor

8.2(KW)

7.5(KW)

8

Voltage of starting motor

24(V)

24(V)

9

Rated speed

2200(r/min)

2200(r/min.)

10

Max. Torque

998(N.M)

>843(N.m)
