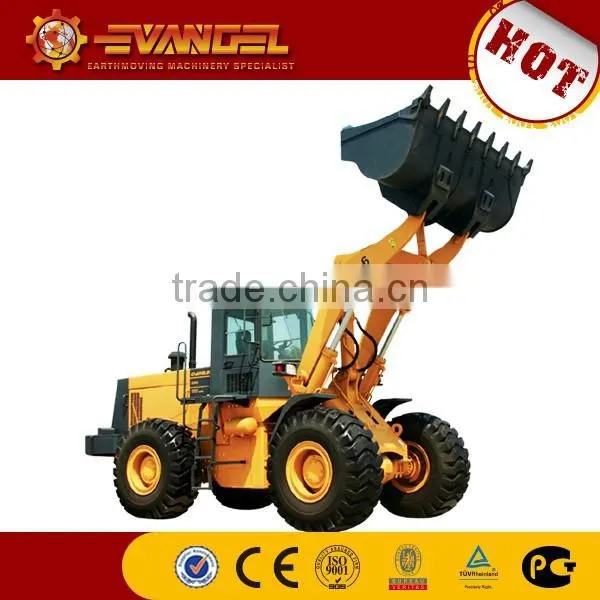

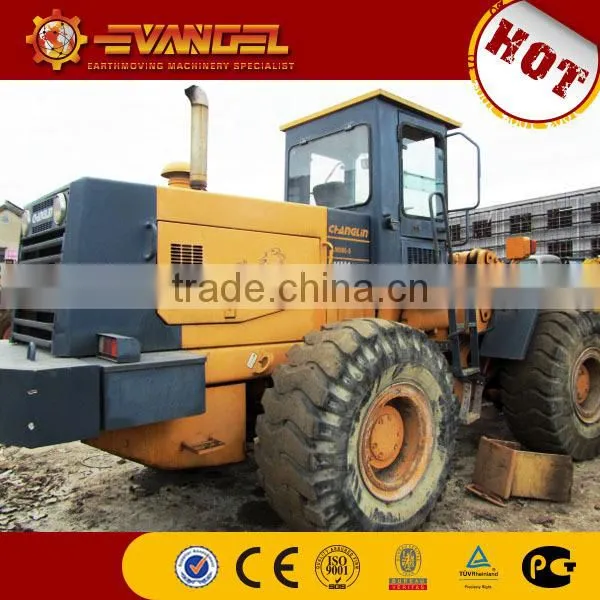

5 Ton Wheel Loader ZL50G-6

Name: 5 Ton Wheel Loader ZL50G-6
Brand: CHANGLIN
SKU: 140713920
Availability: InStock

Shanghai Evangel Industrial Co., Ltd. Gold Verified Supplier

5Yrs

US$ 10,000 - 80,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

CHANGLIN

Model Number:

ZL50G-6

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name CHANGLIN

Model Number ZL50G-6

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8215*2800*3450 mm

Rated Load 7500KGS

Certification ISO CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Changlin 5 ton Wheel Loader ZL50G-6

1.Rated Load: 5t
2.Dimension: 8215*2800*3450 mm
3.Shangchai C6121 engine

Overall Dimension
Length(with bucket on ground)	8215(mm)
Width(to outside of wheels)	2800(mm)
Bucket width	2946(mm)
Height(To the top of the cab)	3450(mm)
Wheel base	3350(mm)
Tread	2200(mm)
Min. ground clearance	450(mm)
Main Technical Specification
Rated load	5000(Kg)
Operating weight	16300KG
Rated bucket capacity	3.0(m3)
Max. breakout force	160kN
Max. traction	150kN
Max. gradient ability	300
Max. dump clearance	3050(mm)
Dump reach	1107(mm)
Dump angle at any position	≥450
Digging depth(with bucket bottom horizontal)	165(mm)
Min. turning radius
(1) Outside of bucket	6675(mm)
(2) Outside of rear wheel	5879(mm)
Pivot angle frame	400
Oscillating angle of rear axle	+13o
Lifting time of bucket	≤5.8(sec.)
Lowering time of bucket	≤3.8(sec.)
Dumping time	≤1.2(sec.)
Traveling speed(Km/h),4 forward and 3 reverse
(1) 1st gear(F/R)	6.7/6.7
(2) 2nd gear (F/R)	12.2/12.2
(3) 3rd gear (F/R)	25.6/25.6
(4) 4rd gear(F)	35
Diesel Engine
Model	ShangChai C6121 engine
Type	Direct injection. Turbocharge. Water cooling
Rated output	162 (kW)
Inter-bore of cylinder/stroke	121/152(mm)
Total exhaust of cylinder	9.7260(L)
Model of starting motor	KB-24V
Power of start motor	7.5(KW)
Voltage of starting motor	24(V)
Rated speed	2200(r/min.)
Max. Torque	843±6%(N.m)/1400(r/min)
Starting type	Electric
Min. specific fuel consumption	230(g/Kw.h)
Engine specific oil consumption	0.95-1.77(g/Kw.h)
Net weight	960(Kg)

Transmission System
Torque Converter
1	Model	ZF technology WG200
2	Type	3-elements.single stage
3	Torque ratio	2.55
4	Cooling type	Pressure oil circulating
Transmission case
1	Model	ZF technology WG200
2	Type	power shift, spur gear constant-mesh
3	Gear shift position	4 Forward and 3 reverse gears
Axle and Tire
1	Type of main reducer	spiral bevel gear, single stage
2	Gear ratio of main reducer	4.625
3	Type of final reducer	Single stage planetary
4	Gear of ratio of final reducer	4.9286
5	Total ratios	22.795
6	Size of tire	23.5-25-16PR
