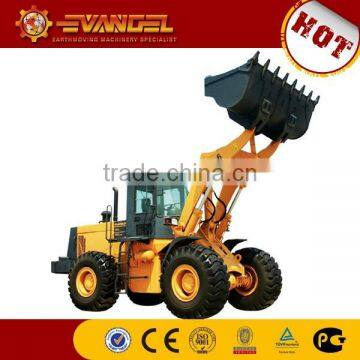

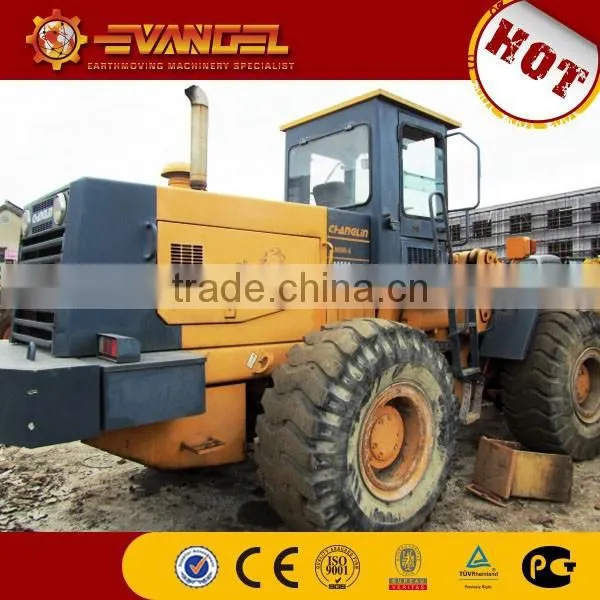

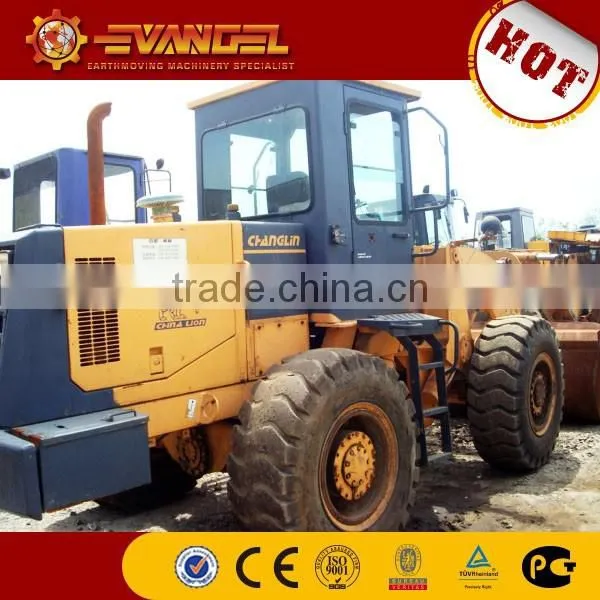

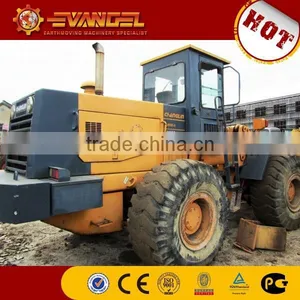

CHANGLIN ZL50G-6 diesel wheel loader with standard bucket
- 1000 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- high efficient wheel loader with 3T load and small bucket in China
- Classical Model Changlin 936 Wheel Loader
- Construction work Cable Shifting 936 3tons wheel loader for sale
- changlin brand Model wheel loader 936 wheel loader on sale
- Changlin 936 model 3 tons wheeled loader with low price loadered
- China Best Brand Changlin 3 Ton 936 Wheel Loader Price List In shanghai
Product Details
Condition: | New | Brand Name: | CHANGLIN | Model Number: | ZL50G-6 |
Type: | Front Loader | Moving Type: | Wheel Loader | Dimension(Long * Breadth * High): | 8215*2800*3450 mm |
Rated Load: | 7500KGS | Certification: | ISO CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
1 set for 40HQ container or RORO shipment or Bulk break shipment
Product Description
Changlin 5 ton Wheel Loader ZL50G-6
1.Rated Load: 5t
2.Dimension: 8215*2800*3450 mm
3.Shangchai C6121 engine
Overall Dimension | ||
Length(with bucket on ground) | 8215(mm) | |
Width(to outside of wheels) | 2800(mm) | |
Bucket width | 2946(mm) | |
Height(To the top of the cab) | 3450(mm) | |
Wheel base | 3350(mm) | |
Tread | 2200(mm) | |
Min. ground clearance | 450(mm) | |
Main Technical Specification | ||
Rated load | 5000(Kg) | |
Operating weight | 16300KG | |
Rated bucket capacity | 3.0(m3) | |
Max. breakout force | 160kN | |
Max. traction | 150kN | |
Max. gradient ability | 300 | |
Max. dump clearance | 3050(mm) | |
Dump reach | 1107(mm) | |
Dump angle at any position | ≥450 | |
Digging depth(with bucket bottom horizontal) | 165(mm) | |
Min. turning radius |
| |
(1) Outside of bucket | 6675(mm) | |
(2) Outside of rear wheel | 5879(mm) | |
Pivot angle frame | 400 | |
Oscillating angle of rear axle | +13o | |
Lifting time of bucket | ≤5.8(sec.) | |
Lowering time of bucket | ≤3.8(sec.) | |
Dumping time | ≤1.2(sec.) | |
Traveling speed(Km/h),4 forward and 3 reverse |
| |
(1) 1st gear(F/R) | 6.7/6.7 | |
(2) 2nd gear (F/R) | 12.2/12.2 | |
(3) 3rd gear (F/R) | 25.6/25.6 | |
(4) 4rd gear(F) | 35 | |
Diesel Engine | ||
Model | ShangChai C6121 engine | |
Type | Direct injection. Turbocharge. Water cooling | |
Rated output | 162 (kW) | |
Inter-bore of cylinder/stroke | 121/152(mm) | |
Total exhaust of cylinder | 9.7260(L) | |
Model of starting motor | KB-24V | |
Power of start motor | 7.5(KW) | |
Voltage of starting motor | 24(V) | |
Rated speed | 2200(r/min.) | |
Max. Torque | 843±6%(N.m)/1400(r/min) | |
Starting type | Electric | |
Min. specific fuel consumption | 230(g/Kw.h) | |
Engine specific oil consumption | 0.95-1.77(g/Kw.h) | |
Net weight | 960(Kg) |
Transmission System | ||
Torque Converter | ||
1 | Model | ZF technology WG200 |
2 | Type | 3-elements.single stage |
3 | Torque ratio | 2.55 |
4 | Cooling type | Pressure oil circulating |
Transmission case | ||
1 | Model | ZF technology WG200 |
2 | Type | power shift, spur gear constant-mesh |
3 | Gear shift position | 4 Forward and 3 reverse gears |
Axle and Tire | ||
1 | Type of main reducer | spiral bevel gear, single stage |
2 | Gear ratio of main reducer | 4.625 |
3 | Type of final reducer | Single stage planetary |
4 | Gear of ratio of final reducer | 4.9286 |
5 | Total ratios | 22.795 |
6 | Size of tire | 23.5-25-16PR |
Company Profile
Shanghai Evangel Industrial Co., Ltd. is a leading Chinese construction machinery exporter, affiliated with Evangel International Machinery Limited, located in the downtown of Shanghai City. Since our company was founded, based on the advantage of XCMG which is the No.1 Chinese construction machinery manufacturer, we continually introduce Chinese excellent construction machinery enterprises and their products to international markets, such as SANY, ZOOMLION, CHANGLIN, LIUGONG, SDLG, HOWO, SHANTUI, HBXG, YTO, BEIBEN etc. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.
Our Strengths are as follows:
(i) Eight years professional experience in international trading and rich knowledge in construction machinery & heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers;
(ii) A well educated and friendly sales team with international vision, members of which can speak fluent multiple languages, such as English, Spanish, Portuguese, Russian, Arabic and French etc;
(iii) Strong long term dealership from various top manufacturers, assuring that all our products are original brand new ones with competitive price;
(iv) Excellent logistics services (by sea, air, railway or road), ensuring timely delivery of consignments all over the world;
(v) Comprehensive after-sales service, including one year warranty, spare parts supply, installment and maintenance, and training;
(vi) An expertly managed ERP system and a well coordinated quality control system to satisfy various client requirements.
EVANGEL has passed the international quality management system of ISO9000, CE, SGS, UL and other products certification. We have an excellent after-sales service system in the interests of customers to establish good strategic partnerships with agencies around the world. We won the good reputation from reliable quality, competitive price and excellent after-sales service. Our export revenue increases constantly every year, and our products have already entered nearly 100 countries across the continents of South America, Africa, Middle East, Australia, Russia, Middle Asia, South Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you.
EVANGEL, your best choice for construction machinery in China!
