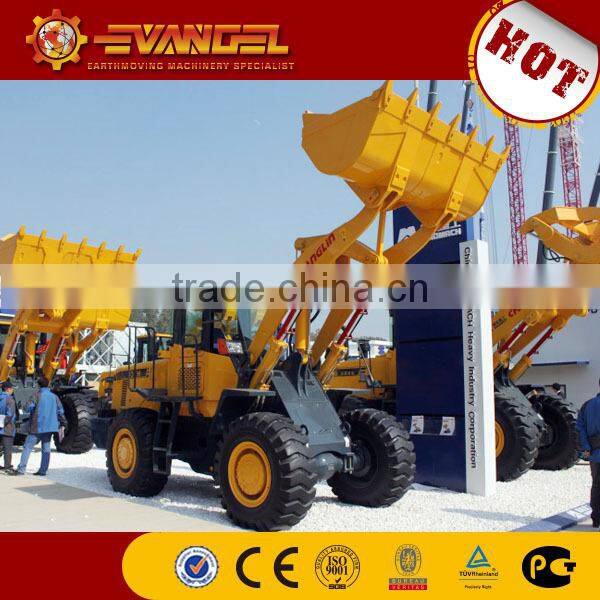

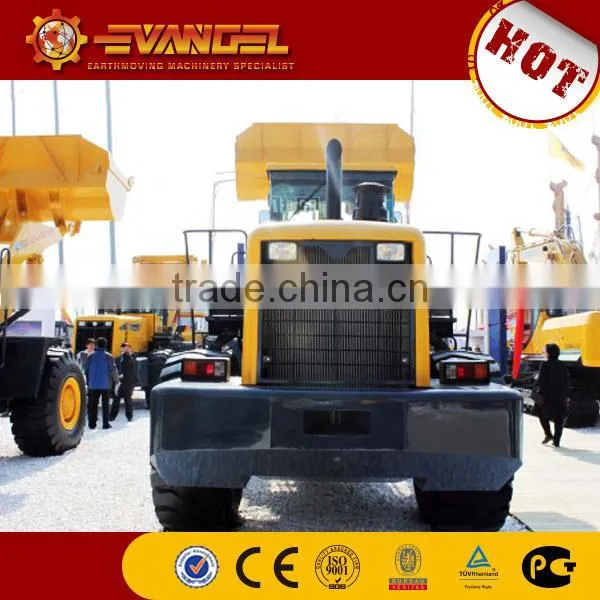

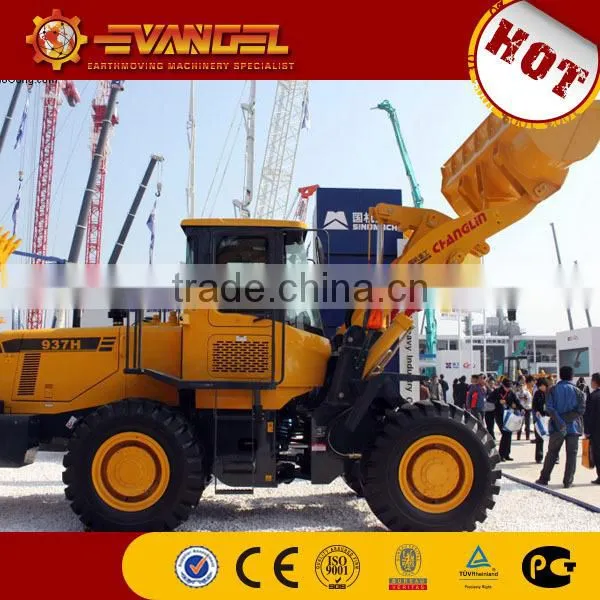

High Quality Changlin 937H Wheel Loader

Name: High Quality Changlin 937H Wheel Loader
Brand: Changlin
SKU: 140713908
Availability: InStock

Shanghai Evangel Industrial Co., Ltd. Gold Verified Supplier

5Yrs

US$ 10,000 - 60,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

Changlin

Model Number:

937H

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name Changlin

Model Number 937H

Place of Origin Jiangsu, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7425*2305*3095MM

Rated Load 3t

Certification ISO

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Product Description

2015 new 3ton Changlin loader 937

1. Engine type: YC6B125 engine

2. Rated power: 92Kw

3. Bucket capacity: 1.7m3 .

4. Operating weight: 10200kgs

Parameter : 2015 new 3ton Changlin loader 937 wheel loader

Overall Dimension
1	Length(with bucket on ground)	7425(mm)
2	Width(to outside of wheels)	2305(mm)
3	Bucket width	2462(mm)
4	Height(To the top of the cab)	3095(mm)
5	Wheel base	2750(mm)
6	Tread	1855(mm)
7	Min. ground clearance	370(mm)
Main Technical Specification
1	Rated load	3000(Kg)
2	Operating weight	10200KG
3	Rated bucket capacity	1.7(m³)
4	Max. breakout force	96kN
5	Max. dump clearance	2850(mm)
6	Dump reach	1030(mm)
7	Dump angle at any position	≥45⁰
8	Min. turning radius
	(1) Outside of bucket	5600(mm)
	(2) Outside of rear wheel	5205(mm)
9	Pivot angle frame	38+1⁰
10	Oscillating angle of rear axle	+11^o
11	Lifting time of bucket	≤5.1(sec.)
12	Lowering time of bucket	≤3.0(sec.)
13	Dumping time	≤1.1(sec.)
14	Traveling speed(Km/h),3 forward and 3 reverse
	(1) 1st gear forward	7.3
	(2) 2nd gear forward	15.7
	(3) 3rd gear forward	35
	(1) 1st gear reverse	7.8
	(2) 2nd gear reverse	16.8
	(3) 3rd gear reverse	36
