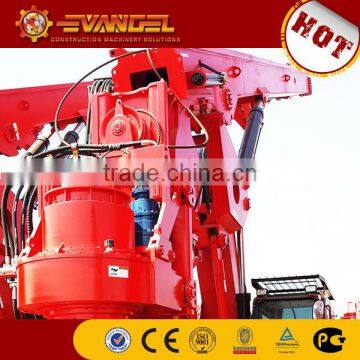

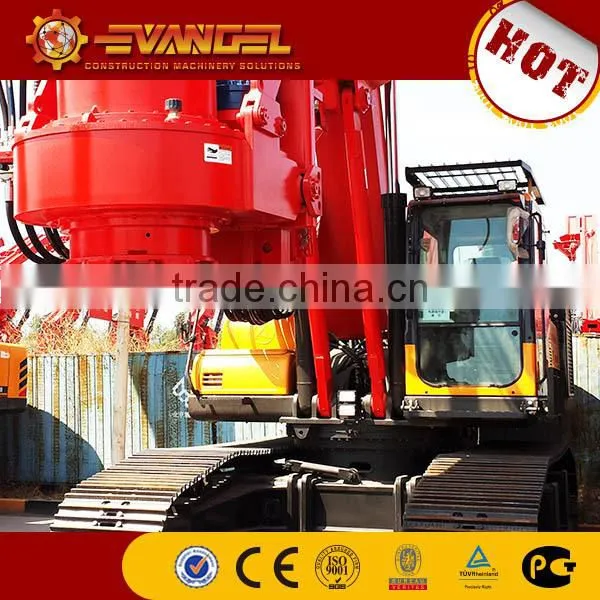

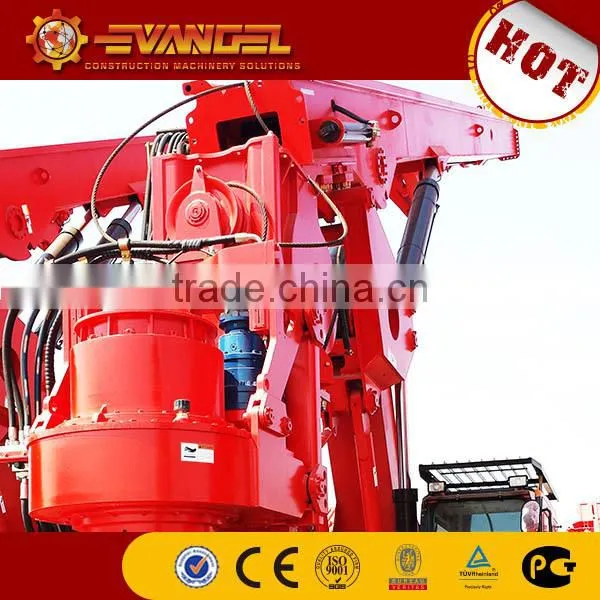

EVANGEL supply borehole rig application of drilling machine
Feature of EVANGEL supply borehole rig application of drilling machine
1) It is economical and efficient, mainly used in media and small-diameter pile civil construction;
2) Diesel engine has load induction and output power auto-control; the fuel consumption drops 5-10%;
3) 5-level anti-vibration technology absorbs drilling vibrational frequency all-directionally to guarantee high stability;
4) The special lubricating system makes sure that it can work under high-temperature environment;
5) The removable and symmetrical structure design doubles the service life of rotary drive key;
6) Crowd cylinder has two operation modes-normal lifting and fast lifting to improve push efficiency;
7) Optional chassis incline alarm enhances construction safety;
8) Mast verticality auto-adjusting technology promises the pile accuracy.
Paraments of EVANGEL supply borehole rig application of drilling machine
| Main performances | Unit | Parameters |
| Overall height(chassis/SANY chassis) | mm | 22,660/22,700 |
| Operating weight(chassis/SANY chassis) | t | 80/82 |
| Max. pile diameter | mm | 2,200 |
| Max. pile depth(friction Kelly/inter-locking Kelly) | m | 84/58 |
| Rotary Drive | ||
| Max. output torque | kN.m | 280 |
| Speed of rotation | rpm | 9~24 |
| Crowd system | ||
| Crowd force | kN | 220 |
| Line pull | kN | 220 |
| Stroke | mm | 7,500 |
| Main winch | ||
| Line pull(1st layer) | kN | 290 |
| Rope diameter | mm | 32 |
| Max. line speed | m/min | 48 |
| Auxiliary winch | ||
| Line pull(1st layer) | kN | 110 |
| Rope diameter | mm | 20 |
| Max. line speed | m/min | 70 |
| Mast inclination | ||
| Forward | ° | 3 |
| Lateral | ° | ±3.5 |
