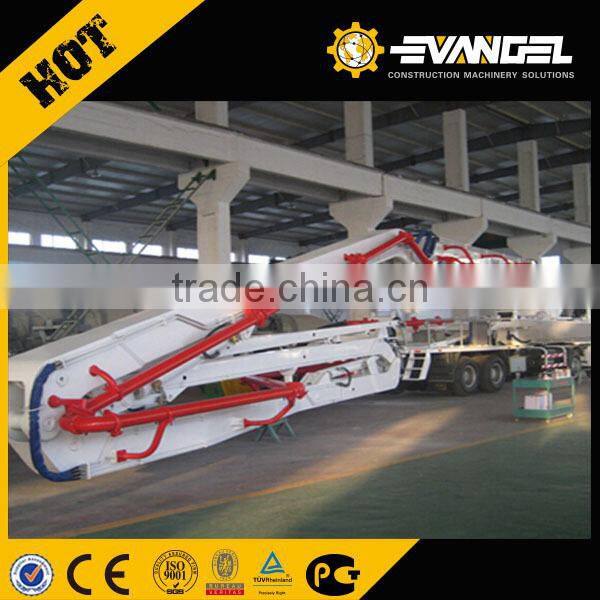

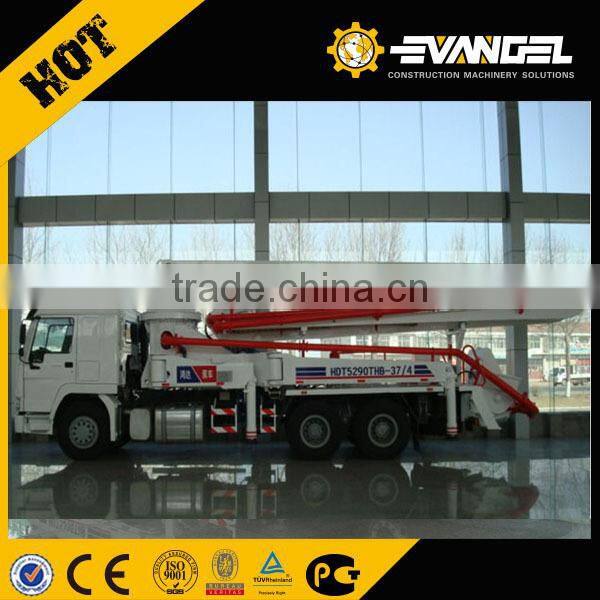

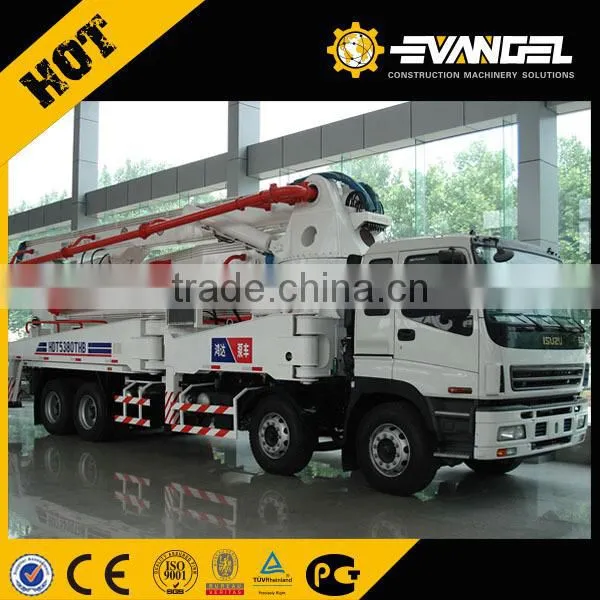

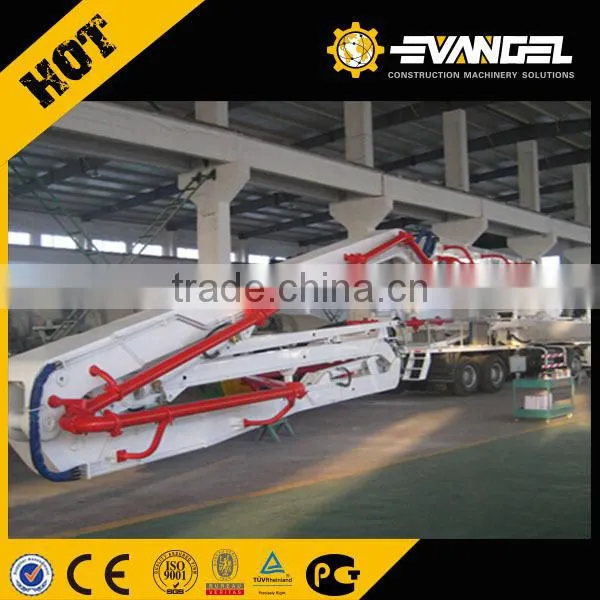

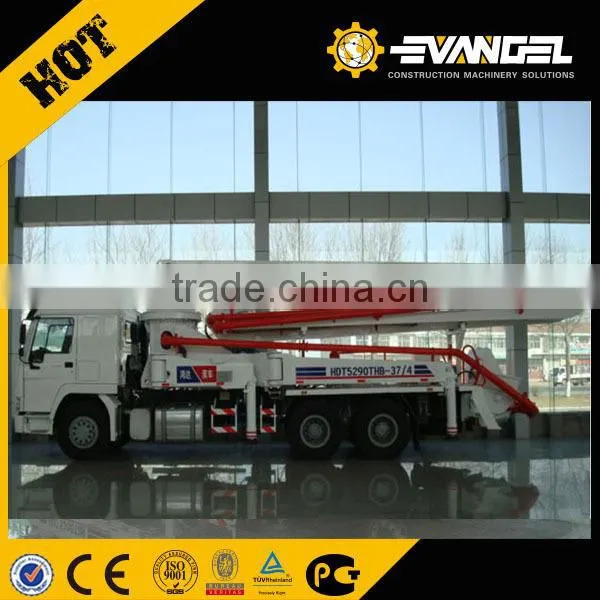

HONGDA Brand Truck Mounted Concrete Pump 52m

Name: HONGDA Brand Truck Mounted Concrete Pump 52m
Brand: HONGDA
SKU: 140713464
Availability: InStock

Shanghai Evangel Industrial Co., Ltd. Gold Verified Supplier

5Yrs

US$ 1 - 80,000 MOQ: 1 Set

Key Specifications

Condition:

New

Power Type:

Diesel

Place of Origin:

Shandong, China

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai Qingdao Ningbo Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Power Type Diesel

Place of Origin Shandong, China

Brand Name HONGDA

Model Number HDT5410THB-52/5

Power(W) 259kw

Weight 42000kg

Dimension(L*W*H) 13990mm*2500mm*4000mm

Certification ISO/3C

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

HONGDA brand Truck mounted Concrete Pump 48m & 52m

Product Description

Parameters: HONGDA brand Truck mounted Concrete Pump 52m

Truck mounted concrete pump 52m		Unit	Parameters
Truck mounted concrete pump 52m		Unit	HDT5410THB-52/5
Main technical parameters in working condition	Theoretical Productivity	m3/h	125
	Pumping Capacity Index	MPa.* m3/h	586
	Max. Concrete Pressure	Mpa	8.5
	Hopper Capacity	L	700
	Feeding Height	mm	1400
	Model of Distributing Valve		S pipe valve
	Max. operation Radius	m	47.8
	Max. operation Height	m	51.8
	Max. operation Depth	m	39.8
	open height of aggregate carrying pipe	mm	9400
	Distance between Front Landing Legs	mm	10295
	Distance between Rear Landing Legs	mm	10650
	Distance between Front and Rear Landing Legs	mm	10310
	Diameter of Delivery Pipe	mm	125
	Length of rear hose pipe	m	3
	Rotary Range of Distributing Boom		365°
	Number of Boom Sections		5
	Rotary Angle of Each Boom Section		90/180/ 180/180/270°
	Close-control Distance	m	33
	Remote-control Distance	m	200
Main technical parameters in driving condition	Max. Traveling Speed	km/h	80
	Min. Turning Radius	mm	12500
	Brake Distance	m	10
	Approach Angle		16°
	Departure Angle		11°
	Chassis Model		CYH51Y
	Chassis Model
	Wheel Base between the First and the Second Axle	mm	1800
	Wheel Base between the Second and the Third Axle	mm	5000
	Wheel Base between the Third and the Fourth Axle	mm	1350
	Front Tread	mm	2022
	Rear Tread	mm	1830
	Max. Engine Power	kw	259(2100r/min)/275 (2200r/min)
	Max Engine Torque	N.m	1460(1100r/min)/1500 (1100-1600r/min)
	Overall Dimension (length×width×height)	mm	1399025004000
	Full-load Total Weight	kg	42000
