35HP wheel tractor with front loader and backhoe attachment

Product Description

Specifications: 35HP wheel tractor with front loader and backhoe attachment

1. Chinese (YANG’DONG Brand) famous diesel engine low fuel consumption;

2. 9-inch single or double action clutch & Semi-split lifter, full hydraulic steering;

3. Gearbox is 4X(2+1) shuttle shift,8 forward gears+ 4 reverse gears;

4. Flexible and stable mesh sleeve shift;

5. Full hydraulic front-wheel steering with independent circuit;

6. Parking brake: Disc brake;

7. Rear semi-independent Power Output, with 6-spline 540/1000 r/min;

8. Planet-gear Final Transmission with small volume and large reduction ratio;

9. Rear three-point linkage, tire (front wheel+rear wheel) is 6.50-16+11.2-24

10. ROPS canopy is optional.

Parameters: 35HP wheel tractor with front loader and backhoe attachment

Model

LT354

Drive Type

4x4

Dimensions ( L×W×H)(mm)

3590x1485x1940

Wheelbase(mm)

1760

Front wheel tread(mm)

1200

Rear wheel tread(mm)

1100-1400

Mini ground clearance(mm)

280

Mini turning radius

Unilateral brake(m)

2.8



Not unilateral brake(m)

3.4

Mini Using Weight(Kg)

1640

Numbers of  gear

8F+4R

Speed range

Forward(kw/h)

2.25-29.53



Reverse(kw/h)

3.34-10.20

Engine

Model

YD4RT1



Rated power/speed(kW)/(r/min)

25.7/2200



Displacement (L)

2.043

Tires type

Front

7.50-16



Rear

11.2-28

Steering



Hydraulic front wheel steering

Lifting force( KN )

5.8

PTO

Type

Rear nonindependent



Rotation speed (r/min)

540/1000  6 Spine



Power(kw)

21.85

Tilling depth control mode

Draft adjustment, position adjustment

Front / rear counterweight(kg)

80/100

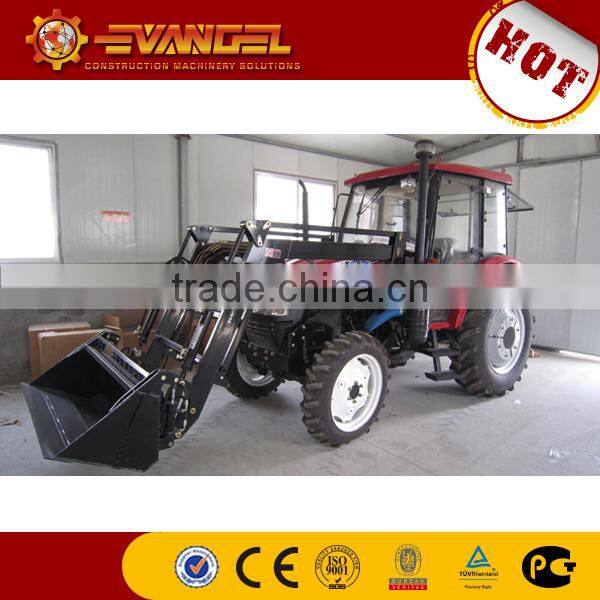

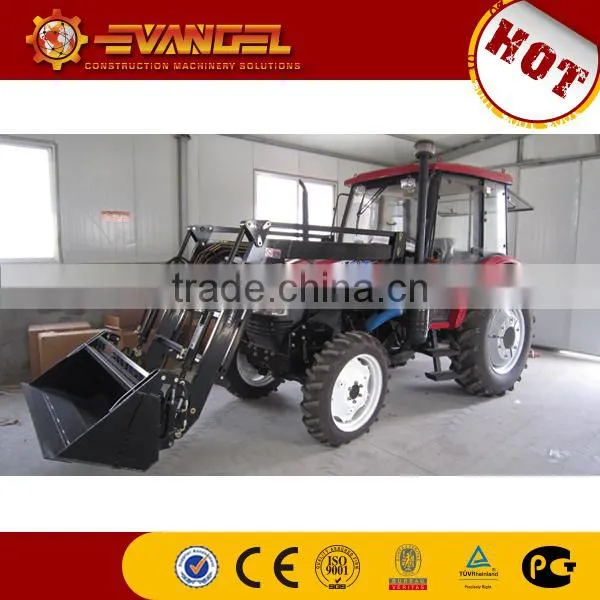

Photos: 35HP wheel tractor with front loader and backhoe attachment

35HP wheel tractor with front loader and backhoe attachment35HP wheel tractor with front loader and backhoe attachment35HP wheel tractor with front loader and backhoe attachment35HP wheel tractor with front loader and backhoe attachment
