35hp farm tractor mini tractor for sale
Specifications: 35hp farm tractor mini tractor for sale
1. Chinese (YANG’DONG Brand) famous diesel engine low fuel consumption;
2. 9-inch single or double action clutch & Semi-split lifter, full hydraulic steering;
3. Gearbox is 4X(2+1) shuttle shift,8 forward gears+ 4 reverse gears;
4. Flexible and stable mesh sleeve shift;
5. Full hydraulic front-wheel steering with independent circuit;
6. Parking brake: Disc brake;
7. Rear semi-independent Power Output, with 6-spline 540/1000 r/min;
8. Planet-gear Final Transmission with small volume and large reduction ratio;
9. Rear three-point linkage, tire (front wheel+rear wheel) is 6.50-16+11.2-24
10. ROPS canopy is optional.
Model | LT354 | |
Drive Type | 4x4 | |
Dimensions ( L×W×H)(mm) | 3590x1485x1940 | |
Wheelbase(mm) | 1760 | |
Front wheel tread(mm) | 1200 | |
Rear wheel tread(mm) | 1100-1400 | |
Mini ground clearance(mm) | 280 | |
Mini turning radius | Unilateral brake(m) | 2.8 |
| Not unilateral brake(m) | 3.4 |
Mini Using Weight(Kg) | 1640 | |
Numbers of gear | 8F+4R | |
Speed range | Forward(kw/h) | 2.25-29.53 |
| Reverse(kw/h) | 3.34-10.20 |
Engine | Model | YD4RT1 |
| Rated power/speed(kW)/(r/min) | 25.7/2200 |
| Displacement (L) | 2.043 |
Tires type | Front | 7.50-16 |
| Rear | 11.2-28 |
Steering |
| Hydraulic front wheel steering |
Lifting force( KN ) | 5.8 | |
PTO | Type | Rear nonindependent |
| Rotation speed (r/min) | 540/1000 6 Spine |
| Power(kw) | 21.85 |
Tilling depth control mode | Draft adjustment, position adjustment | |
Front / rear counterweight(kg) | 80/100 | |

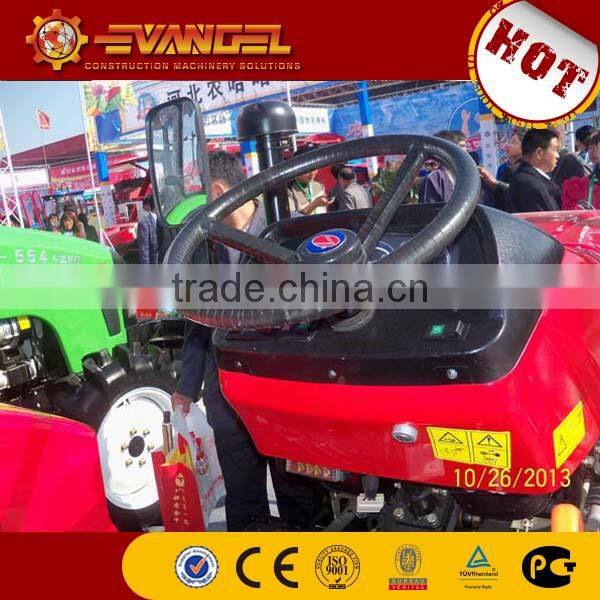

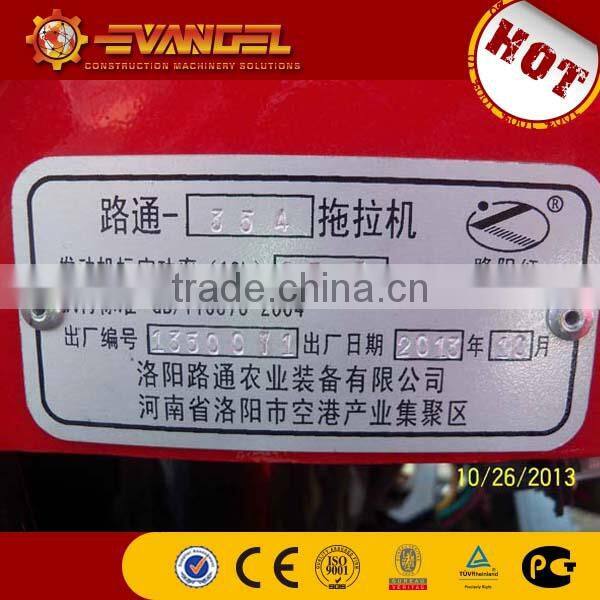

Photos: 35hp farm tractor mini tractor for sale
