Push-pull Fan

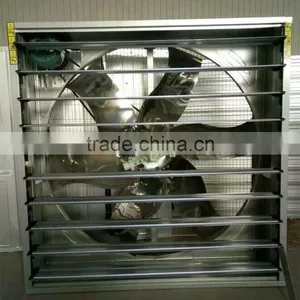

Push-pull Fan thumbnail-1
Push-pull Fan thumbnail-2
Push-pull Fan thumbnail-3
Push-pull Fan thumbnail-4
Push-pull Fan thumbnail-5
Push-pull Fan thumbnail-6
Push-pull Fan photo-1

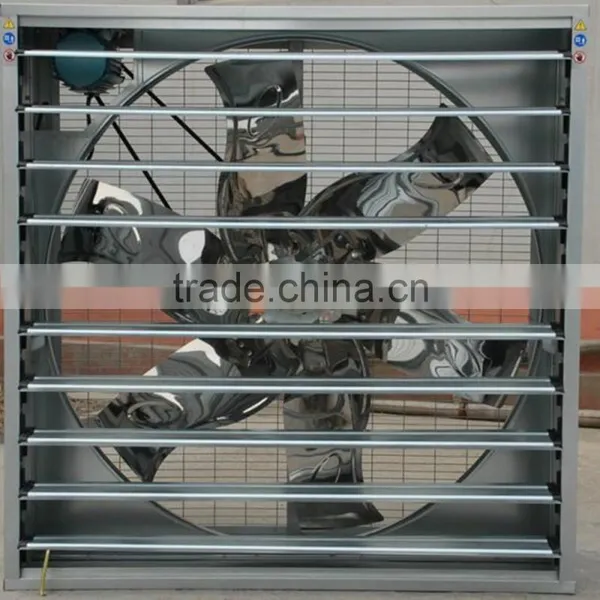

Push-pull Fan photo-2

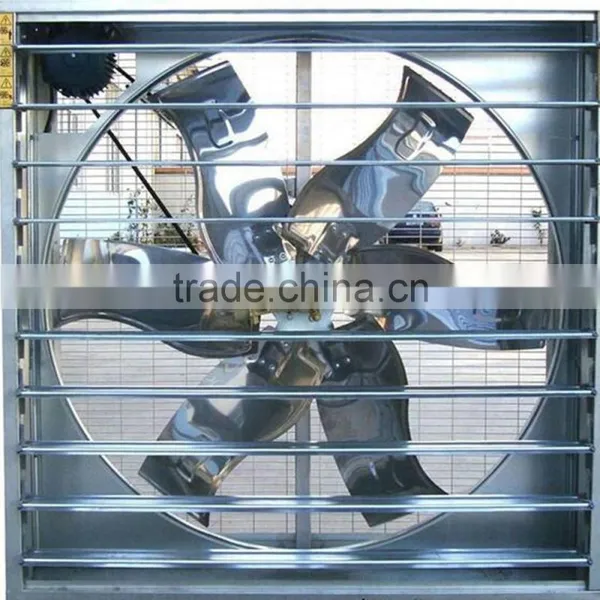

Push-pull Fan photo-3

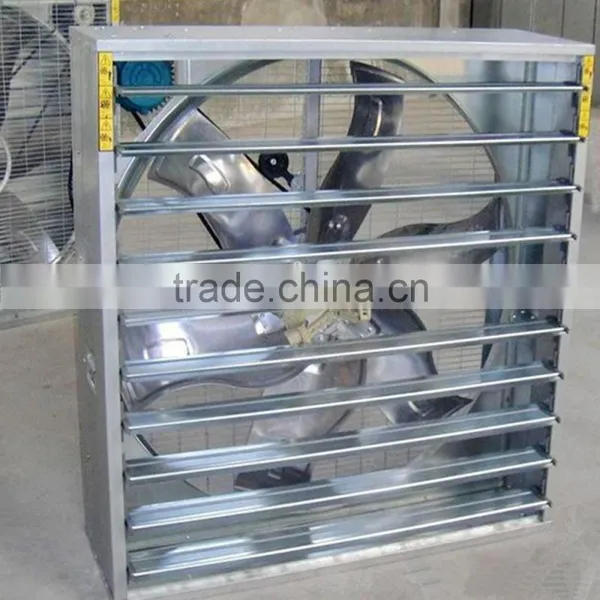

Push-pull Fan photo-4

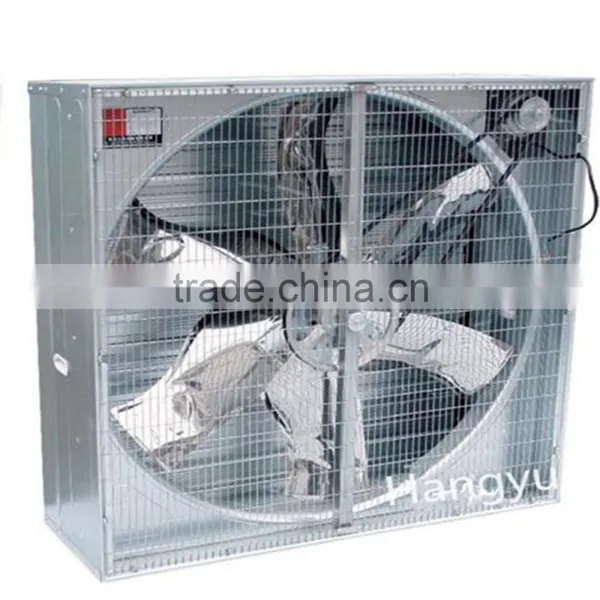

Push-pull Fan photo-5

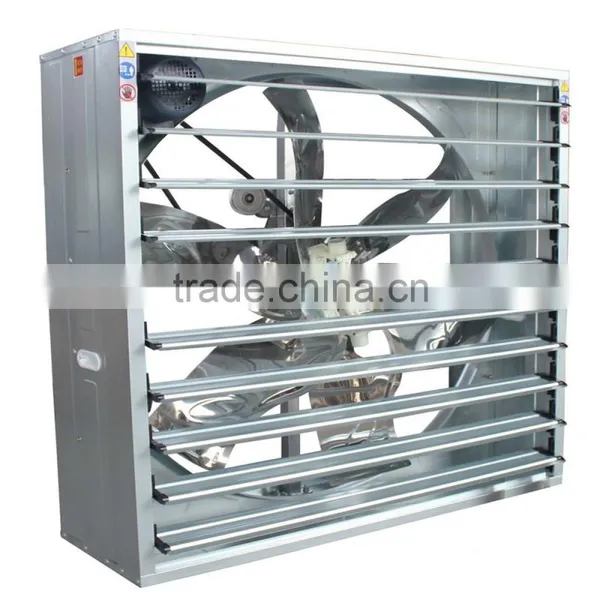

Push-pull Fan photo-6
US$ 126 - 160 MOQ: 1 Set
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Other
Contact Supplier Request Quote Chat Now
Qingzhou Hangyu Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Other
Place of Origin Shandong, China
Brand Name HANGYU
Model Number HY-T1380
Voltage 380V/50Hz
Power 1.1KW
Air Volume 55800m³/h
Speed 325rpm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

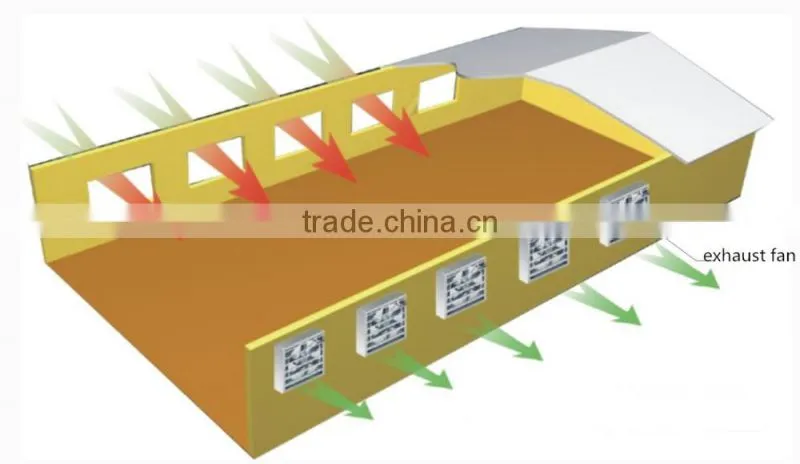

 Livestock farm: poultry house, cow house, pig house etc.

 Green house: vegetable/ flower green house.

 Workshop: textile/garments factory, or other kind of factory.

Crowded places: net bar, stores, supermarket, waiting room and so on.


Push-pull  fan
Model specifications
Height(mm)
Width(mm)
Thickness(mm)
HY-T1380
1380
1380
425
HY-T1100
1100
1100
450
HY-T1000
1000
1000
450
HY-T750
750
750
510

Main Features

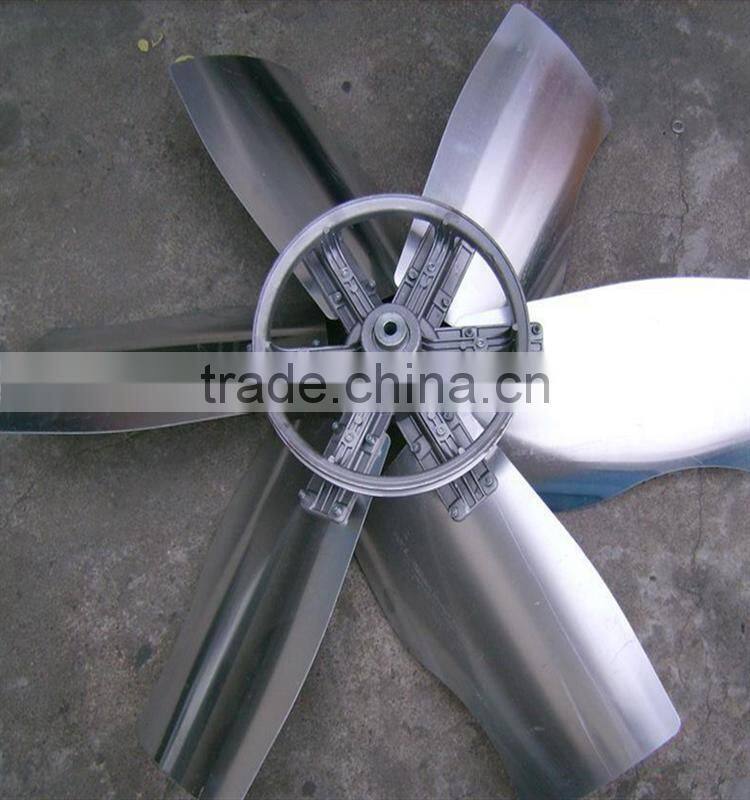

1) Blade: 3 types of material for choose: stainless steel/aluminium/galvanized sheet. Adopting a punch forming technology.

2) Frame: adopting advanced automatic manufacturing process, made of thick galvanized sheet.

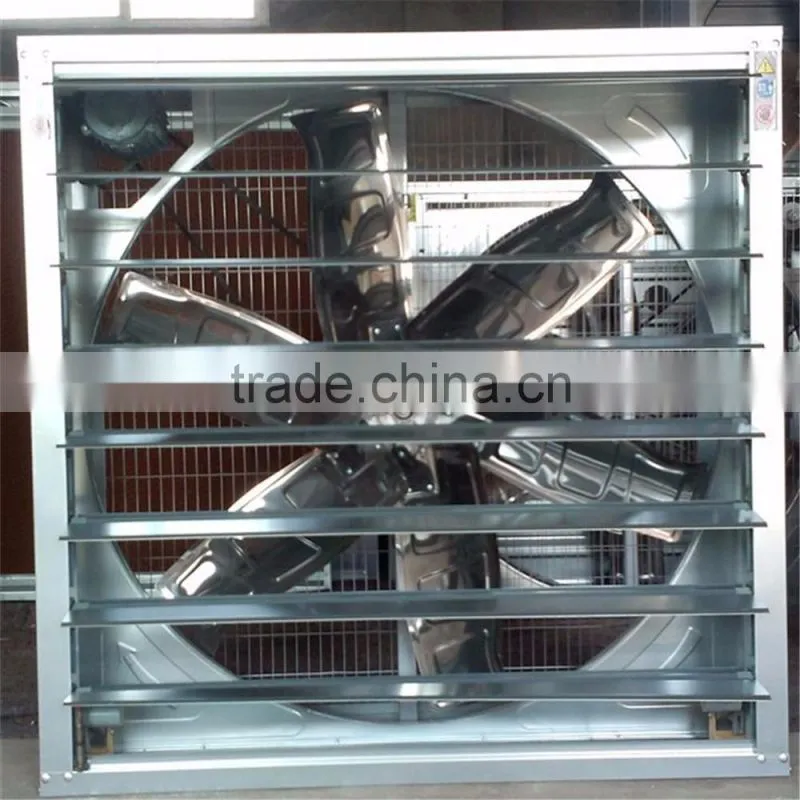

3)  Shutter: made of hot galvanized sheet with thickness 1.0 and 1.2mm, to increase the quality and the stability while working.

4) Fan belt pulley and flange: made of high aluminum-magnesuim alloy by die-casting. Light weight, low vibration. Blast-sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability.

5) Centrifugal system: adopting high-class nylon mixed with amount of fiber glass. All parts are connected by rivets. This system will be assure to open the shutter with 90 degree when the fan working.

Detailed Images




   a.large air flow
    b.no deformation
    c.never break
    d.air flow is consistent

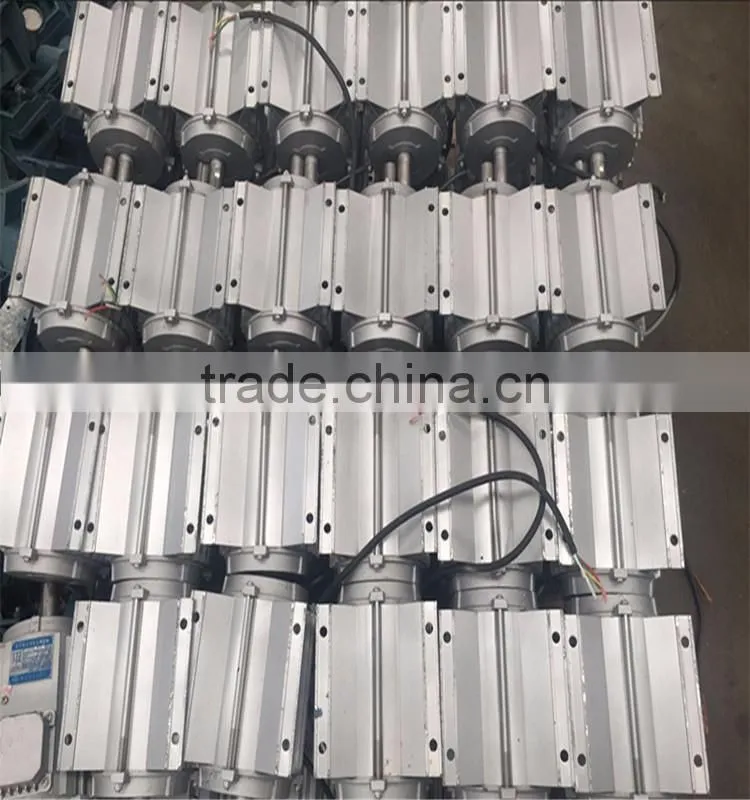

  For motors, our customers can choose Chinese famous motors,Siemens motors and ABB motors;Motors voltage,frequency and phase can be customized.Motor protection class is IP55,Insulation class is F.
The fasteners fixed on both ends of blade support are changed from traditional iron plates to aluminum magnesium alloy base, traditional welding connection to plug-in connection which has greatly reduced friction coefficient,fixed more firmly,avoided rust and improved the appearance.

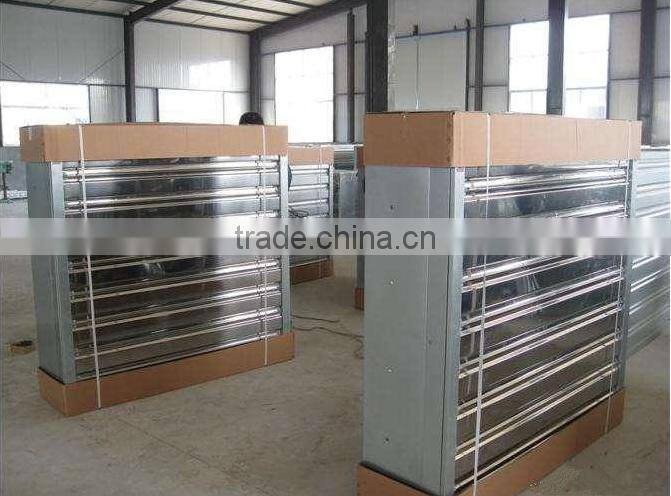

Frame is made by excellent hot galvanized sheet.Which has a longer lifespan and strong anti-oxidation.Frame can be made of 304 or 430 stainless steel.
Packing & Delivery
Packaging
Size
1380mm(L) * 1380mm (W) * 425mm(T)
Weight
75-85KG



Packaging Details


According to customer requirements for packaging
