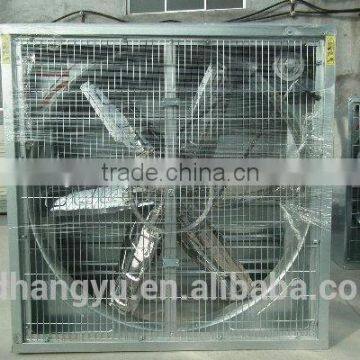

Top Quality Wall Mounted Blower Ventilation Fans From Hangyu Low Price

Qingzhou Hangyu Machinery Co., Ltd.
Top Quality Wall Mounted Blower Ventilation Fans From Hangyu Low Price thumbnail-1
Top Quality Wall Mounted Blower Ventilation Fans From Hangyu Low Price thumbnail-2
Top Quality Wall Mounted Blower Ventilation Fans From Hangyu Low Price thumbnail-3
Top Quality Wall Mounted Blower Ventilation Fans From Hangyu Low Price thumbnail-4
Top Quality Wall Mounted Blower Ventilation Fans From Hangyu Low Price thumbnail-5
Top Quality Wall Mounted Blower Ventilation Fans From Hangyu Low Price thumbnail-6
Top Quality Wall Mounted Blower Ventilation Fans From Hangyu Low Price photo-1
Top Quality Wall Mounted Blower Ventilation Fans From Hangyu Low Price photo-2
Top Quality Wall Mounted Blower Ventilation Fans From Hangyu Low Price photo-3
Top Quality Wall Mounted Blower Ventilation Fans From Hangyu Low Price photo-4
Top Quality Wall Mounted Blower Ventilation Fans From Hangyu Low Price photo-5
Top Quality Wall Mounted Blower Ventilation Fans From Hangyu Low Price photo-6
US$ 112 - 129 MOQ: 1 Set
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Stainless Steel
Place of Origin Shandong, China
Brand Name Hang Yu
Model Number HY-1100
Voltage 380V
Power 0.75kw
Air Volume 5700m3/h
Speed 1400rpm
Certification CCC, CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

     1. almost all the necessary cooling or ventilation of the premises can be used, such as shopping malls, supermarkets, offices, hotels, hospitals, railway stations, exhibition hall, dance hall, auditorium, conference rooms, schools, factories, workshops and other places.

     2. suitable for high temperature or smell of industrial workshop, such as factory, textile factory, electronics factory, machinery factory, etc., also can be used to post cooling or overall cooling.
Heavy hammer fan
Model specifications
Drive
Blades Diameter
(mm)
Motor rotational speed
(rpm)
Total pressure
(Pa)
Noise decibels
(dB)
HY-600
Direct
500
1400
55
≤70
HY-800
Belt
720
1400
60
≤65
HY-900
Belt
750
1400
65
≤65
HY-1000
Belt
900
1400
70
≤65
HY-1060
Belt
960
1400
70
≤65
HY-1100
   Belt
1000
1400
70
≤64
HY-1220
Belt
1100
1400
73
≤64
HY-1380
Belt
1270
1400
56
≤64
HY-1530
Belt
1400
1400
60
≤64

Main Features

1. The blades are all made of stainless steel materials, by krupp stainless steel stamping forming, no dust, beautiful and durable;

2. The machine adopts pure copper core, protection grade IP55, insulation class F.

3. The fan belt is made from high strength aluminium magnesium alloy die-casting, reduce weight, the impeller blade is complete, high corrosion resistance. Reinforced pulley design. Eliminate internal stress, improve its rigidity and stability, not broken.

4. The fan bearing adopts double row bearing is special waterproof design, can't enter the water. High strength, low noise, no maintenance, long service life.

5. Weight high light nylon turn heavy hammer open institutions, guarantee the shutter open, close the flexible.

6. The belt adopts three guinness domestic and imported belt, ensure the service life, maintenance free..

Detailed Image

Machine Parts

Name: The motor

Original: China

Speed is fast, high efficiency and energy saving.

Machine Parts

Name: Blade
Original: China
6 pieces stainless steel blades and  the fan has  all passed the experiment of homeostasis with big air volume，without deformation，no breaking，attractive and du rable.

Machine Parts

Name: Into the wind hood
Original: china
Intake of high efficiency.

Machine Parts

Name: Drop Hammer
Original: china
Using high strength nylon swung drop hammer opening device to ensure the shutters opening and closing flexible.
