380v/220v CE Certification Poultry House Exhaust Fan

Qingzhou Hangyu Machinery Co., Ltd.
380v/220v CE Certification Poultry House Exhaust Fan thumbnail-1
380v/220v CE Certification Poultry House Exhaust Fan thumbnail-2
380v/220v CE Certification Poultry House Exhaust Fan thumbnail-3
380v/220v CE Certification Poultry House Exhaust Fan thumbnail-4
380v/220v CE Certification Poultry House Exhaust Fan thumbnail-5
380v/220v CE Certification Poultry House Exhaust Fan thumbnail-6
380v/220v CE Certification Poultry House Exhaust Fan photo-1
380v/220v CE Certification Poultry House Exhaust Fan photo-2
380v/220v CE Certification Poultry House Exhaust Fan photo-3
380v/220v CE Certification Poultry House Exhaust Fan photo-4
380v/220v CE Certification Poultry House Exhaust Fan photo-5
380v/220v CE Certification Poultry House Exhaust Fan photo-6
US$ 110 - 150 MOQ: 1 Set
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Stainless Steel
Place of Origin Shandong, China
Brand Name HANGYU
Model Number HY-1380
Voltage 380V/50Hz
Power 1.1kw
Air Volume 44000m³/h
Speed 439rpm
Certification CCC, CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Heavy  hammer  fan
Model specifications

Drive
Air flow (m³/h)
Height(mm)
Width(mm)
Thickness(mm)
Input power
(w)
Blades rotational speed
(rpm)
HY-620
Direct
5700
620
620
450
370
1400
HY-750
Direct
10600
750
750
450
370
960
HY-780
Direct
23000
780
780
420
750
960
HY-780
Belt
18000
780
780
400
370
650
HY-830
Belt
20000
830
830
400
370
660
HY-900
Belt
22000
900
900
400
370
630
HY-1000
Belt
25000
1000
1000
400
750
610
HY-1060
Belt
29000
1060
1060
400
750
600
HY-1100
Belt
32500
1100
1100
400
750
600
HY-1220
Belt
38000
1220
1200
400
750
460
HY-1380
Belt
44000
1380
1380
400
1100
439
HY-1530
Belt
55800
1530
1530
400
1500
325

Main Features

1) Motor -drive blades directly type avoid the frequent problem occurred by belt.Makes a high efficiency,low fault rate.

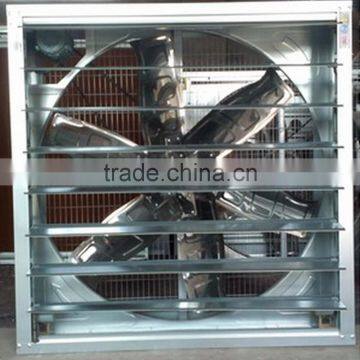

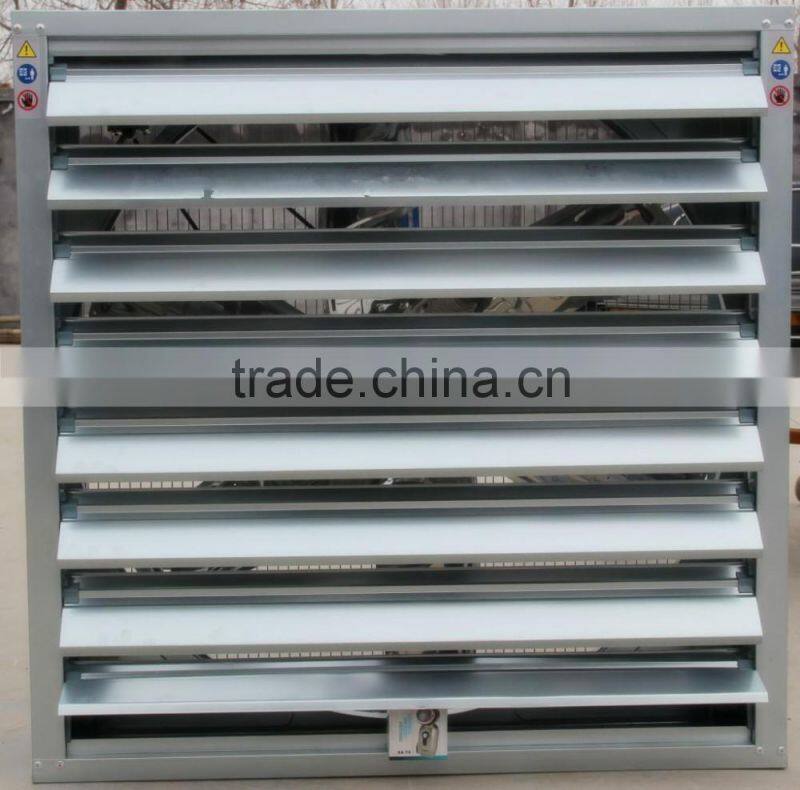

2) Shutter are improved to 11 pcs in small size from old 8 pcs big type,which facilitate the shutters' opening and closing.

3) New double layers shutter fixed clips get a firmer installation.

4) Adopt updated double upright colum design,together with thickened hot-dip galvanized motor fixed plate,which achieve the excellent stability and outstanding performance of motor with blades.

5) Equipped with Special  High-efficiency,energy-saving motor.

Detailed Images

Machine Parts

Name: Fan belt pulley

Fan belt pulley is made of high strength aluminum-magnesium alloy by diecasting which reduce the weight of propeller,high corrosion resistance.


Machine Parts

Name: Fan blade

Fan blade is made of stainless steel by punch forming.No dust,attractive and durable.Special blades shape design ensure large air volume,no deformation,no broken,keep air volume same all the way.

Machine Parts

Name: Motor

Motor voltage and frequency can be customized.

Main Features

Name: Fan bearing

Fan bearing adopts imported double-row bearing with special waterproof design,high strength,low noise,maintenance free and long service life.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Online prompt reply

* Engineers available to service machinery overseas.
