Butterfly Cone Fan

Qingzhou Hangyu Machinery Co., Ltd.
Butterfly Cone Fan thumbnail-1
Butterfly Cone Fan thumbnail-2
Butterfly Cone Fan thumbnail-3
Butterfly Cone Fan thumbnail-4
Butterfly Cone Fan thumbnail-5
Butterfly Cone Fan thumbnail-6
Butterfly Cone Fan photo-1
Butterfly Cone Fan photo-2
Butterfly Cone Fan photo-3
Butterfly Cone Fan photo-4
Butterfly Cone Fan photo-5
Butterfly Cone Fan photo-6
US$ 100 - 180 MOQ: 1 Set
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Other, customized
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Other, customized
Place of Origin Shandong, China
Brand Name HANGYU
Model Number HY-D1380
Voltage 380V/50Hz
Power 1100w
Air Volume 51020m³/h
Speed 439rpm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

 Livestock farm: poultry house, cow house, pig house etc.

 Green house: vegetable/ flower green house.

 Workshop: textile/garments factory, or other kind of factory.

Crowded places: net bar, stores, supermarket, waiting room and so on.

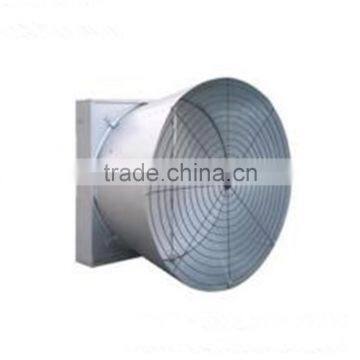

 Butterfly cone fan
Model specifications
Height(mm)
Width(mm)
Thickness(mm)
HY-D1000
1000
1000
1180
HY-D1100
1100
1100
1150
HY-D1380
1380
1380
1300

Main Features

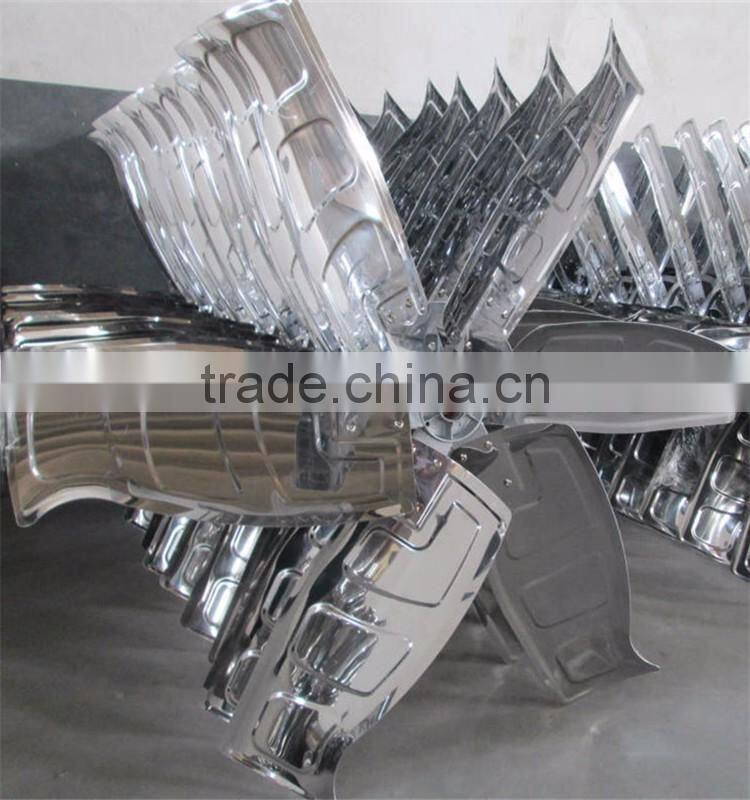

1) Blade: 3 types of material for choose: stainless steel/aluminium/galvanized sheet. Adopting a punch forming technology.

2) Frame: adopting advanced automatic manufacturing process, made of thick galvanized sheet.

3)  Shutter: made of hot galvanized sheet with thickness 1.0 and 1.2mm, to increase the quality and the stability while working.

4) Fan belt pulley and flange: made of high aluminum-magnesuim alloy by die-casting. Light weight, low vibration. Blast-sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability.

5) Centrifugal system: adopting high-class nylon mixed with amount of fiber glass. All parts are connected by rivets. This system will be assure to open the shutter with 90 degree when the fan working.

Detailed Images




   a.large air flow
    b.no deformation
    c.never break
    d.air flow is consistent

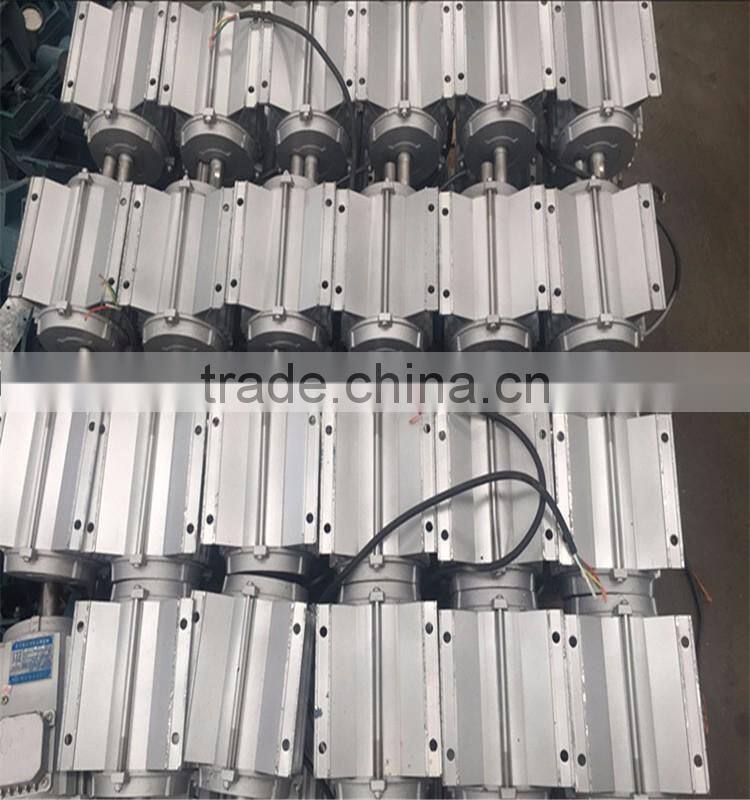

  For motors, our customers can choose Chinese famous motors,Siemens motors and ABB motors;Motors voltage,frequency and phase can be customized.Motor protection class is IP55,Insulation class is F.
The fasteners fixed on both ends of blade support are changed from traditional iron plates to aluminum magnesium alloy base, traditional welding connection to plug-in connection which has greatly reduced friction coefficient,fixed more firmly,avoided rust and improved the appearance.

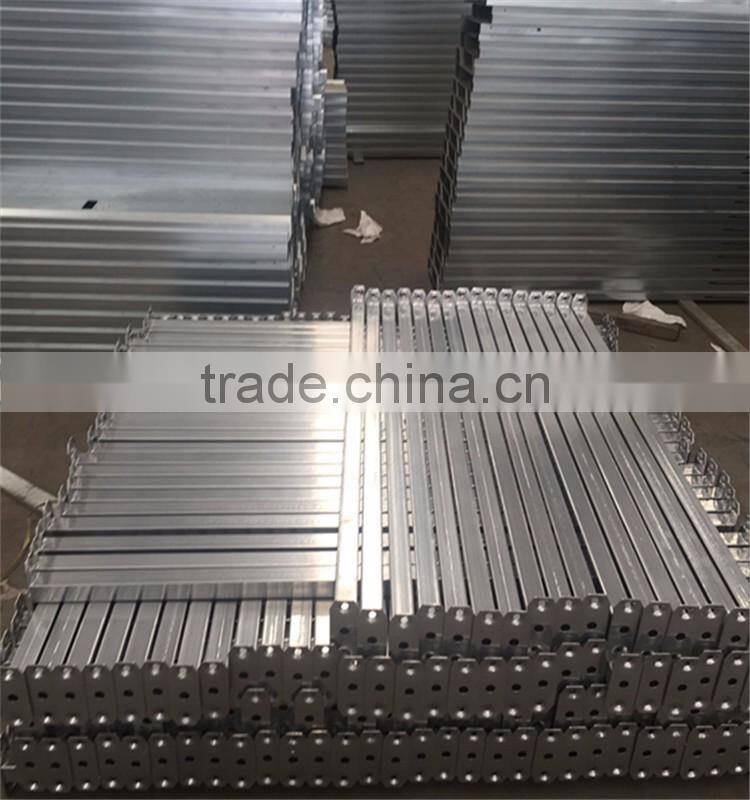

Frame is made by excellent hot galvanized sheet.Which has a longer lifespan and strong anti-oxidation.Frame can be made of 304 or 430 stainless steel.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* There was a problem processing in a timely manner

* Engineers available to service machinery overseas.

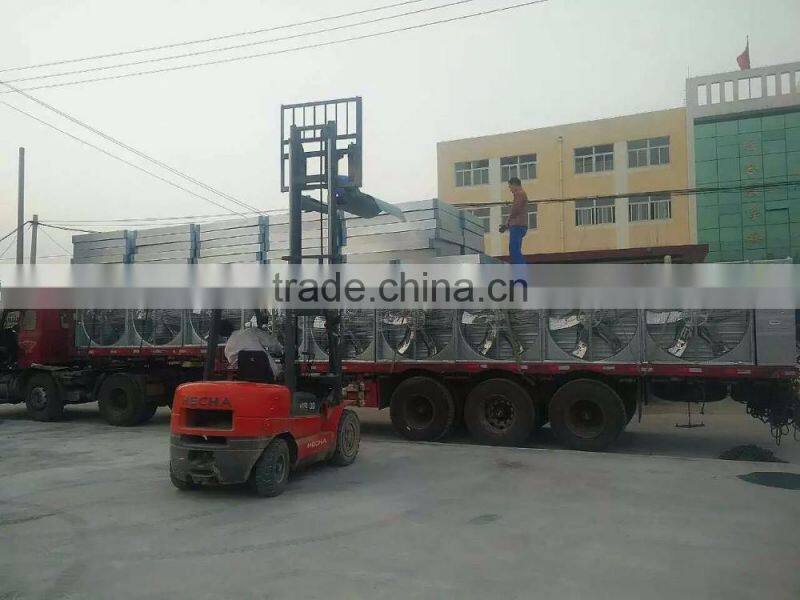

Packing & Delivery
Packaging
Size
1380mm(L)*1380mm(W)*1300mm(T)



Packaging Details


According to customer requirements for packaging
Related Products

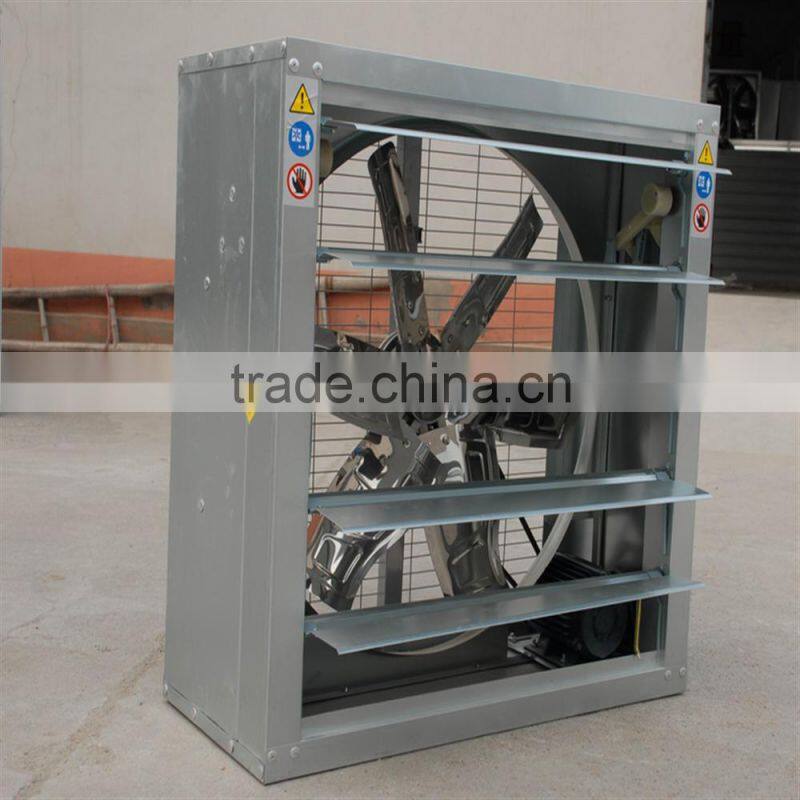

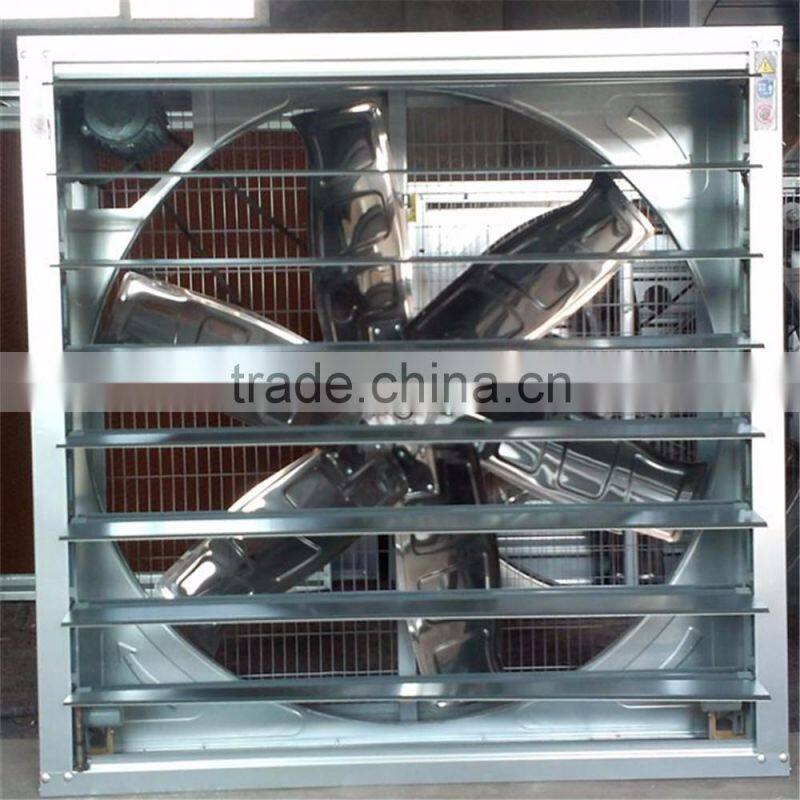

     Heavy hammer exhaust fan
