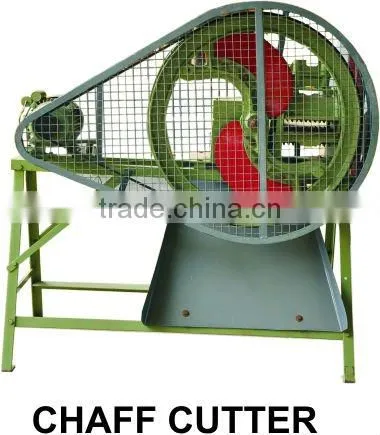

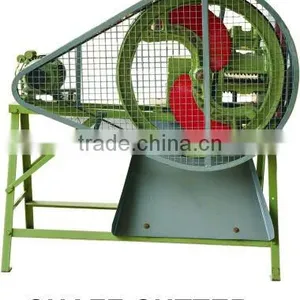

CHAFF CUTTER 1.5 HP
The CHAFF CUTTER is working with single phase electrical motor or Diesel Engine. 1 Hp, 2 Hp and 3 Hp and 5 HP models available. CHAFF CUTTERS are very useful for Cattle Farm and Vermi compost organic manure manufacturing units. Easy to maintain and will work for a long time. By using the CHAFF CUTTER for the Cattle Feed no wastage is produced. We save 70% money and 100 % utility and the payback period is 3 months only. This machine is very economical.
CHAFF CUTTER SYSTEM DETAILS:
Power from the motor is transmitted to the cutting blades assembly. Cutting blades assembly consists of 2 blades which are connected in a circular frame. The blades are rotated perpendicular to the feed so as to perform the cutting operation.
MAINTENANCE INSTRUCTION:
Fill the gear box with 20W 40 oil. Up to level indicated The revolving teeth rollers, 4 bushes at 2 sides are to be lubricated daily before starting the machine.
Technical Speifications:
Overall Dimension (LxWxH) mm-1300 x 900 x 1400
Blade Rotation Speed RPM – 1400 RPM
Blade Size (mm) 88 40x 17 x 2.35
No. of Blades 3 nos
Feeding Chute mm. 205 x 110
