ASTM Steel Grating Riveted Grating Stainless Steel Grating
ASTM Steel Grating Riveted Grating

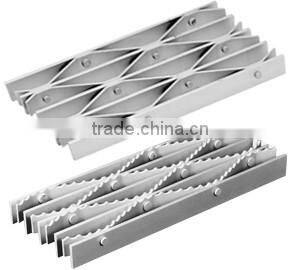

Riveted Gratings are manufactured by coldpress riveting straight bearing bars to crimped rectangular flat bars.The oldest form of grating, riveted products offer superior resistance to impact, fatigue and repetitive loads.
Materials
Riveted gratings are available in carbon steel, 6000 series aluminum, and 300 series stainless steels.These products are manufactured with bearing bars spaced either 1-1/8" or 3/4" apart and the standard rivet spacing is 7 inches on center.Optional close rivet spacing of 3-1/2" on center is also available.
Serrated Surface
The standard method of manufacturing serrated riveted grating is to serrate the crimped cross member.When assembled, these cross members are raised slightly above the top surface of the bearing bars to provide a superior unidirectional slip-resistant surface.
If your application is particularly prone to unsafe walking conditions, consider specifying "100% Serrated" grating where both the bearing bars and cross members are provided with serrations.
