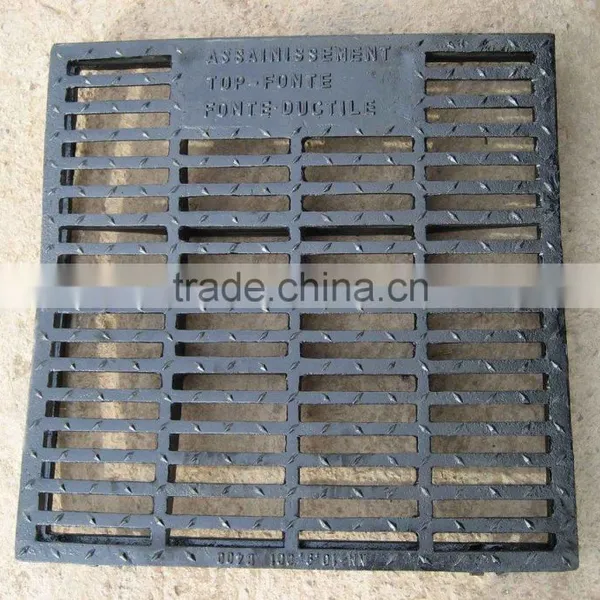

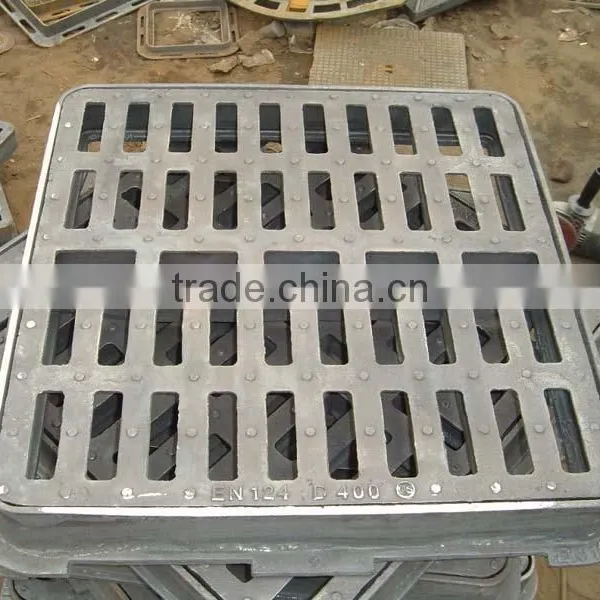

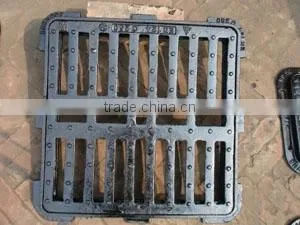

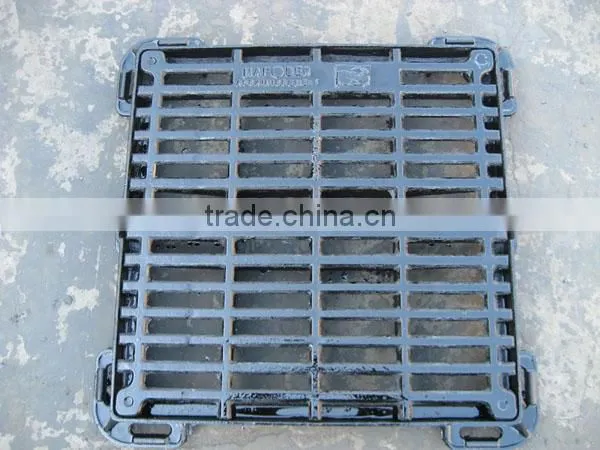

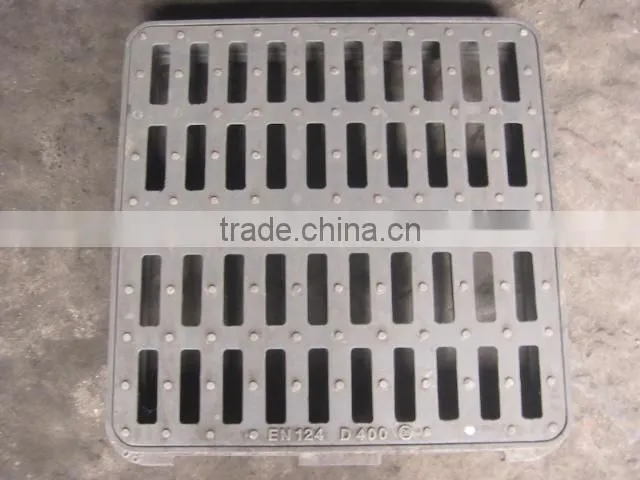

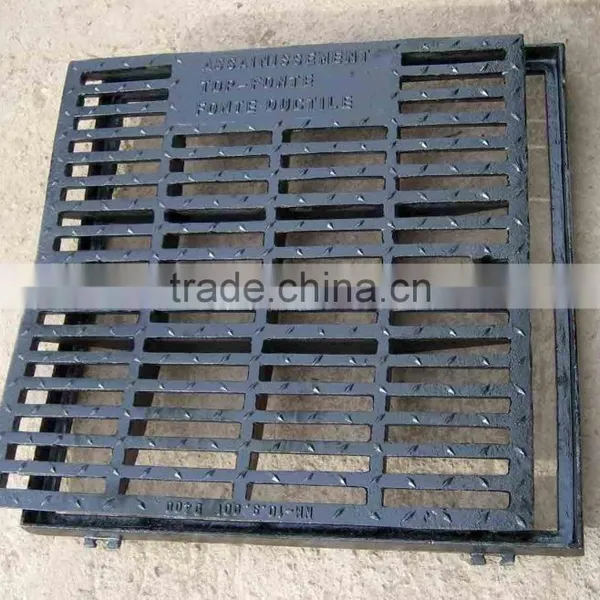

Help CenterChristmas Sales OEM Manufacturer Made Grate,cast Iron Grate,grating,cast Iron Grating,manhole Grating
Related Products
-
Urban Construction Usage Cast Iron GratingUS$ 1 - 1,030MOQ: 20 Tons -
Gratinggrid,cast Iron Grate,cast Iron Grating,US$ 1 - 970MOQ: 20 Tons
-
Manhole Cover,gully Grating,cast Iron Grate,cast Iron GridUS$ 1 - 970MOQ: 20 Tons
-
Grating,grates,drainage GratesUS$ 1 - 1,020MOQ: 20 Tons
-
Water Funnel, Water Box, Surface Box, Cast Iron GridUS$ 1 - 1,020MOQ: 20 Tons
Size: 800*800
Packing: wooden pallet
Paint: black bituminous paint
paint: |
Bituminous paint |
packing: |
wooden pallet (normal) |
material: (ductile cast iron ) | |
|
Tensile strength: 500 Mpa |
|
Yield strees: 320 Mpa |
|
Elongation rate:7 % |
|
Hardness: HBS170~230 |
Standard |
EN124, UNIEN124, BSEN124 |
Ductile Iron Manhole Cover :
1. Class: A15, B125, C250, D400, E600 and F900.
2. Design Standard: BS EN124:1994.
3. Material grade: GGG500/7.
4. Test: testing before shipping for the smooth surface and loading.
5. Coating: coating black bitumen, or coating as customers' requirements.
6. Certificate: BSI Kite Mark, SGS, ISO9001,BV……
Available Design:
1. Ductile Iron
2. Hinge Type
3. Single seal / Double seal
4. Lock
5. Closed key hole
6. Recessed type
7. Two lifting Key holes
8. Double triangular
9. Cut-corner Design
Material of Manhole Cover :
|
Ductile Iron Manhole Cover and Grating |
EN124:1994 |
Material: GGG500-7 |
Class |
Application |
Dimension (Frame mm) |
A15 |
Pedestrians, Pedal Cyclists |
Dia760 |
B125 |
Footpath, Pedestrians, Car parks |
290*290, dia-800 ... |
C250 |
Kerbside channel of roads |
300*300,dia-800*800 |
D400 |
Road, hard shoulders etc. |
300*300,dia-800*800 |
E600 |
Docks, aircraft pavements etc. |
as per client’s demands |
F900 |
Aircraft pavements etc. |
as per your demands |
