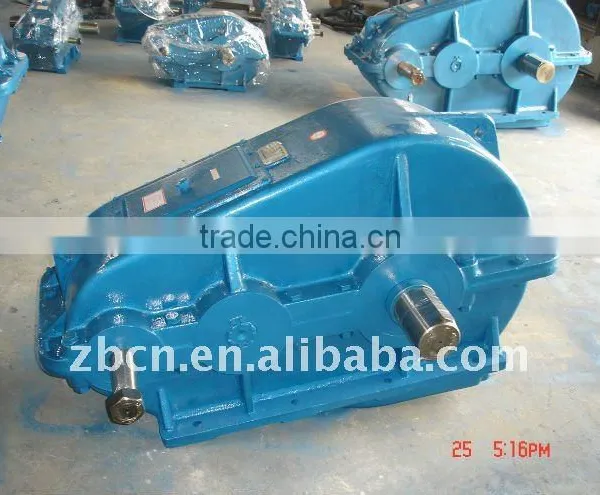

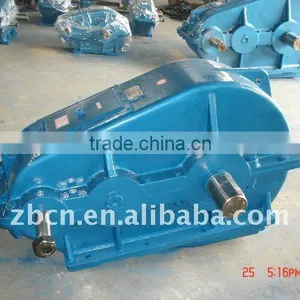

ZQ,JZQ series gear reducer , gearbox

Specifications

Smooth running, low noise. Small Cubage, light weight, long working-life and high load-bearing capacity. ISO9001-2008 standard

Gear reducer introduced: gear reducer is external involute helical gears reducer, which is based on national professional standards ZBJ19004.
Gear reducer are widely used in metallurgy, mining, lifting, transportation, cement, construction, chemicals, textiles , printing and dyeing, pharmaceutical and other fields. The following shows scope of application of gear reducer:
1.Speed of High-speed Shaft is less than 1500r/min.
2.Speed of Circle of rotation gear is less than 20m/second.
3.The working environment temperature is 40-45 °C. If it less than 0 °C, lubricating oil should be preheated heating temperature more than 0 °C before working.
This reducer can be used for operation of opposite and negative direction, and following is its character:
1.Gear using high-frequency surface hardening quenching treatment, tooth surface hardness of HRC45-50, high accuracy and good osculation.
2.High transmission rate: single-stage more than 96.5%, dual-stage more than 93 %, three more than 90 %.
3.Smooth running, low noise.
4.Small Cubage, light weight, long working-life and high load-bearing capacity.
5.Easy to dismantle, and easy to install.

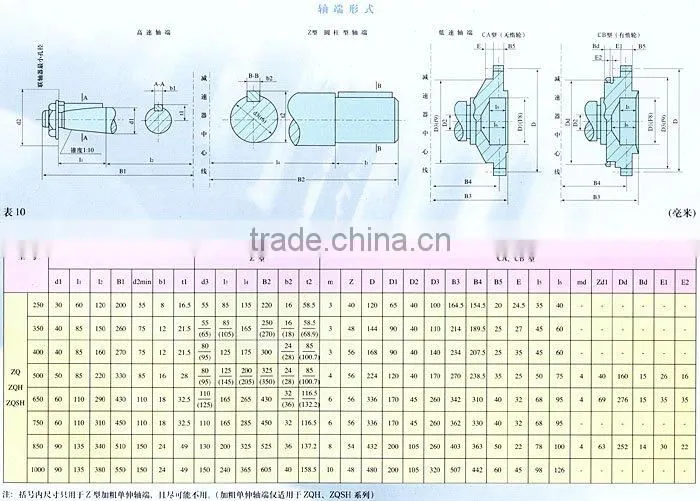

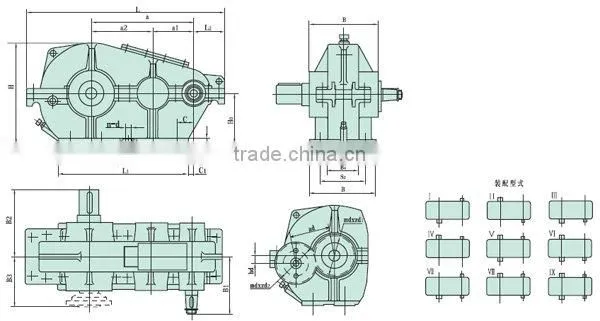

6.Thr reducer being applied to right to and reverse direction 9 transmission ratio, 9 installing mode and 3 low-speed axle edge type.

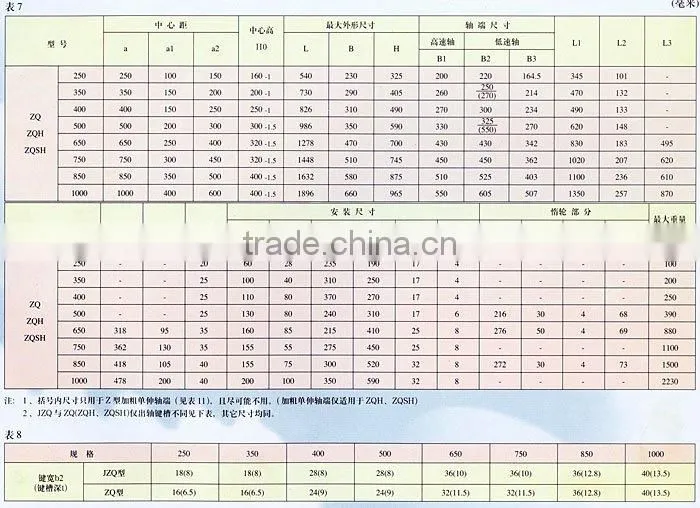

ZQ250 ZQ350 ZQ400 ZQ500 ZQ650 ZQ750 ZQ850 ZQ1000

JZQ250 JZQ350 JZQ400 JZQ500 JZQ650 JZQ750 JZQ850 JZQ1000

PM250 PM350 PM400 PM500 PM650 PM750 PM850 PM1000



ratio:8.23 /10.35 /12.64/ 15.75/ 20.49/ 23.34/ 31.5 /40.17 /48.57
