Stainless Steel screens mesh
Material: Low-Carbon Iron Wire, Low-Carbon steel wire, stainless steel wire etc.
Weaving type:

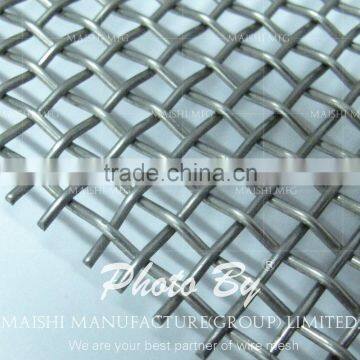

1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
Woven Filter Screen Type:
We can design various types of products according to our customers needs, you can find any products here, for special designs please send your sample to us.

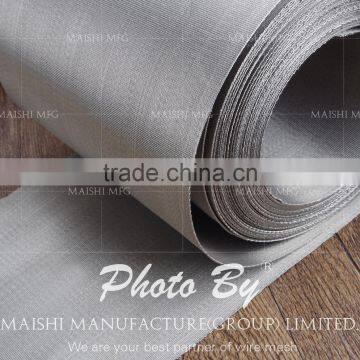

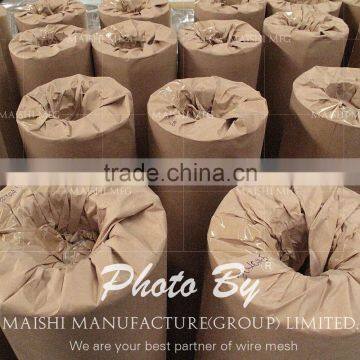

1.Mesh Rolls 2.Mesh Belts 3.Mesh Sheets 4.Mesh Ribbons 5.Mesh Tubes 6.Sintered mesh
Payment
100% T/T in advance if order amount less than USD 10000.00, 30%paid in advance and 70% paid before shipment if order amount more than USD 10000.00.
L/C payment is workable.
Any other payment term can be negotiate
