Home > Products > Mesh Disc/Sheet/Cylinder (Deep Processing of Mesh) > Flour sieving mesh
Flour sieving mesh
- 5000 Square Meter / Square Meters per Month
- Xingang Tianjin
- T/T Credit Card
Product Details
Place of Origin: | Hebei, China | Brand Name: | MAISHI | Model Number: | MS88 |
Usage: | Solid Filter | Type: | Other, woven wire mesh | Material: | Other, stainless steel wire |
Hole Shape: | Square | Filter Rating: | 0.01 ~ 1000 | Thickness: | 53-1100um Filter Mesh |
Length: | 30m or 50m or at customer's request, 30m/roll, 50m/roll at customer request | Width: | 0.6m-3.65m, 1m, 1.2m, 1.5m, 2m, at your reques |
Product Description
Flour sieving mesh
Stainless filter and gauze available in Grade 304, 316, 316L.
316 stainless steel filter offers a high level of protection against corrosion. We can offer the higher quality grade 316 stainless steel (sometimes called Marine Grade).
Grade 316 stainless steel contains molybdenum, which is added to boost its resistance to corrosion and should be selected if the material is to be used in a salt water or coastal environment.
Flour sieving mesh
Material: SS304 SS316 SS316L.
Weave: Plain Weave, twill weave, dutch weave.
Features:
High tension: Much higher tension than common polyester mesh and smooth tension;
Super precision: Uniform wire diameter and aperture with extremely low difference;
Low elongation: Very small elongation of wire mesh at high tension;
High flexibility: The wire mesh will not lose elasticity at extreme tension;
High corrosion resistance: The excellent corrosion resistance of stainless steel wire exceeds polyester fiber;
Non-electrostatic: To avoid affects of non-electrostatic for print and ensure the safety of printing;
Good heat-melting resistance: Special features of stainless wire mesh. Suitable for heat-melting ink;
Good solvent resistance: To avoid the affects of any solvents to wire mesh and to ensure the safety of print screen.
Flour sieving mesh types:
1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
Mesh count view:

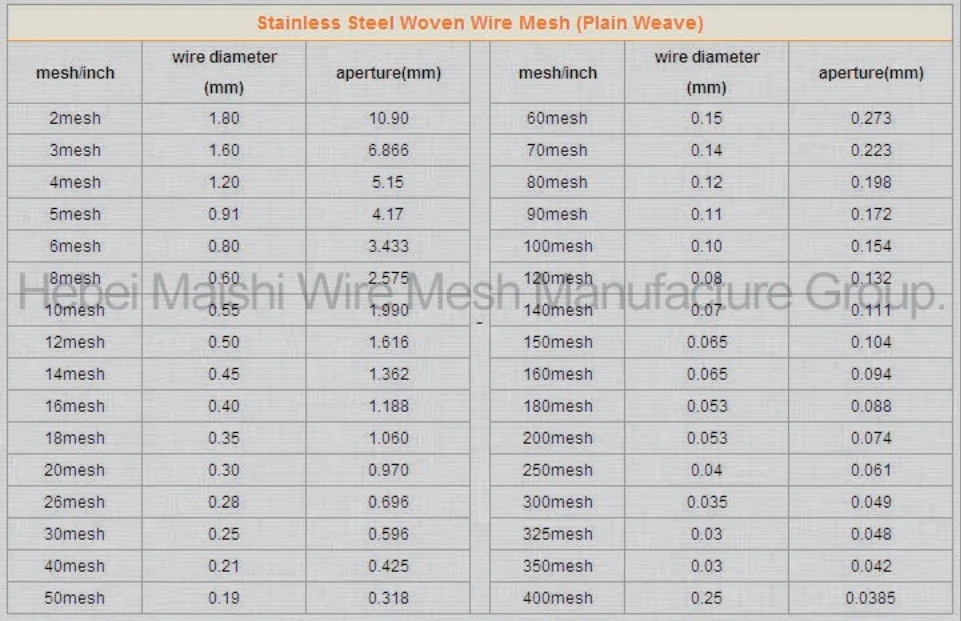

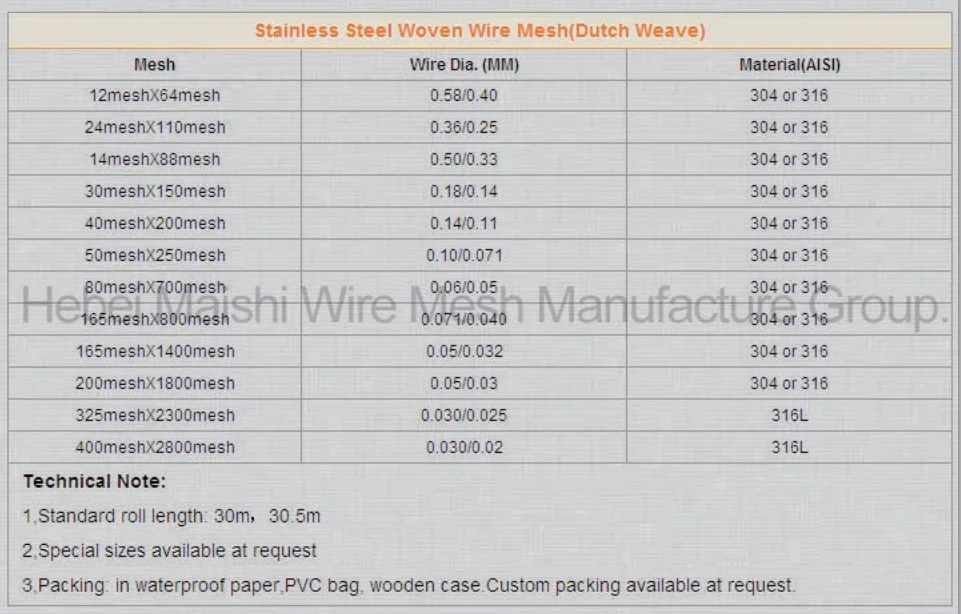

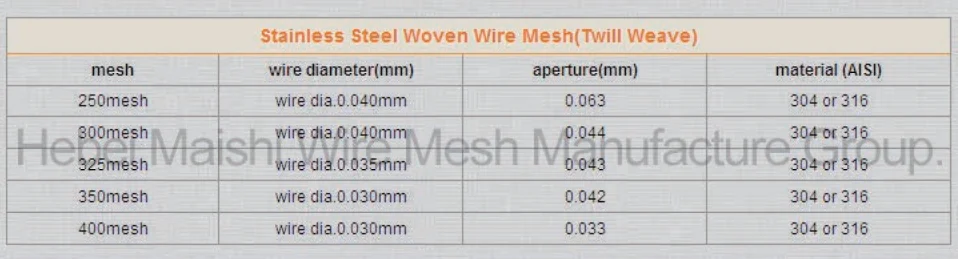

Flour sieving mesh specifications:
Please kindly check the normal specifications of mesh water filter as below:
Mesh test:
1.Mesh count inspect
2.Thickness inspect
3.Thread dia & hole inspect
4.Tensile strengh test
5.Surface tension test
Quality control:
1.Raw material check
2.Material preparation
3.Finish dia.warping beam
4.Mesh wearing
5.surface check
Flour sieving mesh application:
Factory Show:
Hebei Maishi Wire Mesh Manufacture Factory is one of the top manufacturers and exporters of screen mesh.Our company was connected with production of metal wire mesh since 1986 in China. The machinery and apparatus used in production process fully based on the high computer technology, gaining TSE (Chinese Standard institution) certificate and ISO9001:2000.
All of our wire mesh have been exported to Europe, U.S.A, Australia, Middle East, Southeast Asia, Africa, South America and other parts or the world with the following advantages:
26 sets stainless steel high mesh count looms and 50 sets P7150 Sulzer looms.
Dedicated and experienced weavers.
Consistent strictly quality control of products.
On-time delivery.
We have 15 R&D technical staffs,with more than 10 years experience.
80% repeat customers.
Reasonable claim refund system.
Package:
Inside the roll with "paper tube" to reduce the pressure while loading; Then wrapped with "plastic film" aswell as the "woven bag" on the finished roll, Final loaded in the strong wooden case.
Your package request is available.
Contact Us
- Hebei Maishi Wire Mesh Manufacture Co., Ltd.
- Contact nameAnna Wang
- Phone0086-311-89277939
- AddressNo.368, North Youyi Road ,Shijiazhuang ,Hebei Shijiazhuang,Hebei
