Injection Moulding Machine,plastic Injection Mould Machine

Injection Moulding Machine,plastic Injection Mould Machine thumbnail-1
Injection Moulding Machine,plastic Injection Mould Machine photo-1
US$ 16,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
JOYSUN
Model Number:
JSE
Contact Supplier Request Quote Chat Now
Shanghai Joysun Machinery & Electric Equipment Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name JOYSUN
Model Number JSE
Shaping Mode Preform Mould
Product Material Plastic
Product Vehicle Mould

Specifications

plastic injection mould machine
CE certification
Clamping force 80-3000T
high mix and plasticize quality

Injection Unit

1. Screw with optimum design enjoys features of good plasticity, high efficiency;

2. Big L/D ratio of plasticizing screw;

3. Adjustable back pressure control and melt decompression device;

4. Duel carriage cylinder to maintain consistent nozzle to platen alignment and

nozzle pressure, precision and consistency;

5. Linear potent ion meter for mould platen and screw position controls;

6. Injection screw directly driven by a low speed high torque hydraulic motor is

suitable for processing various plastics. The left diagram is to inject the sketch map.



Clamping Unit

1. Optimize designed five fulcrums and double inclined toggles clamping unit has

functions such as big force enlarge rate, high speed placid movement and large

mould-open distance;

2. Having hard chromed on the surface, the tie bars is corrosion-resistant and wear

resistant;

3. Mechanical and hydraulic eject device with one time or multiple changing

processes;

4. Hydraulic motor driven mould adjustment accelerates mould-changing process;

5. Automatic centralized lubrication system;



Hydraulic And Control Unit

1. Easy operated 16BIT CPU multi-function computer;

2. LCD display panel, clear simple control makes it easy to operate;

3. Alarm message with using statement, easy to troubleshooting;

4. Chinese/English language toggle mode, input and output use photo-coupler to

protect damage from out-side votary;

5. 50 sets mould data storage;

6. Close-loop PID tech, is used in temperature control with the advantage of high

precision;

7. Shot counters for easier calculation;



Paramter

Item Unit JSE-90 JSE-120 JSE150 JSE-180 JSE-220
Screw Diameter mm 34 35 40 45 50
Screw L/D Ratio L/D 21.7 22.8 22.5 22.2 22
Theoretical Shot Volume cm3 135 173 251 366 461
Shot weight(ps) g 122 157 228 333 420
Injection Pressure Mpa 218 230 229.7 210 211.7
Injection Rate g/s 59 71 77 104 128
Plasticizing Capacity g/s 10.4 10.8 11.6 14.6 18.7
Screw Speed Range r/min 0-230 0-200 0-200 0-150 0-130/0-110
Clamping Force Kn 900 1200 1500 1800 2200
Clearance Betweem Tie Bars mm 360*360 400*380 410*410 460*460 520*520
Opening Stroke mm 330 360 400 460 510
Max.mould Thickness mm 360*360 400 430 480 560
Min.mould Thickness mm 150 150 150 200 250
Ejector Force kn 27 27 33 45 53/70
Ejector Storke mm 100 100 120 130 140
Pump Power kw 11 11 15 18.5 22
Heating Power kw 6.21/9 7.43 9.27/12 11.27/13.47 12.47/19.67
Oil Tank Capacity L 180/200 200 270 350 450/500
Machine Weight t 3.5/3.8 4.1/4.3 4.5/4.8 5.5/5.7 6.4/7.1
Machine Dimension m 4.3*1.15*1.8 4.55*1.2*1.8 4.8*1.2*1.8 5.6*1.35*1.85 6.1*1.5.2





Item Unit JSE-250 JSE-280 JSE-330 JSE-350 JSE-400
Screw Diameter mm 55 55 60 65 70
Screw L/D Ratio L/D 21.8 23.6 21.5 23.1 21.4
Theoretical Shot Volume cm3 594 677 876 1062 1307
Shot weight(ps) g 540 616 797 948 1112
Injection Pressure Mpa 198 192 200 200 204
Injection Rate g/s 136 184 158 207 347
Plasticizing Capacity g/s 24.7 34 29.2 41 48
Screw Speed Range r/min 0-120/0-110 0-168/0-115 0-120 0-156/0-150 0-180/0-135
Clamping Force Kn 2500 2800 3300 3500 4000
Clearance Betweem Tie Bars mm 570*570 580*580 62*620 660*660 720*720
Opening Stroke mm 550 570 600 660 710
Max.mould Thickness mm 600 610 680 720 720
Min.mould Thickness mm 250 250 280 300 250
Ejector Force kn 70 53/87 87 70/110 110
Ejector Storke mm 150 160 160 180 200
Pump Power kw 22 22 30 30 37/45
Heating Power kw 15.6/18.32 18.55/21.6 18.52/23.73 19.95/24.75 22.75/30.5
Oil Tank Capacity L 500 500/700 600 750/800 800/1200
Machine Weight t 8.2/8.5 9.3/10.5 11.8/12.2 14/15 16/18
Machine Dimension m 6.4*1.5*2 7.0*1.65*2 7*1.7*2.1 7.5*1.75*2.3 8.8*2*2.25

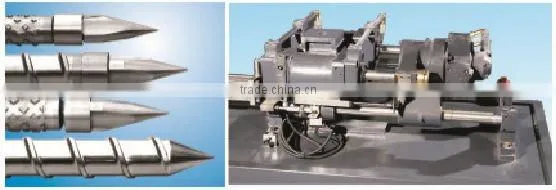

Injection Unit

Injection moulding machine,plastic injection mould machine



Clamping Unit Hydraulic Unit

Injection moulding machine,plastic injection mould machine Injection moulding machine,plastic injection mould machine

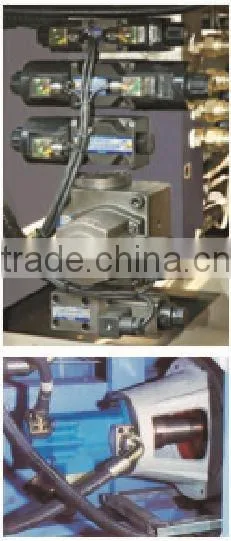

Controlling Unit Lubricating system Oil motor

Injection moulding machine,plastic injection mould machine Injection moulding machine,plastic injection mould machine Injection moulding machine,plastic injection mould machine

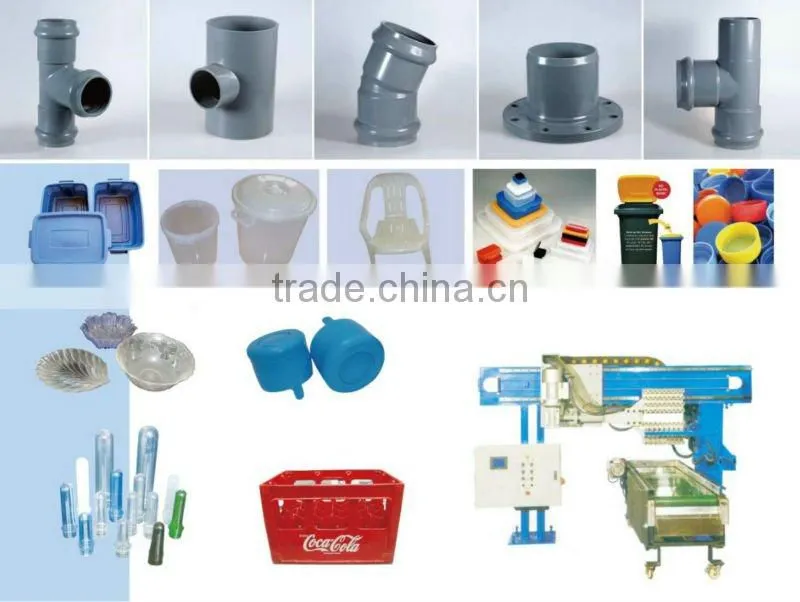

Product

Injection moulding machine,plastic injection mould machine





plastic injection machinery
