Carbonated Drink Production Line

Name: Carbonated Drink Production Line
Brand: JOYSUN
SKU: 140694022
Availability: InStock

US$ 15,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Beverage

Packaging Type:

Bottles

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Beverage

Packaging Type Bottles

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Power 10KW

Place of Origin Shanghai, China

Brand Name JOYSUN

Model Number CGF40-40-12

Specifications

Carbonated Drinks Filling Machine
duction capacity:12000-16000
2.filling volume:300-2000ml
3.filling precision:5mm

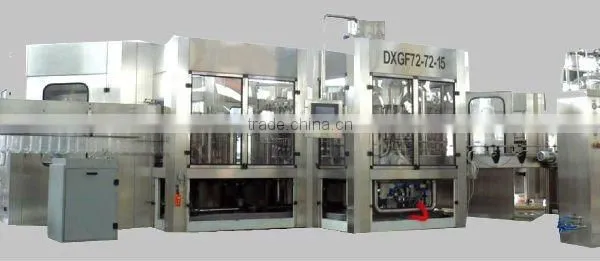

CGF series Washing-Filling-Capping Carbonated Drinks Filling Machine

Application: This series equipment is used for filling carbonated drink in plastic bottles.

Characteristic:

1,The machine can carry out three functions of bottle washing, filling and capping.

2,Advanced human-machine interface control technology is adopted to control the machine running automatically.

3,The suspension bottle neck catcher structure is adopted to make changing bottle model more convenient, fast and easy.

4,The micro-pressure technology is adopted which makes filling process more fast and stable.

5,The output speed of bottle could be adjusted by the belt conveyor system.

6,The main components are imported from international famous brand.

Main Technical specifications:

Model	CGF40-40-12
Capacity (bph)	12000-16000
Filling volume (ml)	300~2000
Bottle size (mm)	D: Ø 50- Ø110 H:150-320
Filling precision (mm)	±5
Rinsing water consumption(m³/h)	2.5
Air pressure (Mpa)	0.6
Air consumption(m³/min)	1.0
Power (kw)	10
Dimension(L×W×H)(m)	4.6×2.95×2.85
Weight (kg)	10000
