Specifications
Carbonated Drinks Filling Machineduction capacity:2000-24000
2.filling volume:250-2000ml
3.filling precision:5mm

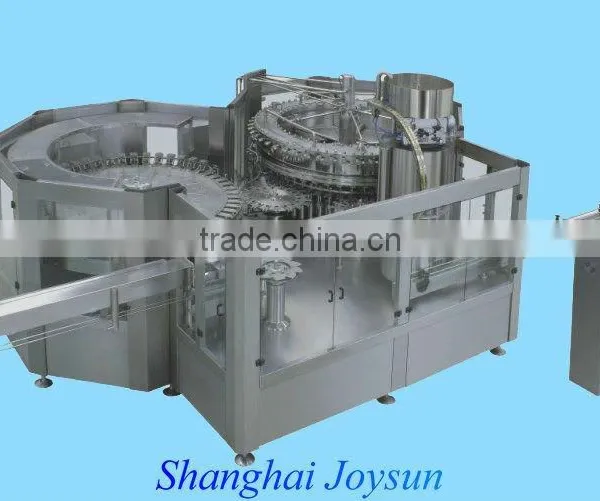

CGF series Washing-Filling-Capping Carbonated Drinks Filling Machine
Application: This series equipment is used for filling carbonated drink in plastic bottles.
Characteristic:
1,The machine can carry out three functions of bottle washing, filling and capping.
2,Advanced human-machine interface control technology is adopted to control the machine running automatically.
3,The suspension bottle neck catcher structure is adopted to make changing bottle model more convenient, fast and easy.
4,The micro-pressure technology is adopted which makes filling process more fast and stable.
5,The output speed of bottle could be adjusted by the belt conveyor system.
6,The main components are imported from international famous brand.
Main Technical specifications:
Model | CGF18-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 | CGF72-72-18 |
Capacity (bph) | 2000~4000 | 4000~6000 | 6000~8000 | 8000~12000 | 12000~16000 | 16000~18000 | 18000~24000 |
Filling volume (ml) | 250~1500 | 250~1500 | 300~2000 | 300~2000 | 300~2000 | 300~2000 | 300~2000 |
Bottle size (mm) | D: Ø 50- Ø110 H:150-320 | ||||||
Filling precision (mm) | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
Rinsing water consumption (m³/h) | 0.8 | 1 | 1.6 | 2 | 2.5 | 3.5 | 5 |
Air pressure (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Air consumption (m³/min) | 1 | 1 | 1 | 1 | 1 | 1 | 1.2 |
Power (kw) | 4 | 5 | 6.5 | 8.5 | 10 | 11 | 13 |
Dimension (L×W×H)(mm) | 2300×1550×2700 | 2800×2100×2700 | 3100×2200×2700 | 4100×2900×3250 | 4600×2950×2850 | 5900×4100×2750 | 6500×4900×2750 |
Weight (kg) | 2800 | 3500 | 4800 | 8500 | 10000 | 12000 | 12500 |
