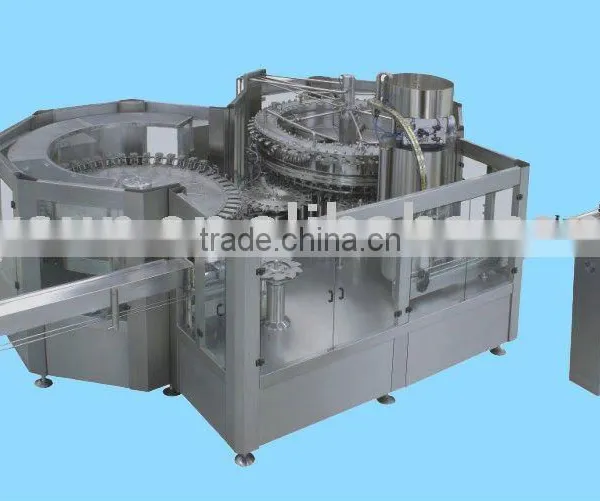

carbonated drink filling machine(CSD filling machine, filling machine)
- 10 Set / Sets per Month
- Shanghai
- T/T
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | JOYSUN | Model Number: | CGF |
Application: | Other, carbonated beverages flling |
Product Description
Specifications
Carbonated filling machine, CSD filling machineMaterial:stainless steel
Max capacity: 36000BPH
The series of machine are the integrated rinsing, filling and capping machine, suitable for filling various PET bottled carbonated beverages.
1. Bottles are transported with neck clipped in the filling monoblock, which features1Bottles with same and nearly same diameter can be changed easily with no need to adjust equipments. Even when bottles change a bit in diameter, you only need quite short time to change starwheels of bottle-block parts. This improvement helps the customer to ease operation and save time.2Be able to avoid second pollution from rubber clamp.
2. Bottle infeed by combination of infeed screw and infeed starwheel. Equipped with bottle jam protection device.
3. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
4. Adopt ring cylinder and equip CIP(SIP) cycling channel; high accurate and speed level favles are reasonably structured with accurate filling.
5. Use ZALKIN capping technology and magnetic contortion variation device to ensure stable and reliable capping quality which is suitable to high speed production line.
6. The height of bottle outfeeding conveyor does not need to be adjusted when changing bottle shape.
Technical parameter
Model | JSD14-12-5 | JSD18-18-6 | JSD24-24-8 | JSD32-32-10 | ||
Production capacity(500ml) (bph) | 3000 | 6000 | 10000 | 14000 | ||
Filling precision | >±5mm(Liquid Level) | |||||
Polyester bottle standard(mm) | Bottle diameter: 50-100 Bottle Height: 150-320 | |||||
Suitable cap sharp | Plastic screw cap | |||||
Water pressure of washing bottle(Mpa) | 0.18-0.25 | |||||
Water consumption of washing bottle(kg/h) | 1300 | 2000 | 3000 | 4000 | ||
Spraying position | 5 | 7 | 12 | 20 | ||
Dripping position | 2.5 | 3.5 | 7 | 14 | ||
Air source pressure(Mpa) | 0.6 | |||||
Air consumption(m3/min) | 0.3 | 0.4 | 0.5 | 0.6 | ||
Power (kw) | 5.03 | 6.57 | 8.07 | 10.07 | ||
Weight (kg) | 3000 | 4000 | 5000 | 6000 | ||
Size(mm) | 2400×1650×2500 | 2640×1800×2500 | 3000×2000×3150 | 3600×2800×3150 |
