Specifications
Non-Carbonated Filling MachineCE) cola filling linecapacity: 3000-36000BPH
material: stainless steel
CE certificate
carbonated filling machine
Main composing:
Water treatment equipment, Preform injection line, Cap injection line, PET bottle blowing line, Syrup blending system, Mixing machine, Freezing system, Fully automatic bottle unscrambler, Air conveying system, 3-in-1 filling machine, CIP auto cleaning system, Auto conveying system, Air purification system.
Shower warming machine, OPP/PVC labeling machine, Wrap shrinking packing machine.
Parameter:
Model |
JSF14-12-5 |
JSF18-18-6 |
JSF24-24-8 |
JSF32-32-10 |
||
Production capacity(500ml) (bph) |
3000 |
6000 |
10000 |
14000 |
||
Filling precision |
>±5mm(Liquid Level) |
|||||
Polyester bottle standard(mm) |
Bottle diameter: 50-100 Bottle Height: 150-320 |
|||||
Suitable cap sharp |
Plastic screw cap |
|||||
Water pressure of washing bottle(Mpa) |
0.18-0.25 |
|||||
Water consumption of washing bottle(kg/h) |
1300 |
2000 |
3000 |
4000 |
||
Spraying position |
5 |
7 |
12 |
20 |
||
Dripping position |
2.5 |
3.5 |
7 |
14 |
||
Air source pressure(Mpa) |
0.6 |
|||||
Air consumption(m3/min) |
0.3 |
0.4 |
0.5 |
0.6 |
||
Power (kw) |
5.03 |
6.57 |
8.07 |
10.07 |
||
Weight (kg) |
3000 |
4000 |
5000 |
6000 |
||
Size(mm) |
2400×1650×2500 |
2640×1800×2500 |
3000×2000×3150 |
3600×2800×3150 |
||
Flow diagram:

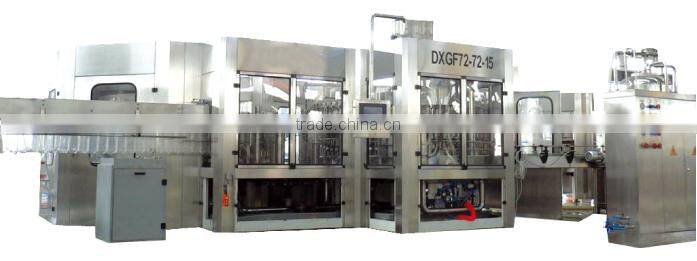

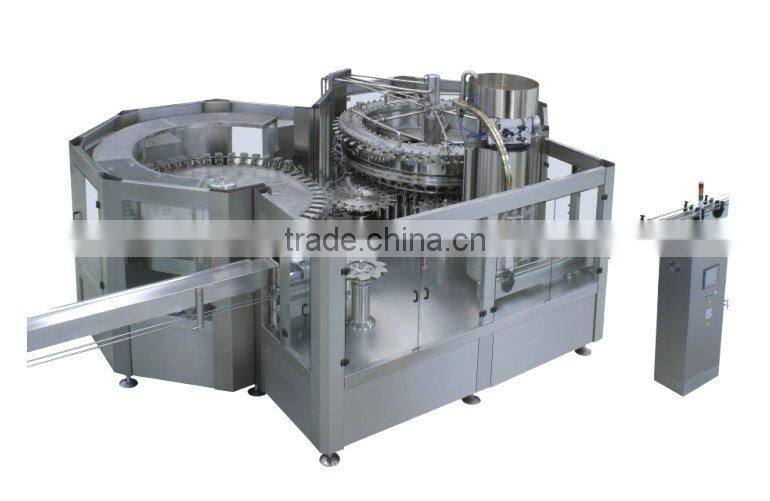

Machine :
Factory:
