Specifications

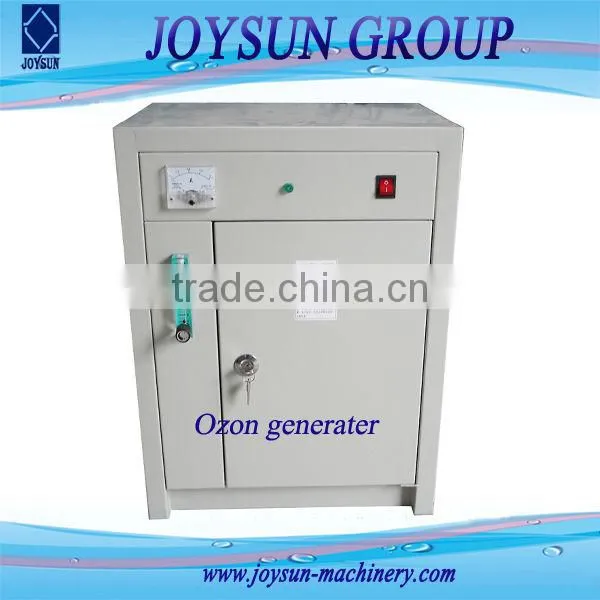

the ozone is stronger than any other chemical disinfectants in terms of its sterilization capacityOzone Generator
Profile
Our ozone generator, as the name depicts, is a machine applied to generate ozone. Ozone is a very strong oxidizing substance. With its oxidizing performance, it could be used to destroy the biological structure of the bacteria, viruses, and other microorganisms and kill them in a short period of time. When the density of ozone reaches 0.3-2 mg/L, it can kill bacteria in 0.5-1 mins. While its density reaches 4 mg/L, it can kill 100% inactivated hepatitis B virus in just one minute. Therefore, the ozone is stronger than any other chemical disinfectants in terms of its sterilization capacity
Parameter:
The technical of ozone generator with air source
| Type | Ozone output | Flow | Ozone concentration | Flow of Cooling | Rated power | Dimension | weight |
| kg/h | Nm3/h | g/ m3 | water m3/h | Kwh/kgO3 | mm | T | |
| JSO-1000 | 1 | 35-50 | 20-35 | 3-4 | 15-18 | 1900*930*1900 | 1.3 |
| JSO-2000 | 2 | 70-100 | 20-35 | 6-8 | 15-18 | 2400*1800*1900 | 2.1 |
| JSO-3000 | 3 | 105-150 | 20-35 | 9-12 | 15-18 | 2400*2300*1900 | 2.7 |
| JSO-4000 | 4 | 140-200 | 20-35 | 12-16 | 15-18 | 3000*2400*2120 | 3.5 |
| JSO-5000 | 5 | 175-250 | 20-35 | 15-20 | 15-18 | 3000*2500*2120 | 4.6 |
The technical of ozone generator with oxygen source
| Type | Ozone output | Flow | Ozone concentration | Flow of Cooling | Rated power | Dimension | weight |
| kg/h | Nm3/h | g/ m3 | water m3/h | Kwh/kgO3 | mm | T | |
| JSO-1000 | 1 | 10-12 | 80-120 | 1.7-2 | 8-10 | 1400*800*1700 | 0.9 |
| JSO-2000 | 2 | 20-24 | 80-120 | 3.4-4 | 8-10 | 1900*930*1900 | 1.4 |
| JSO-3000 | 3 | 30-36 | 80-120 | 5.4-6 | 8-10 | 1800*1800*1900 | 2 |
| JSO-4000 | 4 | 40-48 | 80-120 | 6.8-8 | 8-10 | 2400*1900*1900 | 2.5 |
| JSO-5000 | 5 | 50-60 | 80-120 | 8.5-10 | 8-10 | 2400*2200*1900 | 2.7 |
Diagram:
