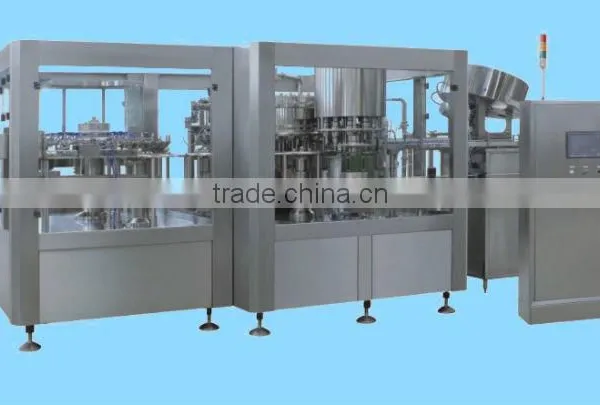

Carbonated Drink Filling Machine

Name: Carbonated Drink Filling Machine
Brand: JOYSUN
SKU: 140693972
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Plastic

Plastic Type:

PET

Industrial Use:

Beverage

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Material Plastic

Plastic Type PET

Industrial Use Beverage

Sealing Type Screw Cap

Surface Handling Hot Stamping

Place of Origin Shanghai, China

Brand Name JOYSUN

Model Number CGF

Specifications

carbonated drink filling machine(CE) cola filling line
capacity: 3000-36000BPH
material: stainless steel
CE certificate

Main Composing:

1. RO/UF Water treatment equipment

2. Preform injection molding machine

3. Cap injection molding machine

4. PET bottle blowing molding machine

5. Fully automatic bottle unscrambler,

6. Air conveyer

7. Rinsing filling capping machine

8. Lamp inspection

9. OPP/PVC labeling machine

10. Code printer

11. Wrap shrinking packing machine

12. Carton packing machine

13.Palletizer

Specification:

Model	QGF14-12-5	QGF18-18-6	QGF24-24-8	QGF32-32-10	QGF40-40-12
Production capacity(500ml) (bph)	4000	8000	12000	15000	18000
Filling precision	>±5mm(Liquid Level)
Polyester bottle standard(mm)	Bottle diameter: 50-100mm Bottle Height: 150-320mm
Suitable cap sharp	Plastic screw cap
Water pressure of washing bottle(Mpa)	0.18
Water consumption of washing bottle(kg/h)	800	1600	2500	3500	4500
Spraying position	5	5	6	12	20
Dripping position	3		3.5		14
Air source pressure(Mpa)	4
Air consumption(m3/min)	-	0.3	0.4	0.5	0.6
Power (kw)	4.23	5..03	6.57	8.07	5.6
Weight (kg)	2500	3000	4000	5000	6000
Size(mm)	2300×1550×2500	2640×1800×2500	3000×2000×3150	3600×2800×3150	4500×3400×3150
