Specifications
CIP cleaning system1. Fully automatic CPI and semi automatic CIP
2. PLC control
3. stainless steel material

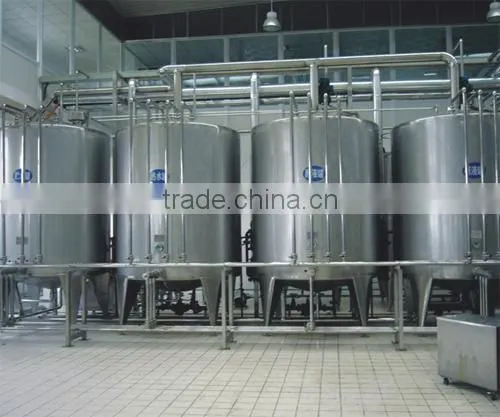

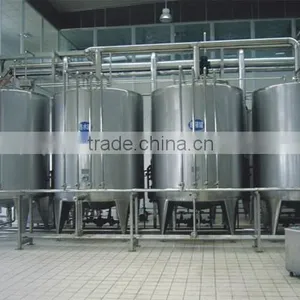

CIP System
Fully automatic CIP system (including tank, pipe, pump, valve) carries out automatic circulation cleaning without opening the equipment and the whole production line. Our CIP cleaning system adopts plate type heat exchanger, control valve, and Siemens PLC system. Functions like acid and alkali density test, liquid level control, online heating can be carried out with its imported components.
Manual CIP online washing system is manually-operated for the heating. When the density of the washing solution is less than required, acid or alkali has to be added manually. The conveyance of the CIP liquid is also manually operated through the pipe valve. Water is also need to be manually added. This system requires more manual operations.
Profile
As an experienced CIP system manufacturer and supplier, we also offer UHT sterilizers, blending preparation tanks, fruit washing machines and more accessory equipment for filling lines. With CE and ISO9001 certificates, our leading products, like molding machines, water treatment, accessory equipment for filling lines, labeling machines, shrink film wrap packing machines, are exported to many countries like Iran, India, Bangladesh, Australia, Spain, Turkey, Egypt, Malaysia, Brazil, Vietnam, Japan and more. You are welcome to visit us in Shanghai!
Characterisitc:
1. Flexibility and general usage
The system can undertake single process such as acid cleaning, alkali cleaning, and hot water cleaning, and also cleaning time and increase the work efficiency compared with cleaning by hand; the use of cleaning liqucan take completely automatic cleaning according to the cleaning process designed. Semi-automatic ot fully automatic equipments can be made to order.
2. Economics and high efficiency
This equipment greatly reduces the id and water is more reasonable; make full use of energy, and reduce the cleaning cost.
3. Safety and reliance
Dense acid liquid and alkali liquid are n the berried acerbity pot and alkali pot, the liquid position is automatically controlled, fixed with overflow protecting system, and unique material outlet construction can stop crystallization from the cleaning liquid to stop the pipe.
4. Matured PLC Controlling System
Imported qualified controlling part can keep the system operate steadily for along time; friendly interface between people and machine shortens the training time of the operators, and shows directly work condition of key parts of the machine; easily understandable interface can cooperate the operator the make decision, and deal with the common problems, so to ensure the machine return to work in time
Technical parameter
| Model | JCIP1 | JCIP2 |
| Acid tank | 1000 Circular pipe heating | 2000 Circular pipe heating |
| Alkali tank | 1000 Circular pipe heating | 2000 Circular pipe heating |
| Water tank | 800 Circular pipe heating | 1600 Circular pipe heating |
| Pump flow | 10m3/h | 10m3/h |
| Pump lift | 36m | 36m |
| Pump motor | 3kw | 3kw |
| Size | 3000*1200*1850mm | 3200*1400*2000mm |
| Weight | 420kg | 480kg |
| Name | Simple instruction | |
| Alkali tank | Material 340, conic top and tonic bottom,thickness 50mm,keeping warm | |
| Acid tank | Material 340, conic top and tonic bottom,thickness 50mm,keeping warm | |
| Hot water tank | Material 340, conic top and tonic bottom,thickness 50mm,keeping warm | |
| Clean water tank | Material 340, conic top and tonic bottom,thickness 50mm,keeping warm | |
| Dense acid and alkali tank | Material 316. single layer,plate top and plate bottom pot or berried pot | |
| Advancement pump | Material 316, flow:20m3/h lift:36m, electric motor: 5.5kw | |
| Sese acerbity and alkali pump steam motored film pump | Materail 316, flow:1000L/h | |
| Plate heat exchanger | Material 304 18m2 | |
| Filter | Material 304 18m2 | |
| Returning pump, self-priming pump | Material 316,flow:20m3/h,lift:20m,electric motor:4KW | |
| Contorlling cabinet | The shell is staineless; controlling method can be made to order | |
| Name | Simple instruction | |
| Alkali tank | Material 340, conic top and tonic bottom,thickness 50mm,keeping warm | |
| Acid tank | Material 340, conic top and tonic bottom,thickness 50mm,keeping warm | |
| Hot water tank | Material 340, conic top and tonic bottom,thickness 50mm,keeping warm | |
| Clean water tank | Material 340, conic top and tonic bottom,thickness 50mm,keeping warm | |
| Dense acid and alkali tank | Material 316. single layer,plate top and plate bottom pot or berried pot | |
| Advancement pump | Material 316, flow:20m3/h lift:36m, electric motor: 5.5kw | |
| Sese acerbity and alkali pump steam motored film pump | Materail 316, flow:1000L/h | |
| Plate heat exchanger | Material 304 18m2 | |
| Filter | Material 304 18m2 | |
| Returning pump, self-priming pump | Material 316,flow:20m3/h,lift:20m,electric motor:4KW | |
| Contorlling cabinet | The shell is staineless; controlling method can be made to order | |
