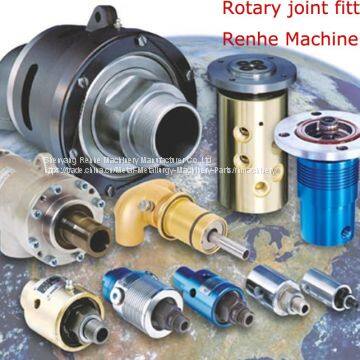

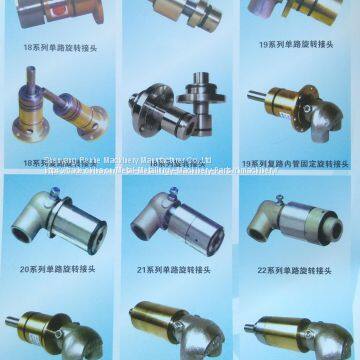

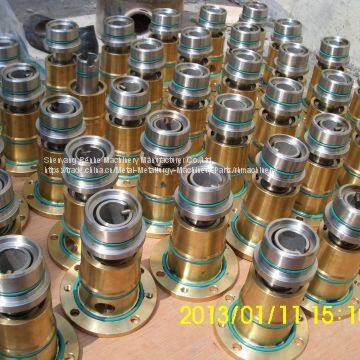

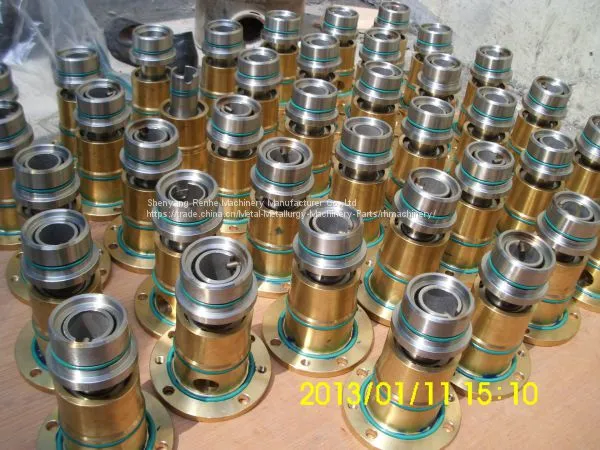

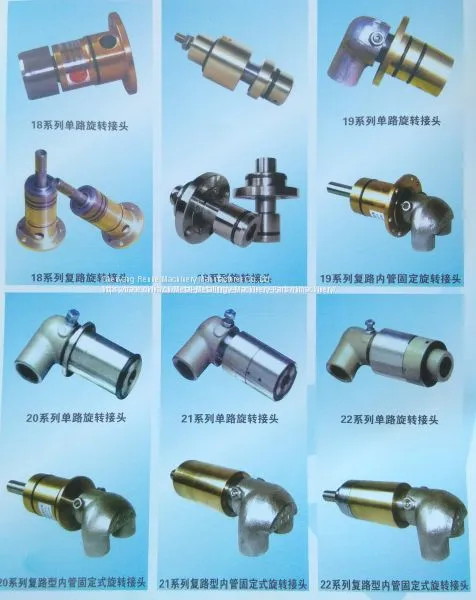

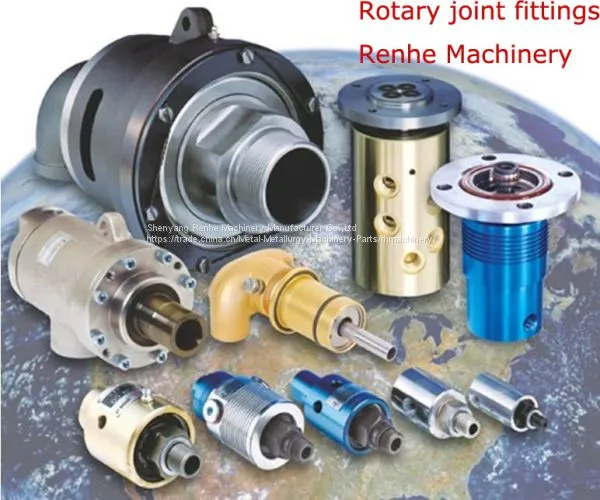

Rotary joint
Rotary Systems offers a wide range of in-stock rotary unions from our standard product lines to match your media type, pressure, speed, and temperature specifications. These unique rotary union designs offer diverse technologies such as mechanical seals, Teflon seals, and hydrostatic seals with single passage and multiple passage options.
We also have custom design solutions for applications requiring more than our standard line can offer.
Product Description
Structure Feature:
The reciprocating rotary joint is a movable connection between the fluid medium which is used for the fluid flow in the steel pipe. The internal direct use of ball as support; with a high wear resistance, flecible rotation, strong support; sealing for the synthetic rubber, a special sealing ring, sealing and reliable, and can with stand high temperature. It's widely used in metallurgy, petrochemical, shipping, rubber, paper and other industries for the flow of fluid mediem.
Working condition:
High speed:20rpm
High temperature:200℃
High pressure: 5.5MPa
Application medium: steam, oil, water, air, etc
Specification:6,8,10,15,20,25,32,40,50,65,80,100,125,150,200,300.
Operating Parameters | |
Max.Pressure | 5.5MPa |
Max.Temperature: | 200℃ |
Max.Speed: | 20rpm |
Medium: | Steam, Water, Oil, Air, etc |
In order to make you more intuitive understanding of our products structure, please read the following content.
