Automatic Fiberglass Window Screen ,Mosquito Screen Neeting Weaving Machine
Sending wire with full automatic,applicable to fiberglass wire, main machine,resonable design,lower noise,easier operate.
Fiberglass window screen making machine production line
1)Warping Machine

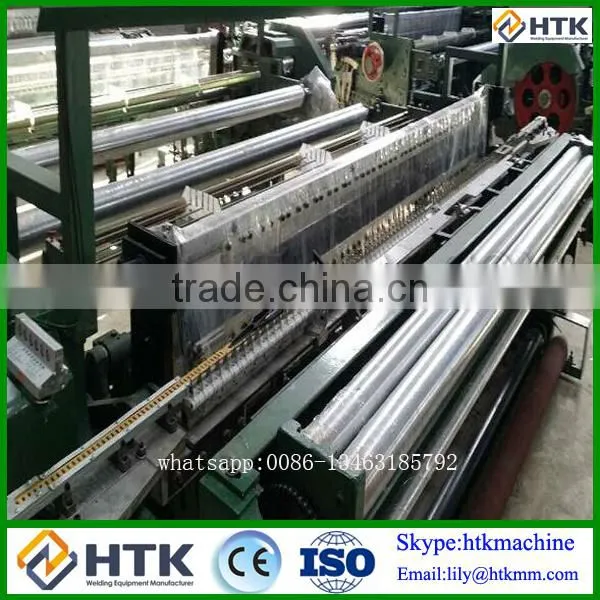

2)fiberglass window screening weaving machine
Mainly used for window screen .
- Technical Parameters
Items | WMM-2600 |
Wire Diameter | 0.15-0.5mm |
mesh | 10-40mesh |
Material | fiberglass wire |
Welding Width | 1200-2600mm |
Woven Speed | 130times/min |
Warp Form | Roller Wire |
Weft Form | Roller Wire |
Rated Voltage | 380V |
Rated Power | 1.5KW |
2. Technical Parameters
Items | WMM-3000 |
Wire Diameter | 0.21-0.6mm |
mesh | 10-20mesh |
Material | fiberglass wire |
Welding Width | 1200-3000mm |
Woven Speed | 120times/min |
Warp Form | Roller Wire |
Weft Form | Roller Wire |
Rated Voltage | 380V |
Rated Power | 2.2KW |
3)plastic coating machine
4)Mesh quality inspection machine
The main wire mesh machine is with plastic film to the container, the spare parts and cabinet are with plywood box to the container.
Shipping mode:FOB Tianjin
FAQ--About the inquiry
Before preparing the inquiry, pls inform the below basic specification. so that we show the quotation .
1. wire diameter
2. mesh size
3.welding width etc.
Easily Operating & High Quality & Moderate Cost welding machine for you!
FAQ--About Delivery Term
Q--What's the delivery term for making business with us?
A--Usually we send the shipments in FOB term .However,the terms of CIF and C&F are acceptable which depend on preference of clients.
FAQ--About Lead Time
Q--What's the lead time after placing the order?
A--Usually it takes about 20-40 days after we received your confirmation.However,it would depend on our production line schedule(the timing clients place order)and the complication of the item.
FAQ--About Payment Term
Q--What's the payment term?
A--By T/T in Advance, or Irrevocable L/C as Sight.
Pre-sale service
Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments.
1.Select equipment model.
2.Design and manufacture products according to clients' special requirement.
3.Train technical personnel for clients.
Services during the sale
1.Pre-check and accept products ahead of delivery.
2.Help clients to draft solving plans.
After-sale service
Provide considerate services to minimize clients' worries.
1.Assist clients to prepare for the first construction scheme.
2.Install and debug the equipment.
3.Train the first-line operators.
4.Examine the equipment.
5.Take initiative to eliminate the troubles rapidly.
6.Provide perfect service.
7.Provide technical exchanging.
HTK is located in Shenzhou City ,Shijiazhuang,Hebei Province. Adjacent to the capital of China--Beijing, and not far from the Tianjin International Newport.
HTK is a private enterprises with highly educated and professional technical team,it owns more than 200 people,containing designers,engineers,senior technical backbone nearly 30 people. We have been manufacturing for 15 years, our company produces all sorts of wire mesh machines and sell well domestic and foreign, such as reinforcing mesh welding machine ,field fence weaving machine ,welded wire mesh machine,chain link fence,barbed wire machine,crimp wire mesh machine,gabion mesh machine etc.
