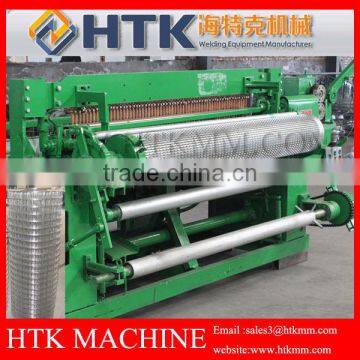

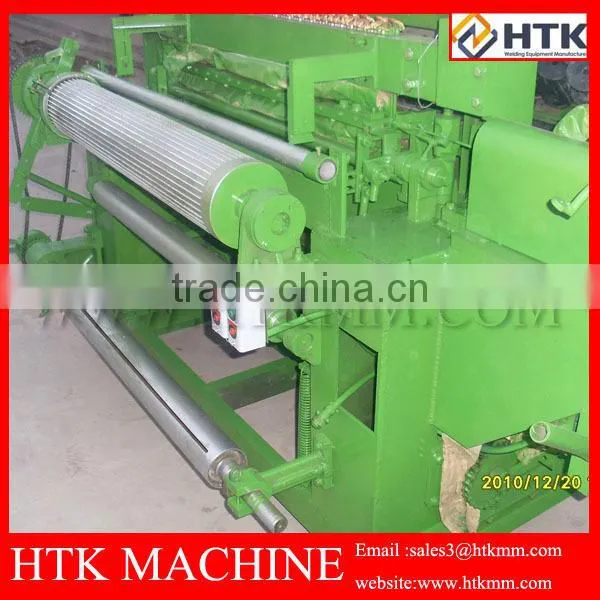

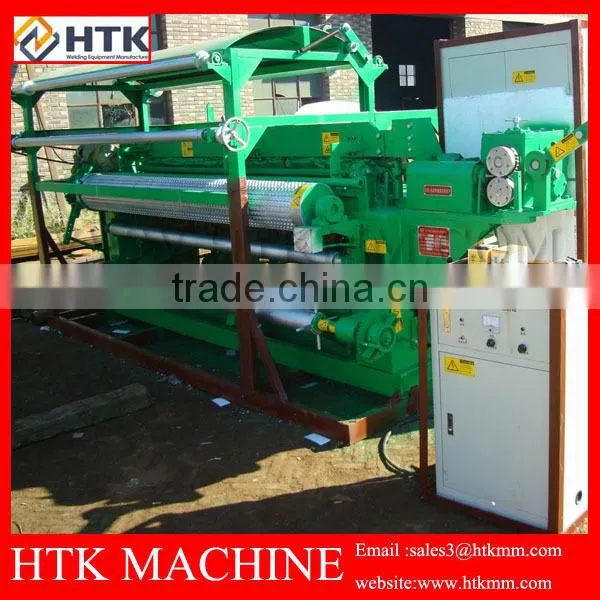

Fully Automatic 1"*1" 2"*2" Galvanized Welded Wire Mesh Roll Machine

Fully Automatic 1"*1" 2"*2" Galvanized Welded Wire Mesh Roll Machine thumbnail-1
Fully Automatic 1"*1" 2"*2" Galvanized Welded Wire Mesh Roll Machine thumbnail-2
Fully Automatic 1"*1" 2"*2" Galvanized Welded Wire Mesh Roll Machine thumbnail-3
Fully Automatic 1"*1" 2"*2" Galvanized Welded Wire Mesh Roll Machine thumbnail-4
Fully Automatic 1"*1" 2"*2" Galvanized Welded Wire Mesh Roll Machine thumbnail-5
Fully Automatic 1"*1" 2"*2" Galvanized Welded Wire Mesh Roll Machine thumbnail-6
Fully Automatic 1"*1" 2"*2" Galvanized Welded Wire Mesh Roll Machine photo-1
Fully Automatic 1"*1" 2"*2" Galvanized Welded Wire Mesh Roll Machine photo-2
Fully Automatic 1"*1" 2"*2" Galvanized Welded Wire Mesh Roll Machine photo-3
Fully Automatic 1"*1" 2"*2" Galvanized Welded Wire Mesh Roll Machine photo-4
Fully Automatic 1"*1" 2"*2" Galvanized Welded Wire Mesh Roll Machine photo-5
Fully Automatic 1"*1" 2"*2" Galvanized Welded Wire Mesh Roll Machine photo-6
US$ 8,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HTK
Model Number:
htk-2000
Contact Supplier Request Quote Chat Now
Hebei HTK Welding Equipment Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name HTK
Model Number htk-2000
After-sales Service Provided Engineers available to service machinery overseas
Product Description

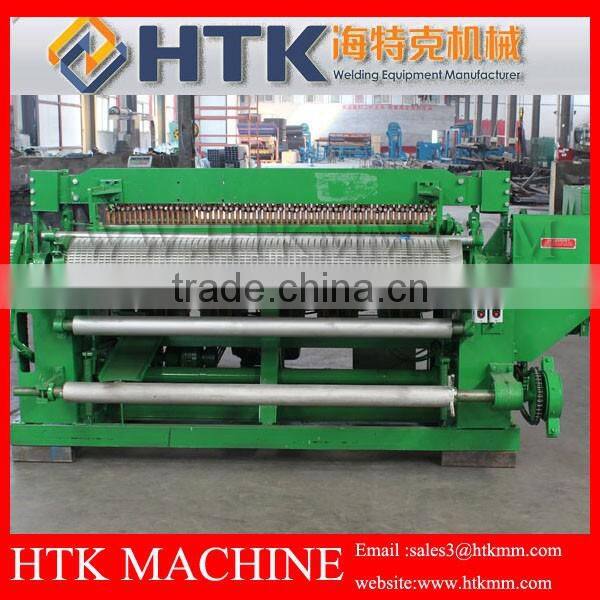

Fully Automatic 1"*1" 2"*2" galvanized welded wire mesh roll machine

Fully Automatic 1"*1" 2"*2" galvanized welded wire mesh roll machine

  • Model: DNW
  • Wire diameter: 0.4-2.5mm
  • Pitch: 1/4", 1/2"; 1", 2", 3", 4"......
  • Mesh width: Max.1.2-2.5m
  • Longitude wire feeding: from wire coils
  • Cross wire feeding: from wire coil
  • Material: GI wire, black wire, SS wire
  • Needed power: min.80kva
  • Mesh type: roll mesh
  • Certificate: CE

Technical Parameters



TypeDNW-1DNW-2DNW-3
Wire diameter0.4-0.65mm0.65-1.8mm/0.8-2mm1.0-2.2mm/1.2-2.5mm
Aperture/pitch

1/4", 1/2”

6.35, 12.7mm

1/2", 1", 2", 3", 4"

12.5, 25, 50mm

1", 2", 3", 4"

25, 50, 75, 100mm

Mesh widthMax.1.2m,1.5m, 2mMax.1.2m,1.5m, 2mMax.1.2m,1.5m, 2m, 2.5m
Motor2.2kw2.2kw; 4.0kw2.2kw;4.0kw
Welding speedMax.75 rows/minMax.120-180 rows/minMax.80-120 rows/min
Transformer50kva*360kva*4;60kva*5,60kva*760kva/70kva*5/6/7/8pcs
Weight1.5T2T,2.5T2T,2.5T,3T,3.5T

Fully Automatic 1"*1" 2"*2" galvanized welded wire mesh roll machineFully Automatic 1"*1" 2"*2" galvanized welded wire mesh roll machine

Machine Description

1. Both of the longitude wire and cross wire are fed from wire coils automatically.

2. The raw material is suitable for black wire, galvanized wire or stainless steel wire.

3. The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.

4. The mesh roll length can be set by counter switch on the control panel.

5. The welding transformers have 8 degrees and can be adjusted for different wire diameters.

6. The welding time and welding current can be adjusted on the control panel to guarantee welding solid.

7. It has advantages such as reasonable design, low noise, stable working, easier operation and electro-magnetism speed adjustment.

Fully Automatic 1"*1" 2"*2" galvanized welded wire mesh roll machineFully Automatic 1"*1" 2"*2" galvanized welded wire mesh roll machineFully Automatic 1"*1" 2"*2" galvanized welded wire mesh roll machine

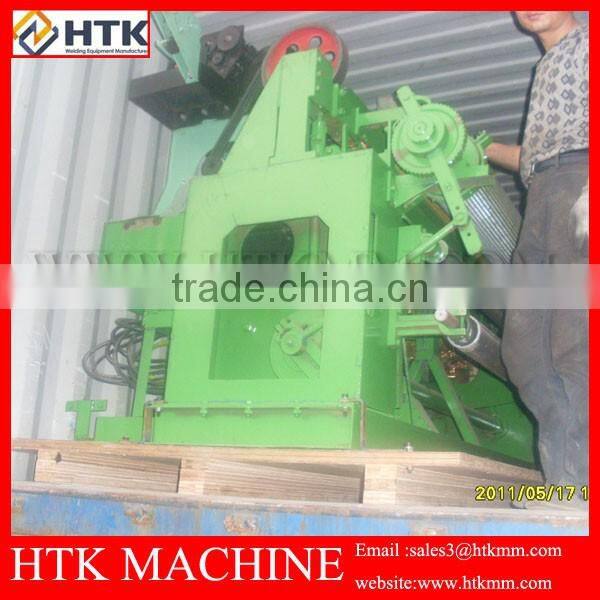

Packaging & Shipping

 Fully Automatic 1"*1" 2"*2" galvanized welded wire mesh roll machine

Our Services

 Guarantee time: 18 months.

Spare parts: If non-quick wear part is broken, we can change for free.
Installation&training:
Complete installation instructions&circuit diagram.
Send best engineer to your fatory for installation&training.
After-sales:
24 hours support service.
