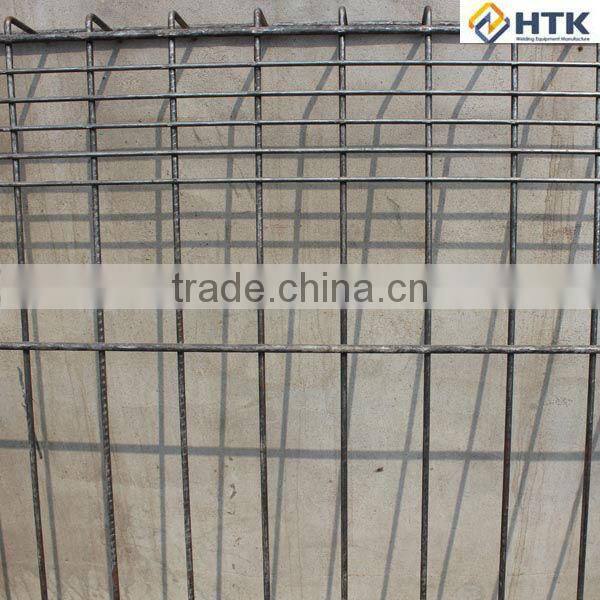

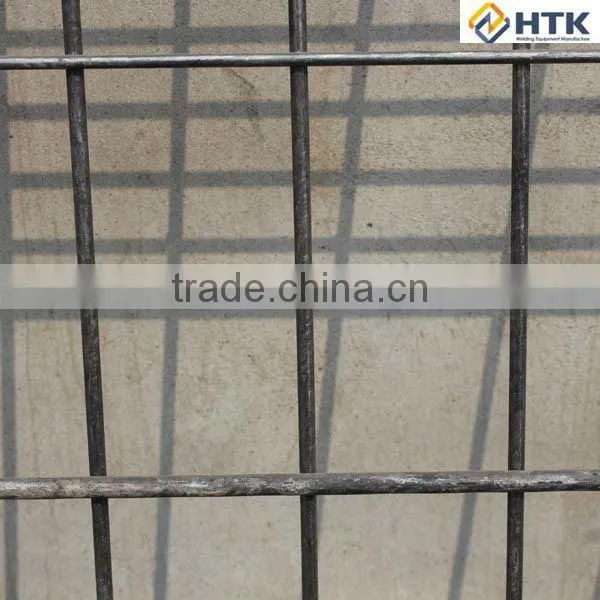

reinforcing mesh
Reinforcing Mesh is used for the reinforcement of concrete, is manufactured to SANS 1024:2006 and to other international standard specifications.
|
Mesh Reference Type |
Aperture (mm) |
Main Wire Diameter(mm) |
Cross Wire Diameter(mm) |
Kg Per Suare meter |
888 |
200*200 |
12 |
12 |
8.88 |
617 |
200*200 |
10 |
10 |
6.17 |
500 |
200*200 |
9 |
9 |
5 |
395 |
200*200 |
8 |
8 |
3.95 |
311 |
200*200 |
7.1 |
7.1 |
3.11 |
245 |
200*200 |
6.3 |
6.3 |
2.45 |
200 |
100*100 |
4 |
4 |
2 |
193 |
200*200 |
5.6 |
5.6 |
1.93 |
156 |
100*100 |
3.55 |
3.55 |
1.56 |
Features
•Reinforcing Mesh mats are the most commonly used form of prefabricated reinforcement and is particularly suitable for flat slab construction and concrete surface beds. Other designed
Applications include:
Retaining and shear walls
Beams and columns
Concrete paving overlays
Precast concrete elements
Buildings project
Swimming pool and gunite construction
•Reinforcing Mesh mats can be detailed as either flat or bent sheets, depending on the job requirements
•Reinforcing Mesh reinforcement considerably reduces construction time
•SANS 1024:2006 designated fabric mats are standard welded reinforcement mats and can be scheduled simply by reference to the fabric type, sheet dimensions and bending shape codes. (The reference is the nominal mass of the fabric in kg/m2 x 100).
•The cold-rolled deformed wire used in welded mesh fabric has a characteristic
strength (0.2% proof stress) a minimum of 485MPa compared to 450MPa for high tensile rebar. Fabric may be used at higher stresses than high tensile rebar resulting in a material saving of up to 8%.
About us:
Hebei HTK Welding Equipment Manufacturing CO.,Ltd, formerly known as the (SHENZHOU CITY CHAOYI WIRE MESH EQUIPMENT CO.,LTD). The company registered capital of 500million,with two senior engineers,10senior technicians, more than 100employeers.
Contact Sales Manager:
Welcome to visit our factory.Pls inquiry me that you can lear more about our product.We have a direct factory is main on wire mesh and wire mesh machine.
