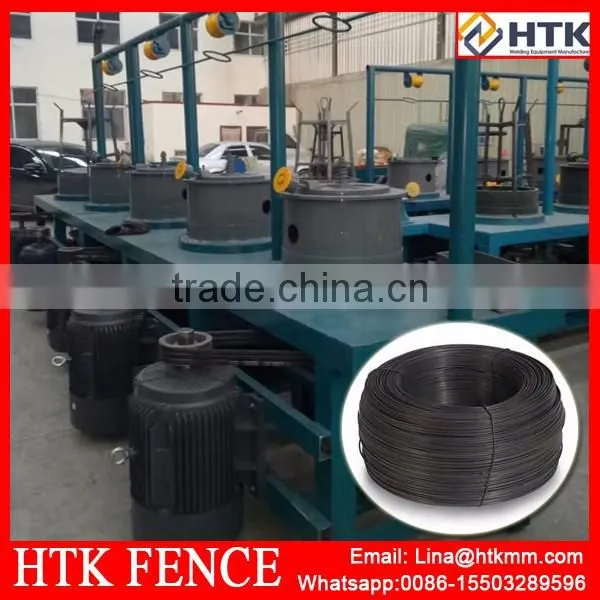

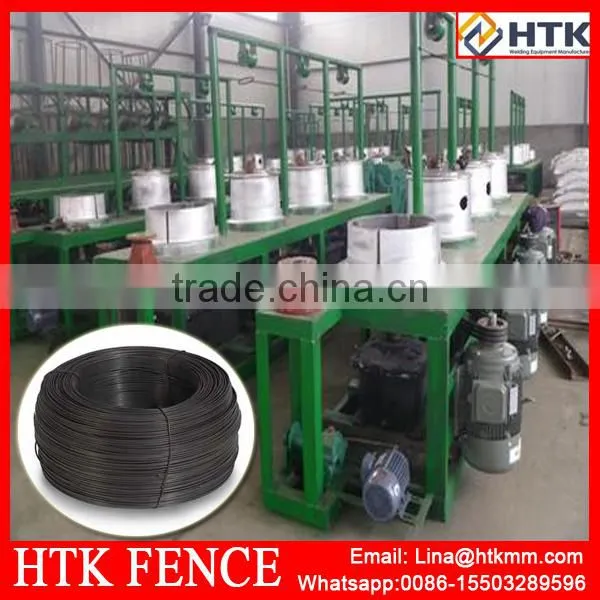

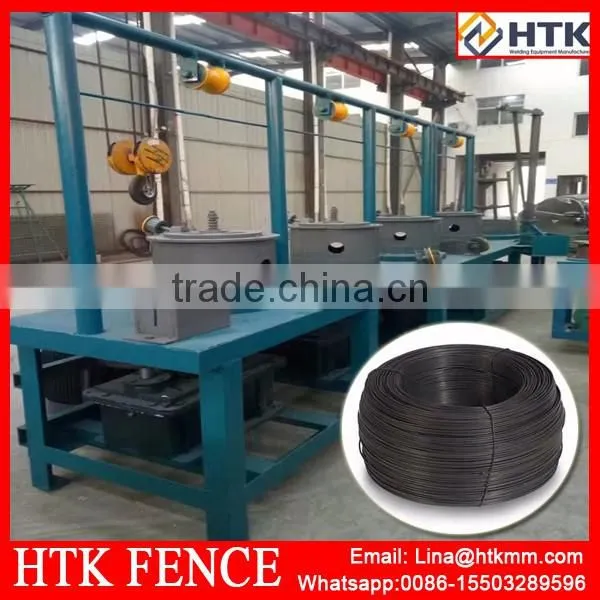

used iron wire drawing machine for drawing steel iron wire supplied by china manufacturer
Wire drawing Machine are capable of drawing rod wires of high-,medium-,low-carbon steel, copper, aluminium, ect.and appliable to manufacturing industries such as wood screw, nail, conducting wire rope for electrician use, spring,etc. With electrical control, this kind of machine is safe in operation, low in noise, and high in efficiency. The operation is simple and convenient.
Technical Parameters:
ITEM | UNIT | 8/80 | 10/560 | 10/550 | 10/450 |
Capstan dia | mm | 600 | 560 | 550 | 450 |
Material strenght | Mpa | 1150 | 1150 | 900 | 1300 |
Max incoming dia | mm | 8-6 | 6.5 | 6.5 | 3.6 |
Min outgoing dia | mm | 3-2 | 1.8 | 1.8 | 1.1 |
Total compressibility | % | 85 | 92.33 | 92.33 | 90.7 |
Max average compressibility | % | 25 | 25 | 25 | 21 |
Max line speed | m/min | 300 | 400 | 400 | 400 |
Single motor power | kw | 37-30 | 30-18.5 | 22-15 | 18.5-7.5 |
weight | kg | 3000 | 2500 | 2200 | 2000 |
Domenions | mm | 2000*1200*2600 | 1700*1100*2400 | 1520*820*2300 | 1520*820*2200 |
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.All machines were tested and adjusted before delivery.
4.Engineers available to service machinery overseas: Worker-training, installation.etc.
5.24 hours technical support by e-mail or calling service.
MOQ: One Set.
Payment: TT or L/C AT SIGHT.
Welcome to visit 15 years old factory!!!
