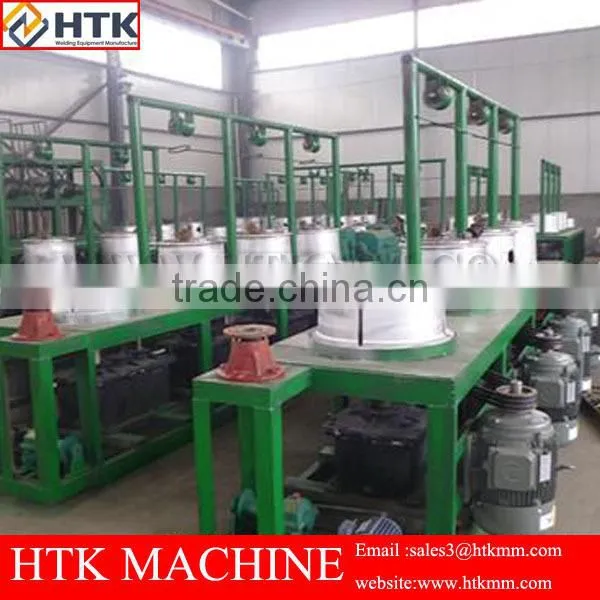

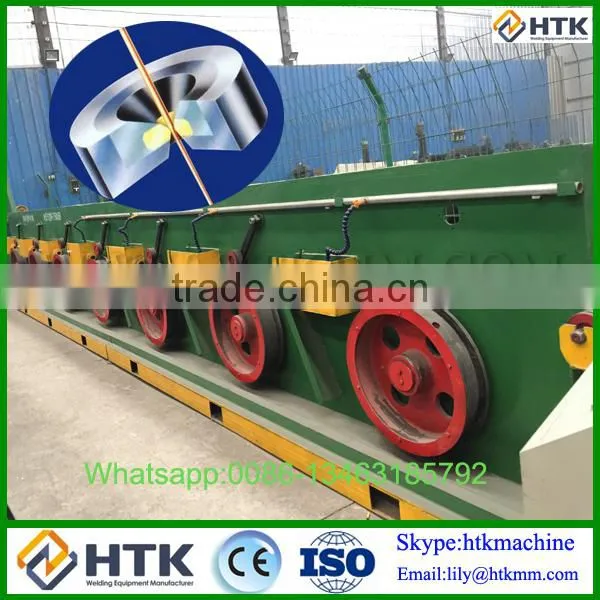

Good Quality Straight Line Steel Wire Rod Wire Drawing Machine
Main Specification
Type |
LW-1/800 |
LW-1-6/560 |
LW-1-7/450 |
LW-1-6/350 |
Material intensity |
|
δb≥110kg/mm2 |
128kg/mm2 |
δb≥140kg/mm2 |
Max diam of material |
10-14 |
6.5mm |
3.4mm |
2.5mm |
Min diam of material |
6.0 |
2mm |
1mm |
0.75mm |
Diam of block |
1-800 |
1-6/560 |
1-7/450 |
1-6/350 |
Max average condensation |
25% |
30% |
20% |
21% |
Total condensation |
|
78-88.5% |
77.9% |
78% |
Max.speed of block |
60m/min |
245m/min |
346.9m/min |
200m/min |
Total power |
80kw |
18.5-30kw |
7.5-11kw |
7.5-11kw |
Weight |
4500kg |
2000kg |
1500kg |
1000kg |
Overal size |
9730×3340×2020mm |
1700×1150×1750mm |
1520×810×1700mm |
1400×800×1500mm |
Main Featrues
1.Precise design, easy operation.
2.High speed and stability fitting your goal of efficiency.
3.Made from high quality material, undergoing high abrasion-resistance and low deformation heat treatment process, the machine is endurable with long time preciseness.
4.The forced feed lubricator guarantees oil-film lubrication of the rubbing parts and ensures the lasting use of the machine.
wire drawing machines can be ordered according customer's request
Machine to be installed and commissioned by SM technicians.
The seller will send our engineer to install the machine accordingly if the buyer need.
The buyer have to pay the salary US$100 per day, and the air ticket, accommodation, eating and some related fees should be your responsibility.
It is in same condition if the buyer need the seller to send the interpreter.
