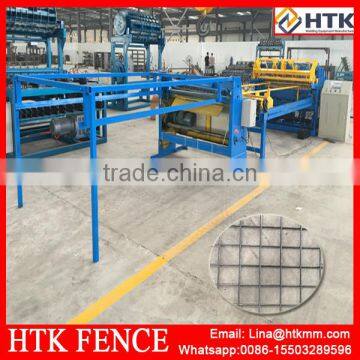

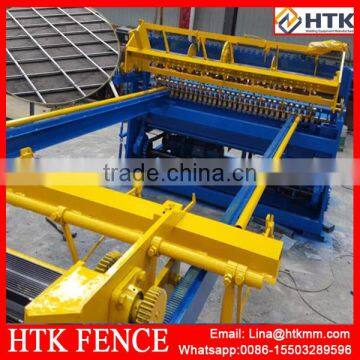

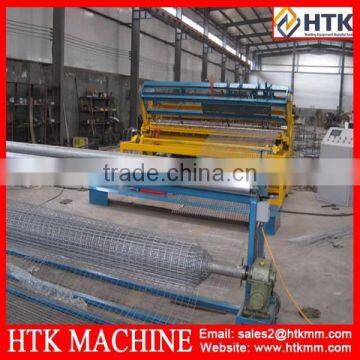

China Factory High Frequency (1.4-2.3mm)Automatic Welding Wire Mesh Equipment
Machine Description
1.The machine was synchronised with power electronic technology.
2.Mesh welding and welding time were controlled by PLC.
3.Weft and warp wire are pulled out from the whirlwind and the net was pulled with a flexible rod and grid position device.
4.It is easy to operate, only 2 person can complete the operation.
5.The mesh can be in roll or sheet.
Specification
Wire Dia | 1.4-2.3mm | Warp Form | Wire Coil |
Weft Wire Spacing | 50-200mm | Weft Form | Wire Coil |
Warp Spacing | 50-200mm | Rated Voltage | 380V |
Welding Width | 1200mm | Rated Power | 50KVA×2 |
Welding Speed | 55times/min | Overall Dimension | 2.4×2.4×1.4 |
Welding Point | 25 | Weight | 2.2T |
Application
1.enclosure fence, reinforcing mesh for pouring floor, road, etc.
2. used as construction network such as estazolam plate,geothermal net,seedbed net, flower room.
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.All machines were tested and adjusted before delivery.
4.Engineers avaliable to service machinery overseas:Worker-training, installation.etc.
5.24 hours technical support by e-mail or calling service.
Fence Machine | Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine | Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine | Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine | Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine | Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines | grassland mesh machine |
Reinforcing mesh welding machine | |
| Wire Nail Making machine | |
Expanded metal machine | |
Wire drawing machine |
Our Factory
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 2 senior engineers,10 senior technicians,more than 100 employees
· Our products: Field Fence and Field Fence Machine, Welded Wire Mesh Machine
· Our certifications: ISO 9001:2000, BV certification
· Our Main Market:South Africa, Mongolia,Asia, Dubai
Advantage of HTK factory
· We have professional engineer supervision
· The price preferential benefit
· Product quality assurance
· High production efficiency
· With credibility and protection
· Can visit the factory in person
· Good after sales service
· Business model: Factory direct
