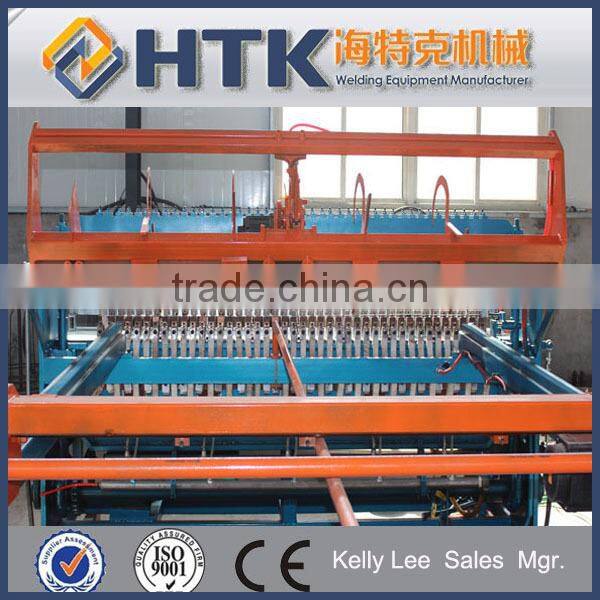

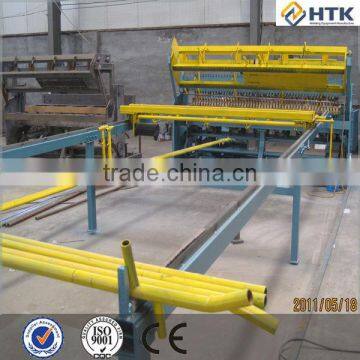

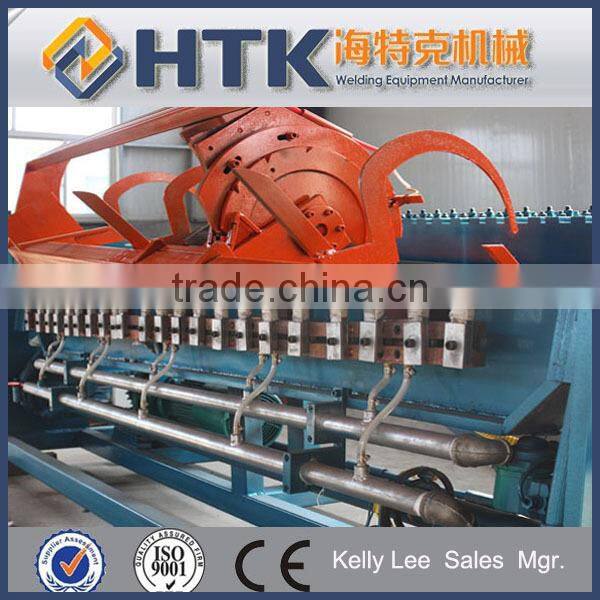

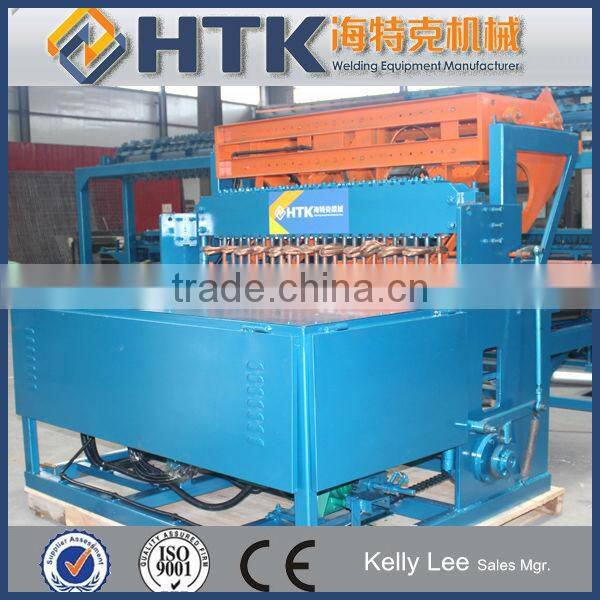

ISO BV Cert. Automatic Electric Wire Mesh Welding Machine

ISO BV Cert. Automatic Electric Wire Mesh Welding Machine

1.PLC Control
2.Openning:50-300mm
3.Speed:55times/min
4. ISO BV approved Factory

Machine Description:

1.New CNC Welding Machine uses the synchronous control technique,

   The separate-control and welding time are composed of PLC program system.

   The input panel falls into two types, touch screen or keyboard, which makes the operation more

   reasonable and more intelligentize.

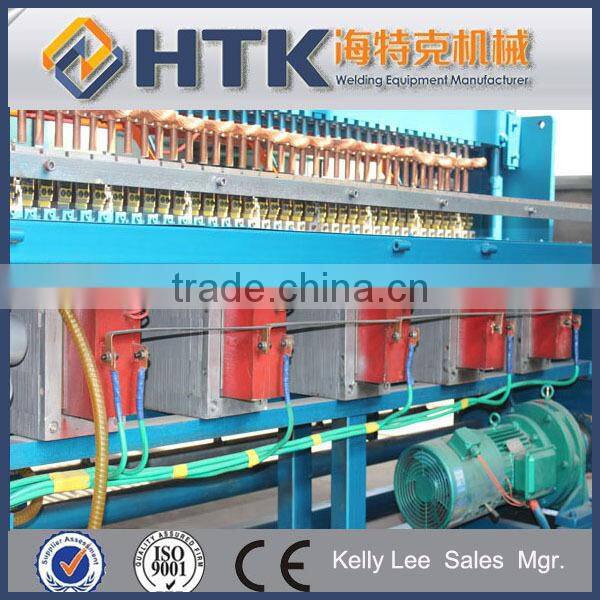

2.Welding using new and efficient welding transformer, expanding the scope of the

   welding wire diameter.

3.Netting system consists of servo motor control, not only improves the accuracy of mesh size, while

   ensuring the warp and weft of the distance between tunability.

Technical Parameters:

Note: Special type can be made according to client's requirement.

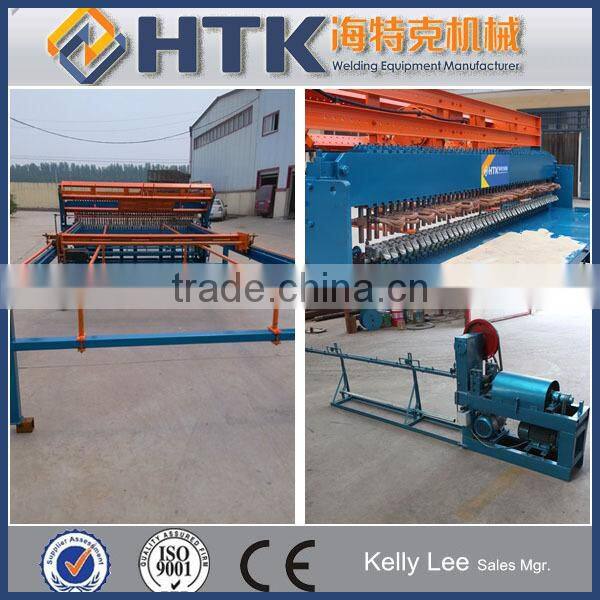

Auxiliaries: Wire Straightening and Cutting Machine

                    Spot Welder     Butt Welders     Air Pimp

Application:It is suitable for producing fence of Highway Guardrail, enclosure, construction, high-rise building, and mine timbering mesh.etc.

Details:

1.Control System: CNC(touch screen)

   Power System:electric motor

   Machine Cooling Device: Water Colling.

2.Adjustable Parts:

   Weft Wire Spacing and Warp Wire Spacing;

   Grid Size and High Precision, Wire Diameter could be adjusted within the range.

3.Machine transformer:

   120KVA, 160KVA, 180KVA, 200KVA, depened the machine wire diameter.

4.Calibration and Commissioning:

   Each machine in the factory will be strict calibration and commissioning by our engineers,and all the

   debugging working will be done before delivery.

5.Install:

   Photos and Video will be offered for your refer.

  The machine need not install the anchor bolt, only need to put on the ground of plant,easily to done.
