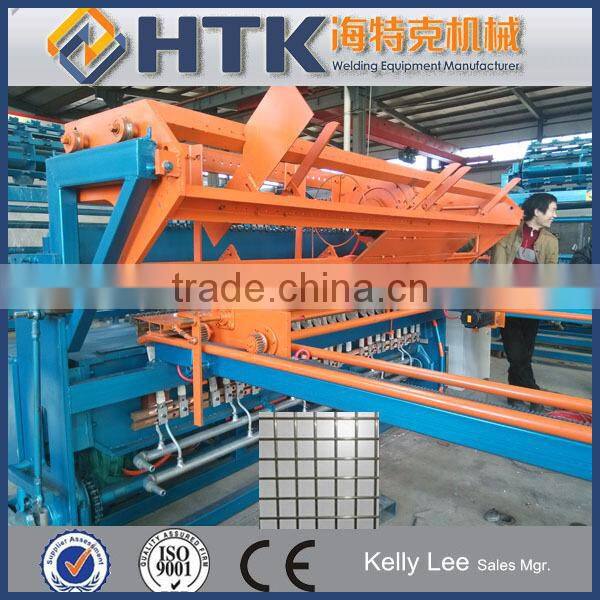

Welded Wire Mesh Machine Factory
Welded Wire Mesh Machine Factory
1.Wire Dia:2.8-5.0 5.0-8.0mm
2.Wire Form: Precut Wire
4.One Year Warranty
5.ISO BV Factory
Items |
DNW-4 |
DNW-4-1 |
DNW-4-2 |
Welding width |
2500mm |
2500mm |
2000mm |
Weft Spacing |
25-200mm |
25-200mm |
50-300mm |
Warp Spacing |
50-300mm |
50-300mm |
50-300mm |
Wire dia |
2.8-5.0mm |
3.0-6.0mm |
5.0-8.0mm |
Welding speed |
30times/min |
30times/min |
40times/min |
Rated Power |
160KVA x 4 |
180KVA x 6 |
200KVA x5 |
Rated voltage |
380V |
380V |
380V |
Overall dimension |
3.1x 8x 1.9 |
3.1x 8x 1.8 |
2.6 x 7x 1.8 |
Notes: 1.Special specifications can be made as your requirement.
2.Warranty: One Year.
Fence Machine |
Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine |
Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine |
Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine |
Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine |
Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines |
grassland mesh machine |
Reinforcing mesh welding machine | |
Shuttless weaving machine | |
Expanded metal machine | |
Wire drawing machine |
Packaging: in pallets, in plastic film or as per customers’ requirements.
Shipping: within 25days after receiving the prepayment or relevant L/C.
Guarantee and After-saleService:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.All machines were tested and adjusted before delivery.
4.Engineers avaliable to service machinery overseas: Worker-training, installation.etc.
5.24 hours technical support by e-mail or calling service.
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 2 senior engineers,10 senior technicians,more than 100 employees
- Our products: Field Fence and Field Fence Machine, Welded Wire Mesh Machine
- Our certifications: ISO 9001:2000, BV certification
- Our Main Market:South Africa, Mongolia,Asia, Dubai
Advantage of HTK factory
- We have professional engineer supervision
- The price preferential benefit
- Product quality assurance
- High production efficiency
- With credibility and protection
- Can visit the factory in person
- Good after sales service
Business model: Factory direct.
Payment: 30%TT in advance and pay off the balance against the copy of B/L.
MOQ: 1 Set.
