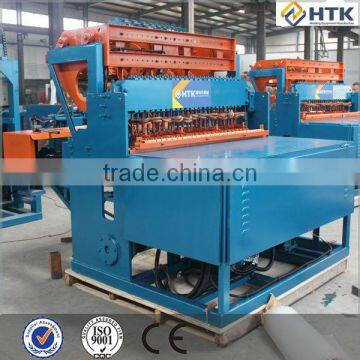

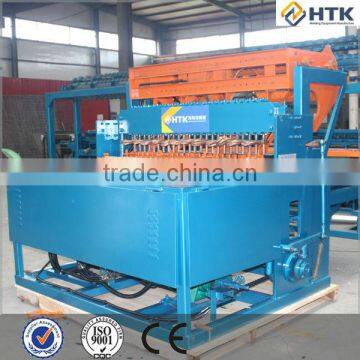

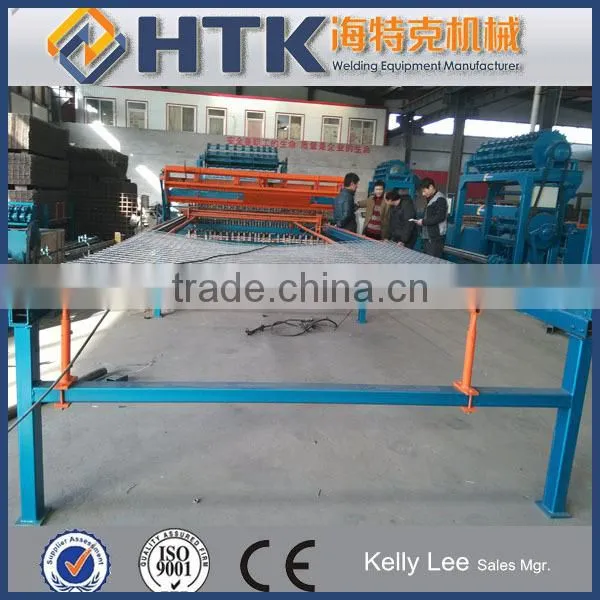

ISO approved Automatic Wire Mesh Fence Making Machine
- 2 Set / Sets per Month
- XINGANG CHINA
- T/T Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | HTK | Model Number: | DNW-2000 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
ISO approved Automatic Wire Mesh Fence Making Machine
1.ISO BV approved Factory Direct
2.Wire Dia:2.5-6.0mm
3.Openning:50-300
4.Special Customized
Machine Description:
1.New CNC Welding Machine uses the synchronous control technique,
The separate-control and welding time are composed of PLC program system.
The input panel falls into two types, touch screen or keyboard, which makes the operation more
reasonable and more intelligentize.
2.Welding using new and efficient welding transformer, expanding the scope of the
welding wire diameter.
3.Netting system consists of servo motor control, not only improves the accuracy of mesh size, while
ensuring the warp and weft of the distance between tunability.
Technical Parameters:
Items | Automatic Wire Mesh Welding Machine(DNW-4) | |||
Wire Diameter | 2.5-6.0mm | 2.5-6.0mm | 2.5-6.0mm | 2.5-6.0mm |
Welding Width | 1500mm | 2000mm | 2500mm | 3000mm |
Weft Spacing | 50-300mm | 50-300mm | 50-300mm | 50-300mm |
Warp Spacing | 50-300mm | 50-300mm | 50-300mm | 50-300mm |
Welding Speed | 60times/min | 60times/min | 60times/min | 60times/min |
Welding Point | 31 | 41 | 51 | 61 |
Rated Power | 160KVA x 4 | 160KVA x 5 | 160KVA x 6 | 160KVA x 7 |
Rated Voltage | 380V | 380V | 380V | 380V |
Weight | 2.0T | 2.5T | 3.0T | 3.5T |
Length | 6000mm | 6000mm | 6000mm | 6000mm |
Overall Dimension | 2.1 x7 x1.7 | 2.6 x7 x1.7 | 3.1 x7 x1.7 | 3.6 x7 x1.7 |
Note: Special type can be made according to client's requirement.
Auxiliaries: Wire Straightening and Cutting Machine
Spot Welder Butt Welders Air Pimp
Application:It is suitable for producing fence of Highway Guardrail, enclosure, construction, high-rise building, and mine timbering mesh.etc.
Details:
1.Control System: CNC(touch screen)
Power System: electric motor
Machine Cooling Device: Water Colling.
2.Adjustable Parts:
Weft Wire Spacing and Warp Wire Spacing;
Grid Size and High Precision, Wire Diameter could be adjusted within the range.
3.Machine transformer:
120KVA, 160KVA, 180KVA, 200KVA, depened the machine wire diameter.
4.Calibration and Commissioning:
Each machine in the factory will be strict calibration and commissioning by our engineers,and all the
debugging working will be done before delivery.
5.Install:
Photos and Video will be offered for your refer.
The machine need not install the anchor bolt, only need to put on the ground of plant,easily to done.
Fence Machine | Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine | Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine | Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine | Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine | Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines | grassland mesh machine |
Reinforcing mesh welding machine | |
Shuttless weaving machine | |
Expanded metal machine | |
Wire drawing machine |
Packaging: with wooden pallets, in plastic film or as per customers’ requirements.
Shipping: within 20 days after receiving the prepayment or relevant L/C.
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.Factory Own Designing and Inspection Team.
4.All machines were tested and adjusted before delivery.
5.Engineers avaliable to service machinery overseas: Worker-training, installation.etc.
6.24 hours technical support by e-mail or calling service.
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 5 senior engineers,10 senior technicians,more than 100 employees.
1.Our products: Welded Wire Mesh Machine
2.Certifications: ISO 9001:2000, BV certification
3.Main Markets:South Africa, Mongolia,Asia, Duba,Algeria, American, West Europe,etc.
Advantages of our factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by BV.
5)Have our own inspection team to do the quality control.
1.MOQ: One Set.
2.Payment: 30% TT in advance and pay off the balance against the copy of B/L.
Or L/C at sight,Western Union.etc.
3.Machine Specifications could be made as per your requirements.
4.Welding Width,Length,the Rated Voltage and Power all could be special customized.
Welcome to visit 15 years old factory!!!
