barbed wire machine
Razor barbed wire machine
Punching Machine (Note: mould can be changed) | ||
Model | Five strip | Nine strip |
Voltage | according to clients voltage | according to clients’ voltage |
Power | 2.2kw | 2.2kw |
Producing speed | 220-280m/h | 220-280m/h |
Pressure | 40Ton | 63Ton |
Weight | 1500kgs | 2200kgs |
Thickness of sheet | 0.5±0.05(mm) | 0.5±0.05(mm) |
Dimension(mm) | 1200*1000*1900 | 1100*1000*2000 |
| ||
Coiling Machine | ||
Rated voltage | 380V, 50Hz | |
Power | 1.5kw | |
Producing speed | 80kg/h | |
Weight | 300kgs | |
Diameter of wire | 2.5mm | |
Dimension | 1100mm*750mm*1200mm | |

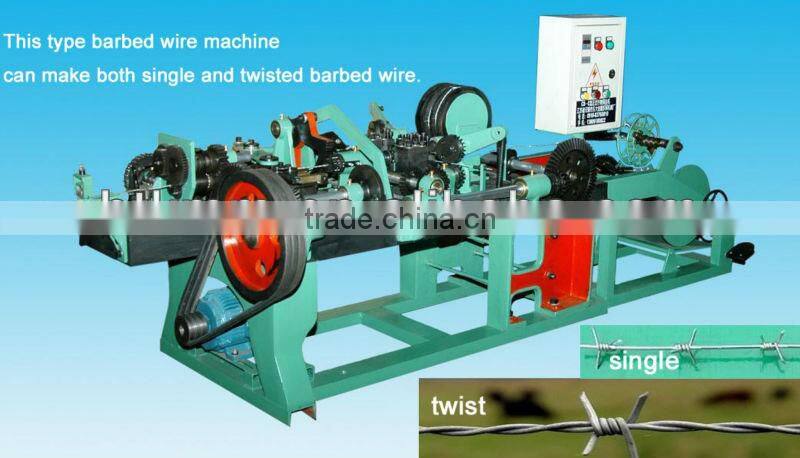

Specification of barbed wire machine
1. TYPE A
Barbed Wire Machine Type A (special type can be made according to client’s request!) | |
Motor | 2.2kw |
Main drive shaft speed | 355r/min |
Strand wire diameter | 2.2-3.0mm |
Barbed wire diameter | 1.8-2.2mm |
Barb distance | 102mm,127mm |
Output | 40kg/h |
Total weight | 1000kg |
Dimension | 3100mm*1000mm*1150mm |
2. TYPE B
Barbed Wire Machine Type B (special type can be made according to client’s request!) | |
Motor | 3kw |
Main drive shaft speed | 402r/min |
Strand wire diameter | 2.2-3.0mm |
Barbed wire diameter | 1.8-2.2mm |
Barb distance | 76mm,127mm |
Twist number | 3.5pcs |
Output | 70kg/h |
Total weight | 1200kg |
Dimension of main part | 1950mm*950mm*1300mm |
Dimension of take-twisting part | 1760mm*550mm*760mm |
