Product Details
| Place of Origin | Hebei, China | Brand Name | HTK | |
| Model Number | barbed wire machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

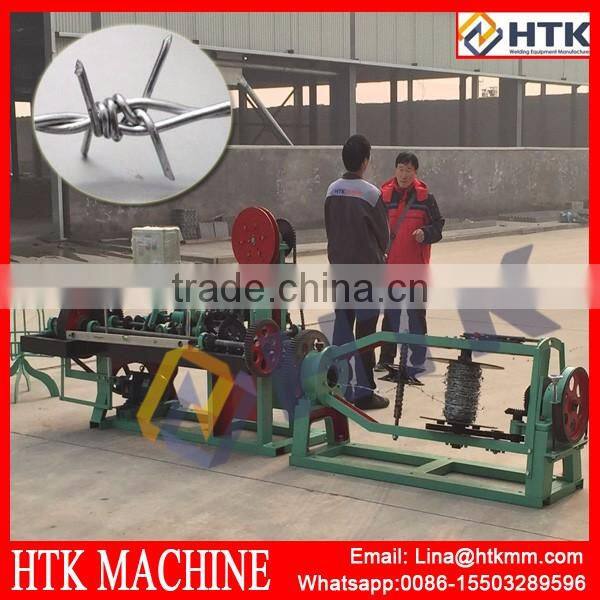

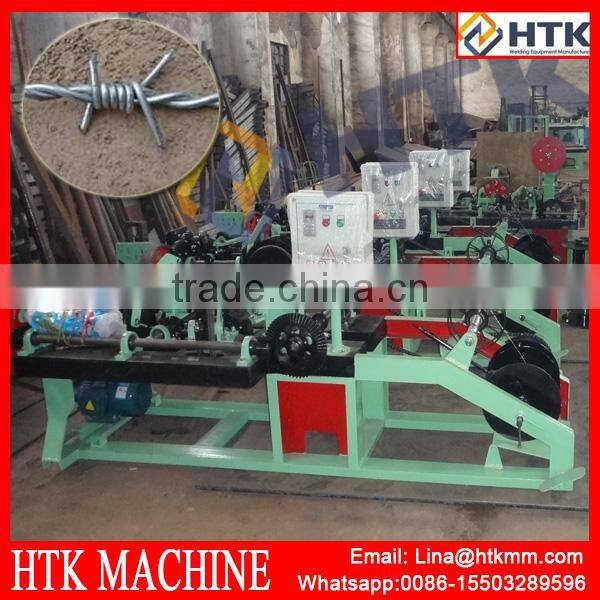

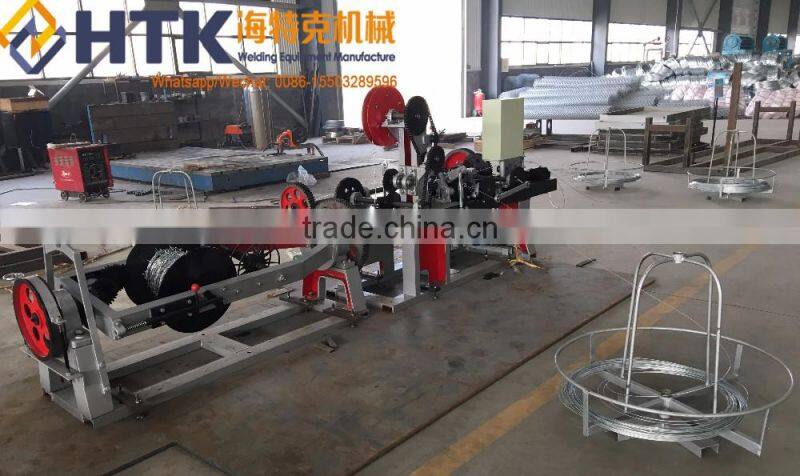

Best Price High Speed Automatic Double Strands Barbed Wire Machine, Reverse Twist Barbed Wire Making Machine

SGS/BV/ISO audited Automatic Barbed Wire Machine(manufacturer)
1.Double and Reverse Twist
2.WireDia:2-3mm(Barb:1.7-2.6)
3.Barb Distance:3-5"
4.SGS BV ISO Factory
Automatic Barbed Wire Machine/Concertina Wire Machine
CY-A:Traditional Double Twisted Barbed Wire Machine
1.It is designed to produce double-strand barbed steel wire.
2.The machine is of horizontal design,consisting of two parts,assembled together at the middle.
3.It is safe and reliable in operation,capable of turning out high quality products with consistency.
Items | Units | Parameters |
Motor | KW | 3 |
Main drive shaft speed | r/min | 402 |
Unit wire diameter | mm | 2.2-3.0 |
Barbed wire diameter | mm | 1.8-2.2 |
Barbed distance | mm | 76(3”)127(5”) adjustable |
Twist number | pcs | 3.5 |
Theoretical yield | kg/h | 150 |
Total weight | kg | 1200 |
Dimension of main part | mm | 1950x950x1300 |
Dimension of take-twisting part | mm | 1760x550x760 |
Note: Special type can be made according to client's requirement.
Accessory: Bobbin 4Units/Set

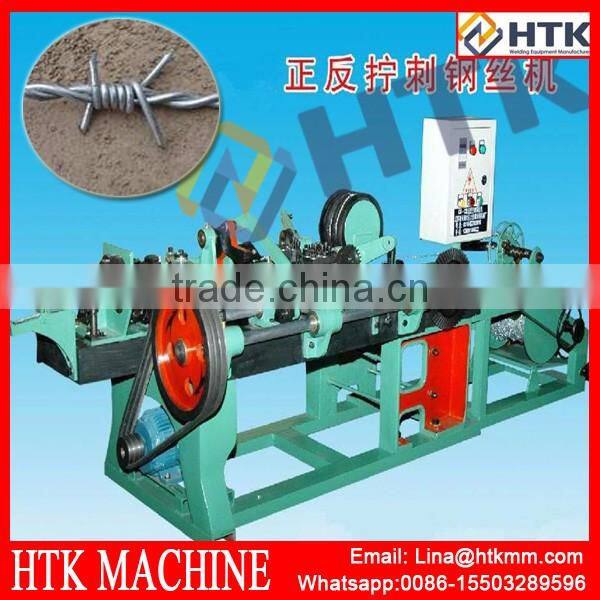

CY-B: Reverse Twist Barbed Wire Machine
1.Twistsis for Two-strand Wire with Two-way Twists can produce the barbed wire with two-way twists.
2.It could produce both single strand and double strands barbed wire.
3.This way is easy to operate and install as they will not entwist with each other.
Items | Units | Parameters |
Motor | KW | 2.2 |
Main drive shaft speed | r/min | 355 |
Unit wire diameter | mm | 2.2-3.0 |
Barbed wire diameter | mm | 1.7-2.6 |
Barbed distance | mm | 102 127 adjustable |
Twist number | pcs | 4 |
Output | kg/h | 60 |
Total weight | kg | 1000 |
Dimension | mm | 3100x1000x1150 |
Note: Special type can be made according to client's requirement.
Accessory: Bobbin 4Units/Set

Fence Machine | Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine | Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine | Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine | Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine | Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines | grassland mesh machine |
Reinforcing mesh welding machine | |
Shuttless weaving machine | |
Expanded metal machine | |
Wire drawing machine |
Packaging: with wooden pallets, in plastic film or as per customers’ requirements.
Shipping: within 15 days after receiving the prepayment or relevant L/C.
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.Factory Own Designing and Inspection Team.
4.All machines were tested and adjusted before delivery.
5.Engineers avaliable to service machinery overseas: Worker-training, installation.etc.
6.24 hours technical support by e-mail or calling service.
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 5 senior engineers,10 senior technicians,more than 100 employees.
1.Our products: Wire Mesh Machine
2.Certifications: SGS,BV,ISO 9001:2000 Certifications.
3.Main Markets:South Africa, Mongolia,Asia, Duba,Algeria, American, West Europe,etc.
Advantages of our factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by SGS,BV,ISO.
5)Have our own inspection team to do the quality control.
1.MOQ: One Set.
2.Payment: 30% TT in advance and pay off the balance against the copy of B/L.
Or L/C at sight,Western Union.etc.
3. Machine Specifications could be made as per your requirements.
4.Apply to:
1)Traditional Type Barbed Wire Machine could only manufacture the double strands barbed wire;
2)The Reverse Type could produce both single strands and double strands barbed wire.
5.Standard accessory: Bobbin 4 UNITS/Set
6.All the Barbed Distance could be adjustable.
