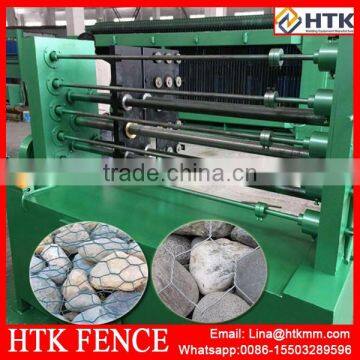

100 x 120mm Automatic Heavy Duty Gabion Mesh Machine With 3.0mm Wire Diameter
Gabion Mesh Machine/Hexagonal Wire Mesh Netting Machine
Advantages:
1. New type double rack drive gabion knitting machine
2. High efficiency: theoretic output=4.25m/min
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. The machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.
Specifications:
Style | Mesh size | Width | Wire diamater | Spindle Speed | Twist | power of motor | Theoretic output |
(mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) | |
LNWL23-60-2ZX | 60X80 | 2300 | 1.6-3.2 | 25 | 3 | 11 | 165 |
LNWL23-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
LNWL23-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
LNWL23-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
LNWL33-60-2ZX | 60X80 | 3300 | 1.6-3.2 | 25 | 3 | 15 | 165 |
LNWL33-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
LNWL33-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
LNWL33-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
LNWL43-60-2ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 3 | 22 | 165 |
LNWL43-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
LNWL43-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
LNWL43-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
LNWL43-60-3ZX | 60X80 | 1.6-3.2 | 25 | 5 | 165 | ||
LNWL43-80-3ZX | 80X100 | 1.6-4.0 | 5 | 195 | |||
LNWL43-100-3ZX | 100X120 | 1.6-4.0 | 5 | 225 | |||
LNWL43-120-3ZX | 120X150 | 1.6-4.2 | 20 | 5 | 255 |
Wire tension device&Netting winding machine
Spring coiling machine
Series Production Line
Fence Machine | Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine | Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine | Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine | Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine | Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines | grassland mesh machine |
Reinforcing mesh welding machine | |
Shuttless weaving machine | |
Expanded metal machine | |
Wire drawing machine |
Package: Stretch Film or Pallet
Payment:30% TT for advance payment, 70% TT after the copy of B/L.
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.All machines were tested and adjusted before delivery.
4.Engineers available to service machinery overseas: Worker-training, installation.etc.
5.24 hours technical support by e-mail or calling service.
Advantage of HTK Factory:
- We have professional engineer supervision
- The price preferential benefit
- Product quality assurance
- High production efficiency
- With credibility and protection
- Can visit the factory in person
- Good after sales service
- Business model: Factory direct
Payment: 30%TT in advance and pay off the balance against the copy of B/L.
MOQ: 1 Set Gabion mesh machinery(manufacture).
Welcome to visit 15 years old factory!!!
