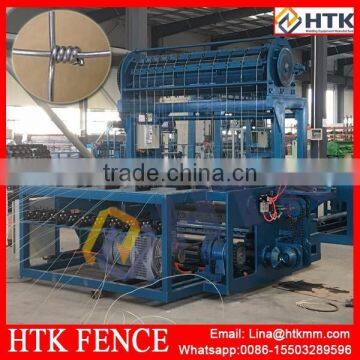

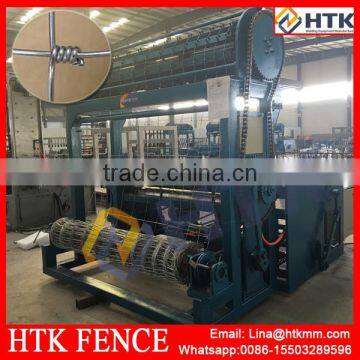

Automatic Machine for Manufacturing Farm Guard Fence
Description and Details
1.Adops sophisticated computer control, advanced production technology.
It can weave the weft and warp wire automatically together to form the field fences.
2.Reliable property, high efficient, simple operation, low-cost maintenance.
3.The finished products enjoy innovative structure, firm and precise weaving,neat and beautiful and diverse
specifications.HINGE JOINT:savings worth the price to have.
4.Material: galvanized wire, low-carbon steel wire, steel wire, iron wire.
Technical parameters:
Items | CY-A | CY-B | CY-C |
Fence Height | 1422mm | 1880mm | 2000mm |
Power | 5.5KW | 7.5KW | 7.5KW |
Speed | ≤45knock/min | ≤45knock/min | ≤45knock/min |
Wire diameter | 1.9-2.5mm | 1.9-2.5mm | 1.9-2.5mm |
Edge diameter | 2.0-3.5mm | 2.0-3.5mm | 2.0-3.5mm |
Voltage | 380V-3P-50HZ | 380V-3P-50HZ | 380V-3P-50HZ |
Weight | 3.5T | 3.8T | 4.0T |
Overall dimension | 2800*3200*2400 | 3300*3200*2400 | 3700*3200*2400 |
Note: Special type can be made according to client's requirement.
Auxiliaries: Bobbin Spot Welder Air Pump
2. Specification of Field Fence:
No. | Number of Horizontal Wire | High | Vertical Spacing (mm) | Distance of Horizontal Wire |
CYF0744 | 7 | 44’(1.13m) | 150 | 5.5+6+7+8+9+9+9” |
CYF0845 | 8 | 45’(1.15m) | 150 | 4.5+5+5.5+6+7+8+9” |
CYF0939 | 9 | 36’(0.99m) | 150 | 3+3.5+4+4.5+5+5.5+6+7” |
CYF1047 | 10 | 47’(1.19m) | 150 | 3+3.5+4+4.5+5+5.5+6+7+8” |
CYF1374 | 13 | 74’(1.88m) | 150 | 3+3.5+4+4.5+5+5.5+6+7+8+9+9+9 |
CYF1259 | 12 | 59’(1.50m) | 150 | 20cm×3+15cm×2+10cm×6 |
CYF1347 | 13 | 47’(1.20m) | 150 | 10cm×12 |
CYF1571 | 15 | 71’(1.80m) | 150 | 20cm×3+15cm×2+10cm×9 |
CYF1779 | 17 | 79’(2.00m) | 150 | 20cm×3+15cm×2+10cm×11 |
CYF2195 | 21 | 95’(2.40m) | 150 | 20cm×3+15cm×2+10cm×15 |
Fence Machine | Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine | Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine | Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine | Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine | Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines | grassland mesh machine |
Reinforcing mesh welding machine | |
| Wire Nail Making machine | |
Expanded metal machine | |
Wire drawing machine |
Packaging: packed by plastic film in pallet or according to client's requirement.
Shipping: within 15-20days after receiving the prepayment or relevant L/C.
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.Factory Own Designing and Inspection Team.
4.All machines were tested and adjusted before delivery.
5.Engineers avaliable to service machinery overseas: Worker-training, installation.etc.
6.24 hours technical support by e-mail or calling service.
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 5 senior engineers,10 senior technicians,more than 100 employees.
1.Our products: Field Fence Machine Welded Wire Mesh Machine
2.Certifications: ISO 9001:2000, BV,SGS certifications.
Advantages of our factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by SGS,BV,ISO.
5)Have our own inspection team to do the quality control.
1.MOQ: One Set.
2.Speed:45knocks/min Output:300-360m/h.
3.Machine Voltage: could be made as per customers' local required Voltage.
4.Machine Specifications(such as the Width..):
could be made as per customers’ requirements.
5.Horizontal Wire Spacing was fixed,couldnot be changed,
Vertical Spacing could be adjusted from 5-60cm,it must be must be a multiple of 5.
