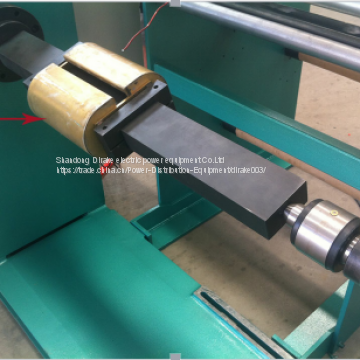

Transformer Precision Winding Machine
US$ 10000 - 12000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Dirake
Place of Origin:
China
Model Number:
08011100
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
20 days
Related Products
-
Transformer Automatic Foil Winding Machine of Professional ProviderUS$ 8000 - 10000MOQ: 1 Set -
Industrial HDPE Helical Winding Machine With Integrated Heating & CuttingNegotiableMOQ: 1 Set
-
Winding MachineNegotiableMOQ: 2500 Sets
-
Tomato Hook Winding MachineNegotiableMOQ: 1
-
Spiral Winding Core Making MachineUS$ 5000 - 30000MOQ: 1 Set
Brand Name
Dirake
Place of Origin
China
Model Number
08011100
Usage:
Widely Used in Distribution Transformer, Dry Transformer,Reactor and Similar Process of HV Coil Winding.
Composition:
Winding Host
Automatic Wire Guide Traversing Mechanism
Insulation Layer Decoiler

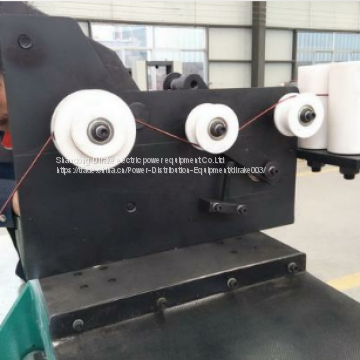

Round Wire and Flat Wire Decoiler with Tension Control
PLC Control
Operation Touch Screen
Pneumatic System and Foot Pedal
technical parameter:
| ModelGRX-1100GeneralDimension3150×1950×1980mmWeight1600kgPower supply3×220(380)(415)V 50(60)HZ for you needWhole power5 KWCoilCoil diameter80-600mmCoil width (Max)1100mmCoil weight(Max)1000kgCoil cross sectionRound,oval,rectangleConductorsRound wire diameterΦ0.3mm—Φ3mmFlat wire3×12mmWinding shaftSpeed adjustment methodFrequency stepless controlRotation speed (Max)240rpm or 450rpmTorque300Nm or 1000NmTraverse typeAC Servo Motor driven with ball screw,gap between each turns 0.01mmWire traverse width1100mm |
