Product Details
Place of Origin: | Hebei, China | Brand Name: | HTK | Model Number: | CS-B |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

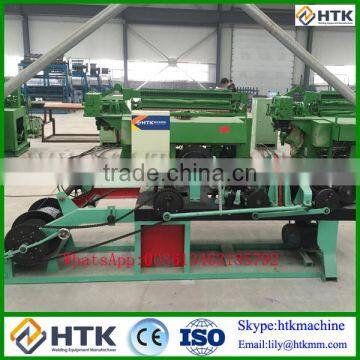

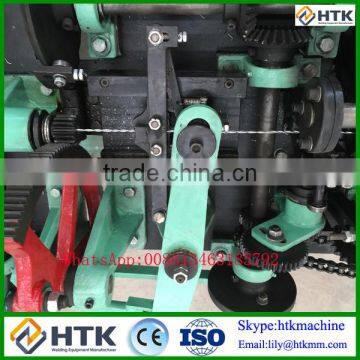

HTK barber wire fence machinery, double twisted barbed wire machine
Description of HTK barber wire fence machinery, double twisted barbed wire machine
barbed wire making machine
Best price barbed wire machine can produce barbed wire which is extensively used in national defenses, military, railway, agriculture, animal husbandry and other industries.
Suitable material is galvanized wire.
Technical parameter of barbed wire making machine
Model | CS-A | CS-B | CS-C |
Motor power | 2.2KW | 2.2KW | 2.2KW |
Main drive shaft speed | 402 r/min | 355 r/min | 355 r/min |
Wire diameter | 2.2-3mm | 2.2-3mm | 1.6-2.8mm |
Barb wire diameter | 1.8-2.2mm | 1.8-2.2mm | 1.6-2.2mm |
Barbed space | 76mm/ 102mm/ 127mm | 102mm/ 127mm | 102mm/ 127mm |
Twisted number | 3-5 | 7 | |
Production | 70 kg/h | 40 kg/h | 40 kg/h |
Weight | 1200kg | 1000kg | 1000kg |
Dimension | 1950×950×1300 | 3100 ×1000 ×1150mm | 3100 ×1000 ×1150mm |
Characteristic of the barbed wire machine:
1.Low noise
2.Easy to operate
3.Beautiful appearance
4.Easy to reset the electronic counter
5.Advanced electronic counter controls the weight of barbed wire

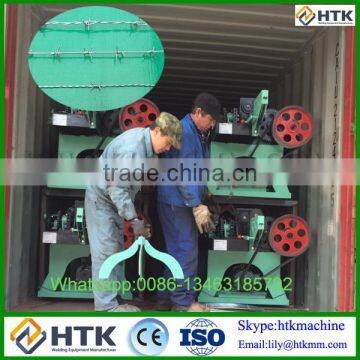

Packaging: with wooden pallets, in plastic film or as per customers’ requirements.
Shipping: within 15 days after receiving the prepayment or relevant L/C.
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.Factory Own Designing and Inspection Team.
4.All machines were tested and adjusted before delivery.
5.Engineers avaliable to service machinery overseas: Worker-training, installation.etc.
6.24 hours technical support by e-mail or calling service.
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 5 senior engineers,10 senior technicians,more than 100 employees.
1.Our products: Wire Mesh Machine
2.Certifications: SGS,BV,ISO 9001:2000 Certifications.
3.Main Markets:South Africa, Mongolia,Asia, Duba,Algeria, American, West Europe,etc.
Advantages of our factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by SGS,BV,ISO.
5)Have our own inspection team to do the quality control.
1.MOQ: One Set.
2.Payment: 30% TT in advance and pay off the balance against the copy of B/L.
Or L/C at sight,Western Union.etc.
3. Machine Specifications could be made as per your requirements.
4.Apply to:
1)Traditional Type Barbed Wire Machine could only manufacture the double strands barbed wire;
2)The Reverse Type could produce both single strands and double strands barbed wire.
5.Standard accessory: Bobbin 4 UNITS/Set
Welcome to visit 15 years old factory!!!
