High Speed Barbed Wire Making Machine Suppliers/Automatic Barbed Wire Making Machine
High Speed Barbed Wire Making Machine Suppliers/Automatic Barbed Wire Making Machine

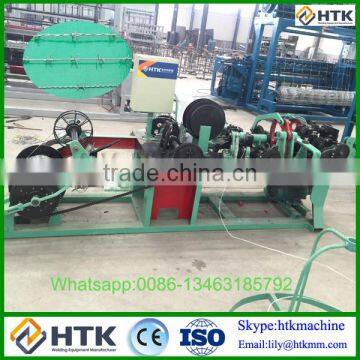

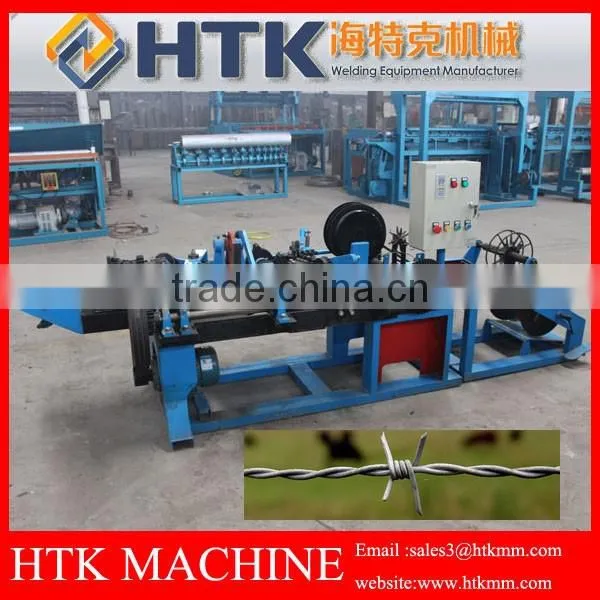

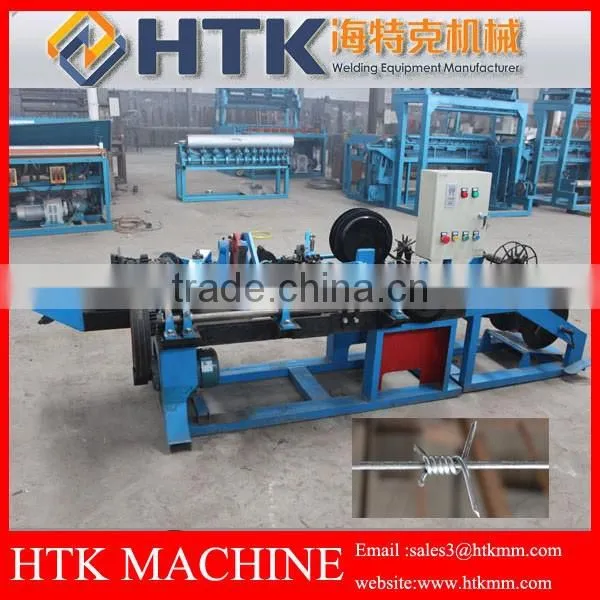

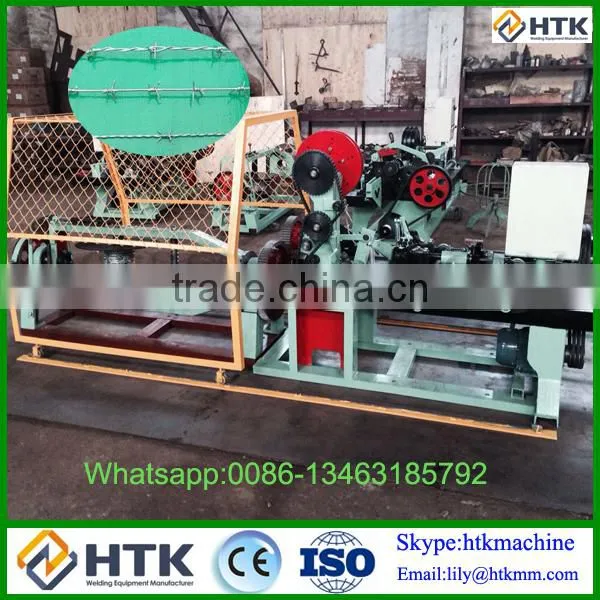

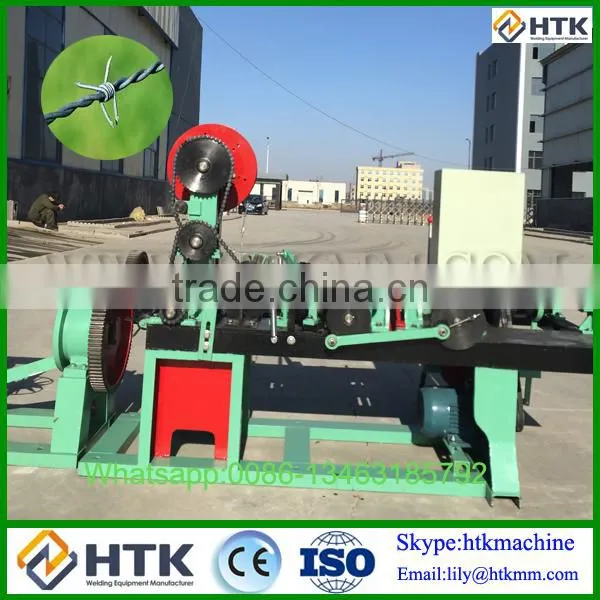

1)----Normal Double twisted Barbed Wire Making Machine

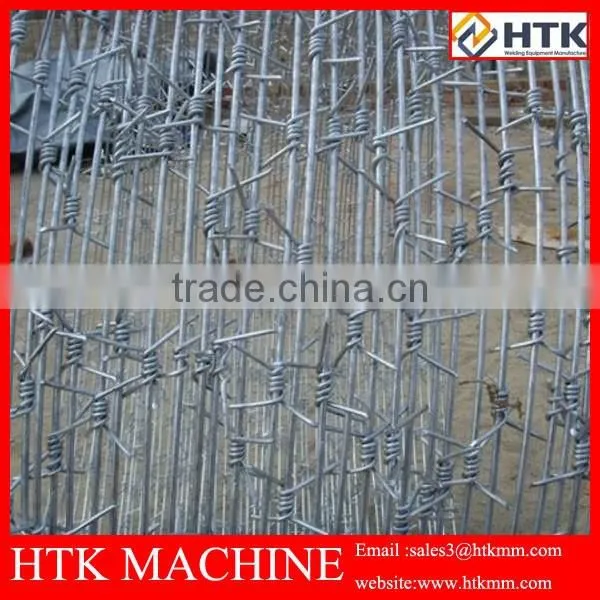

Automatic double twisted barbed wire making machine is designed to produce screens with single or double-strand barbed steel wire,thermo-plated with zinc.The machine is of horizontal design,consisting of two parts,assembled together at the middle.It is safe and reliable in operation,capable of turnning out high quality products with consistency.
Item |
|
Motor | 3kw |
Rated output | 70kg/h |
Weight | 1500kg |
Overall Dimension | 1900mmx1300mmx980mm |
Wire collection part size | 1800mmx750mmx750mm |
Barb pitch spacing | 3’’ 4’’ 5’’ 6’’ |
Twist | 4 |
Strand Diameter | 1.8-3.0mm |
Wire Diameter | 1.7-2.8mm |
Rotating Speed of Drive shaft | 432r/min |

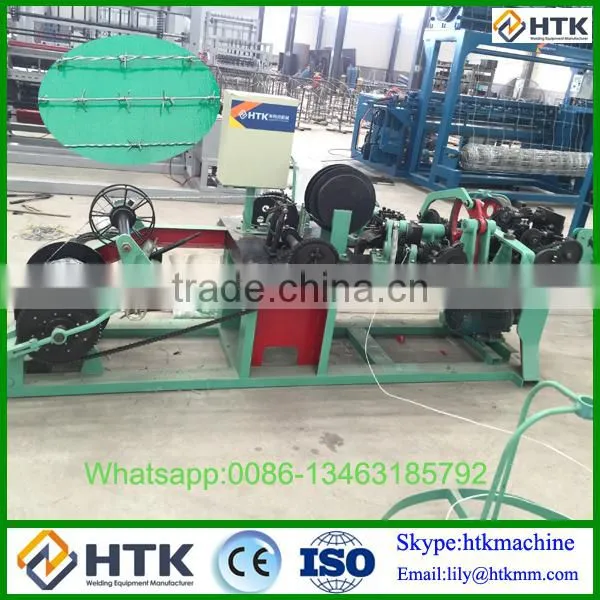

2)----single twisted Barbed Wire Making Machine
Single twisted Barbed Wire Making Machine is designed to produce screens with single or double-stranded barbed steel wire,thermo-plated with zinc.
Item |
|
Motor | 2.2kw |
Rated output | 50kg/h |
Weight | 1200kg |
Overall Dimension | 1900mmx1300mmx980mm |
Wire collection part size | 1300mmx800mmx700mm |
Barb pitch spacing | 3’’ 4’’ 5’’ or 4’’ 5’’ 6’’ |
Twist | 4 |
Strand Diameter | 1.6-2.8mm |
Wire Diameter | 1.6-2.6mm |
Rotating Speed of Drive shaft | 357r/min |
3)---Normal and Reverse Barbed Wire Making Machine
Item |
|
Motor | 2.2kw |
Rated output | 40kg/h |
Weight | 1200kg |
Overall Dimension | 1900mmx1300mmx980mm |
Wire collection part size | 1300mmx800mmx700mm |
Barb pitch spacing | 76mm 102mm |
Twist | 4 |
Strand Diameter | 1.6-2.8mm |
Wire Diameter | 1.6-2.2mm |
Rotating Speed of Drive shaft |
1. one year guarantee for whole machine
2. 24 hour technical support by e-mail
3. calling or door-to-door service
4. use-friendly English software, user manual and detail Videos/CD
