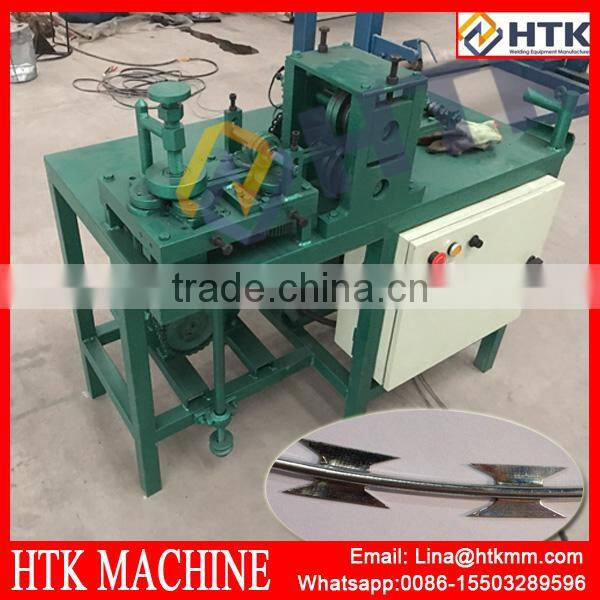

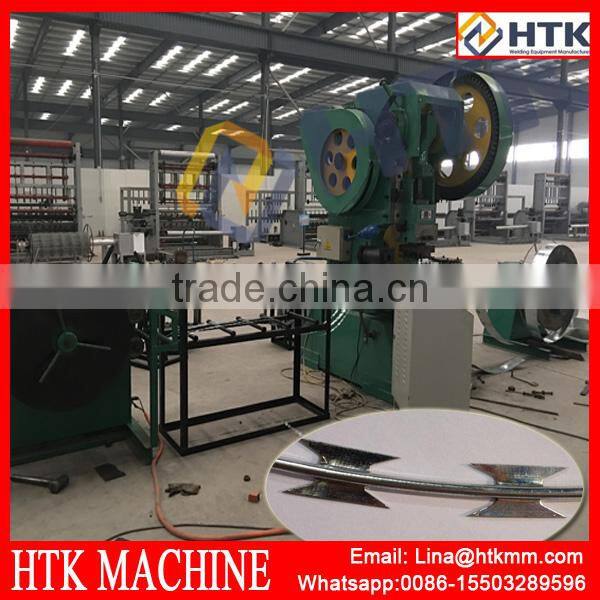

High Output Automatic Concertina Barbed Wire Machine
Razor Barbed Wire Machine
Razor Strip Thickness: 0.3-0.6mm
Wire Diameter: 2.5mm
Galvanized or Stainless Steel Sheet and Wire.
Descriptions
1.Razor Wire Machine (with one strip, with five strips, with nine strips)
2.Consists of: 1)main machine which can produce the strip plate
2)coiling machine which can coil the wire into the strip plate.
3.Output: 80kgs/h steel belt
4.High efficiency: light-style, easy to operate, high efficiency, can save 40% raw material.
Razor Wire Materials:
hot dipped galvanized steel sheet and wire, stainless steel sheet and wire.
Razor Barbed Wire Coil Diameter:
450mm; 500mm; 700mm; 980mm,as per your requirements.
Blade Types for Galvanized Razor Wire:
BTO-10,BTO-12,BTO-18,BTO-22,BTO-28,BTO-30,CBT-60,CBT-65,etc.
Specifications:
Punching Machine (Note: mould can be changed) | ||
Model |
Five strip |
Nine strip |
Voltage |
according to clients voltage |
according to clients’ voltage |
Power |
2.2kw |
2.2kw |
Producing speed |
220-280m/h |
220-280m/h |
Pressure |
40Ton |
63Ton |
Weight |
1500kgs |
2200kgs |
Thickness of sheet |
0.5±0.05(mm) |
0.5±0.05(mm) |
Dimension(mm) |
1200*1000*1900 |
1100*1000*2000 |
Coiling Machine | ||
Rated voltage |
380V, 50Hz |
|
Power |
1.5kw |
|
Producing speed |
80kg/h |
|
Weight |
300kgs |
|
Diameter of wire |
2.5mm |
|
Dimension |
1100mm*750mm*1200mm |
|
Note: The razor wire Coil diameter could be special customized.
Application:Mainly used in military facilities, communications stations, power distribution stations, border line of prisons, garbage dumps, community protection, schools, factories, farms and other safen.
Fence Machine |
Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine |
Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine |
Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine |
Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine |
Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines |
grassland mesh machine |
Reinforcing mesh welding machine | |
Shuttless weaving machine | |
Expanded metal machine | |
Wire drawing machine |
Packaging: with wooden pallets, in plastic film or as per customers’ requirements.
Shipping: within 20 days after receiving the prepayment or relevant L/C.
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.Factory Own Designing and Inspection Team.
4.All machines were tested and adjusted before delivery.
5.Engineers avaliable to service machinery overseas: Worker-training, installation.etc.
6.24 hours technical support by e-mail or calling service.
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 5 senior engineers,10 senior technicians,more than 100 employees.
1.Our products: Barbed Wire Mesh Machines
2.Certifications: SGS, ISO 9001:2000, BV certifications
3.Main Markets:South Africa, Mongolia,Asia, Duba,Algeria, American, West Europe,etc.
Advantages of our factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by SGS,BV,ISO.
1.MOQ: One Set.
2.Payment: 30% TT in advance and pay off the balance against the copy of B/L.
Or L/C at sight,Western Union.etc.
3.Machine Specifications could be made as per your requirements.
The Voltage and Power could be made as per your local needs.
4.Razor Barbed Wire Coil Diameter:
450mm; 500mm; 700mm; 980mm,as per your requirements.
