VOXLINK 120m HDMI Matrix Extender Over IP(Support Multipoint to Multipoint IR Control 1080P)EU

VOXLINK 120m HDMI Matrix Extender over IP(Support multipoint to multipoint IR control 1080P)EU

1.Introduction

120m HDMI Matrix Extender over IP is a device based on the standard TCP/IP protocol for transmitting HD audio and video source over LAN . It transmits your HD display with the high resolutions up to 120 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable. At the same time, it’s also convenient to transmit HDMI audio and video source by point-to-point, multipoint-to-multipoint and cascade connection mode.

2.Features & Specifications

Ø Support HDMI1.3/HDCP1.1&1.2

Ø Support point-to-point mode, multipoint-to-multipoint mode and cascade connection mode.

Ø Standard 802.3 Ethernet

Ø Support one way IR extension.

Ø Pure hardware design, plug and play, do not need to install additional software

3.Package Contents

Before attempting to use this unit, please check the packaging and make sure the

following items are contained in the shipping carton:

1) one piece of HDMI transmitter

2) one piece of HDMI receiver

3) Two pieces of DC 5V power supply

4) One pair of IR transmitter and receiver

5) User’s Manual

4.Physical interface diagram

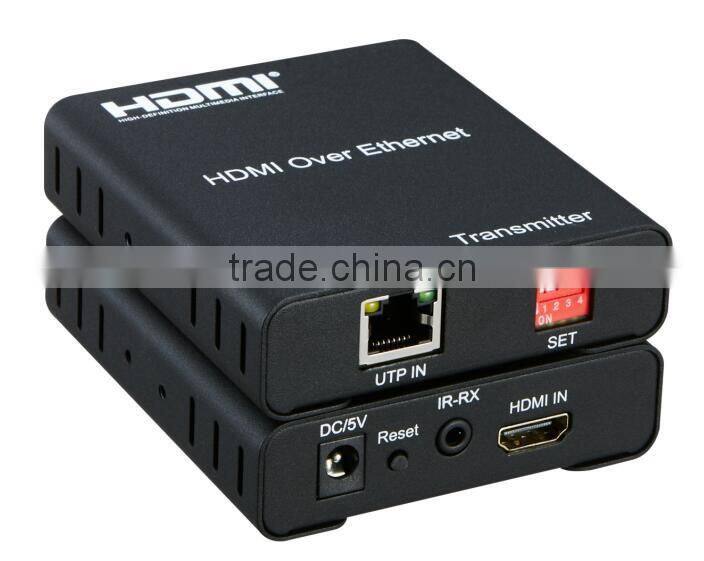

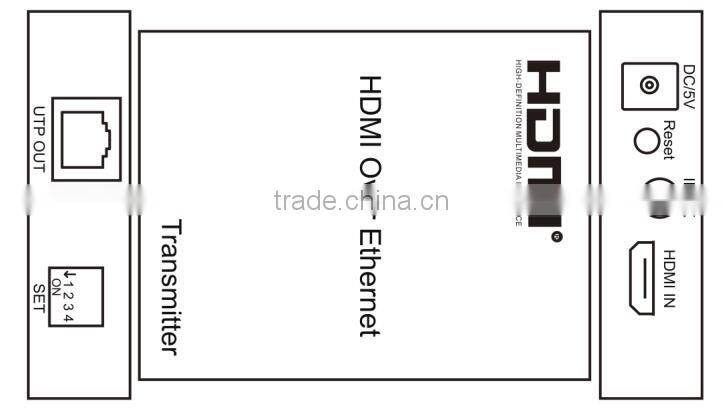

HDMI Transmitter

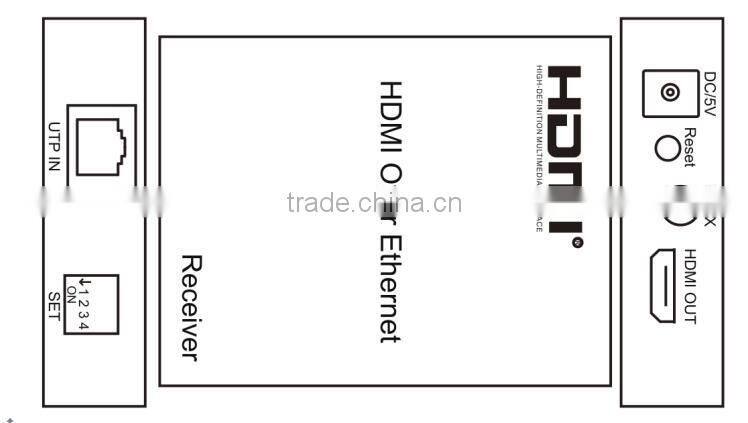

HDMI Receiver

5.Connection and operation

1) Connect the HDMI source to the HDMI Transmitter with HDMI cable

2) Connect the HDMI receiver to the HDTV display with HDMI cable.

3) Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver.

4) Connect the “IR receiver “into “IR-TX” port on transmitter, and “IR transmitter ” into the “IR-RX” on receiver, and make sure the IR transmitter aim at IR receiver of the controlled device if you need the IR control function.

5) Connect two pieces of 5V power supply to the transmitter and receiver, power supply for the equipment and the LED indicator light on. When status lamp on and flicker, equipment starts normal.

6) Multipoint to multipoint match setting: when multipoint to multipoint connecting and multiple TX and multiple RX connect to the switch , the IP extender can match based on “SET” setting (eg: “SET” of TX is 0001, “SET” of RX is 0001).

6.Application diagrams

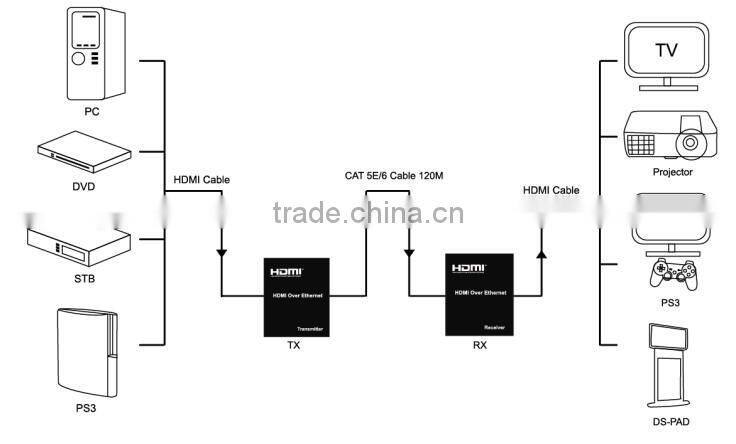

Application 1: point to point application

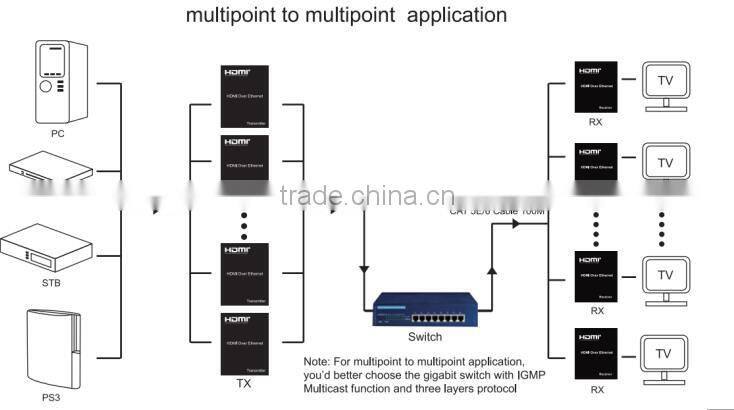

Application 2: multipoint to multipoint application

Note: For multipoint to multipoint application, you’d better choose the gigabit switch with IGMP Multicast

 function and three layers protocol
