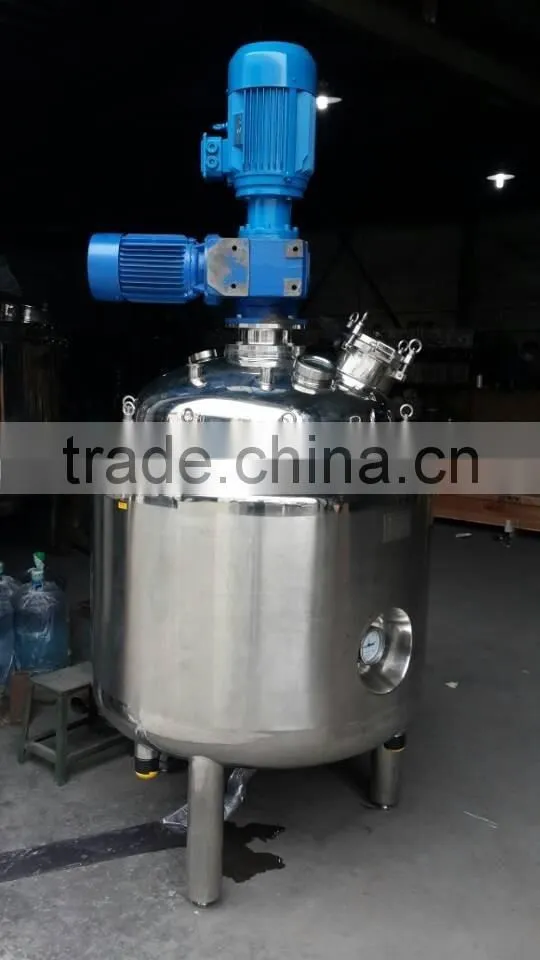

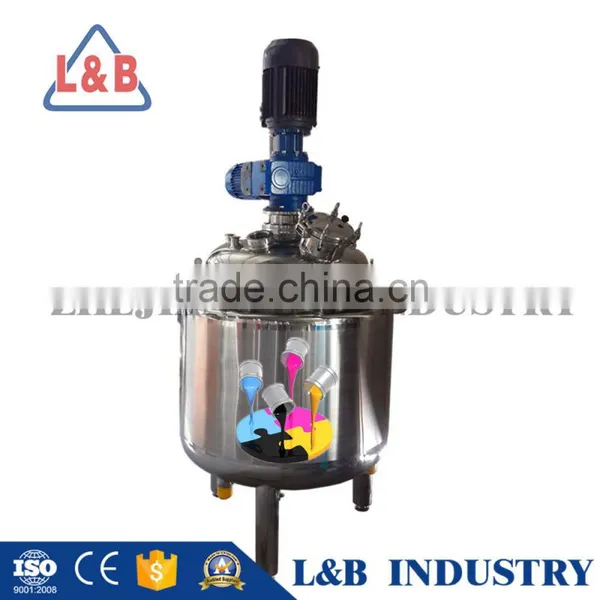

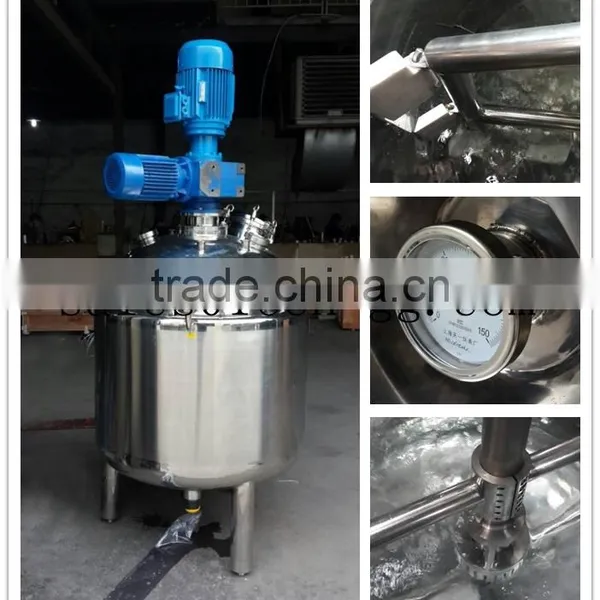

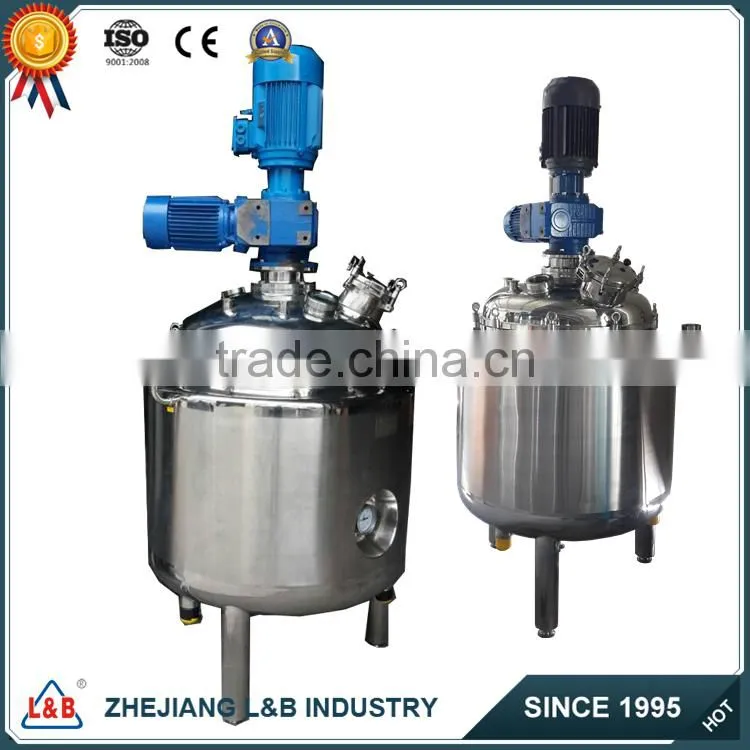

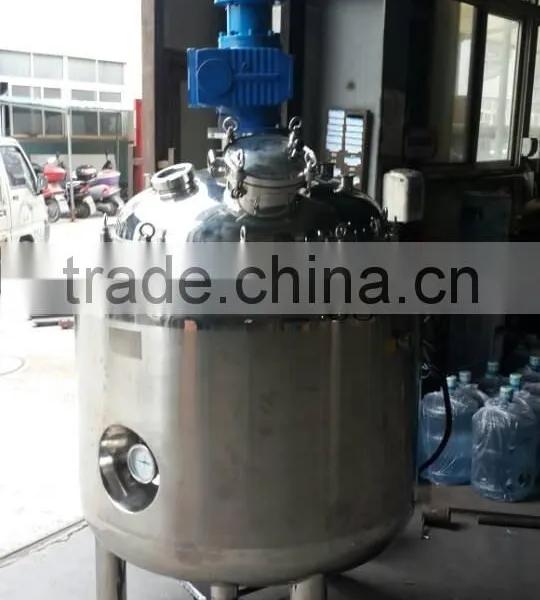

Heating Jacketed Automatic Vacuum Paint Emulsifying Mixer
Brand: L&B
Material : stainless steel 304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO9001:2000
Product Name: |
Heating Jacketed Automatic Vacuum Paint Emulsifying Mixer |
Description: |
Designed according to ISO9001/GMP standard, widely used for mixing liquid medium in the food-processing, cosmetics and pharmaceutical industries
|
Heating method |
By electricity (oils or water), by steam, by gas
|
Material: |
SS304/SS316L
|
|
jacket: dimple jacket/ miller board, hollow jacket or coil pipe jacket etc.
| |
|
insulation layer: PU Foam
| |
|
as to the thickness, we can make it according to your requirement.
| |
Optional Configuration |
1.manhole
|
|
2.CIP spraying ball
| |
|
3.adjusting feet
| |
|
4.sample valve
| |
|

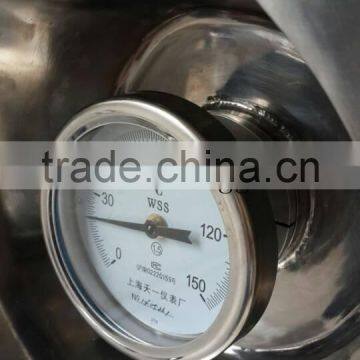

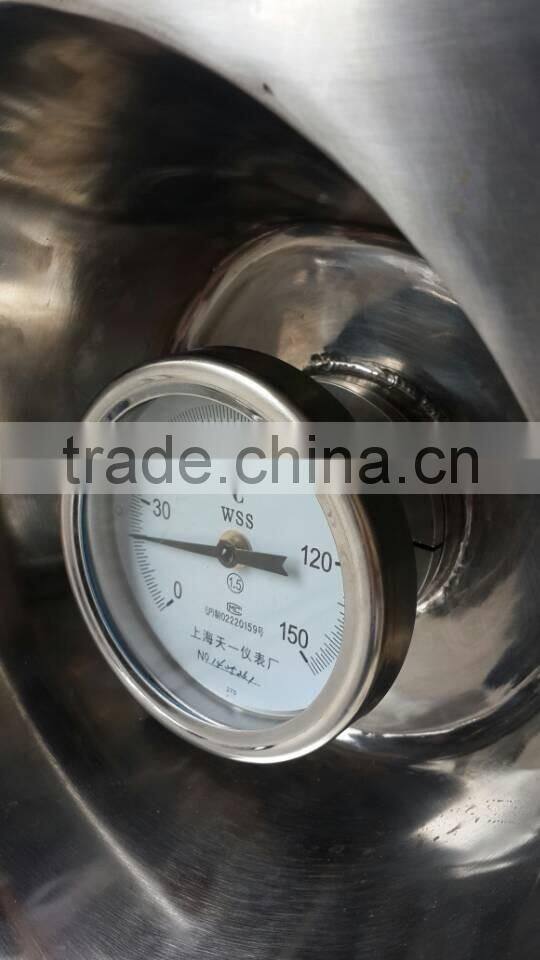

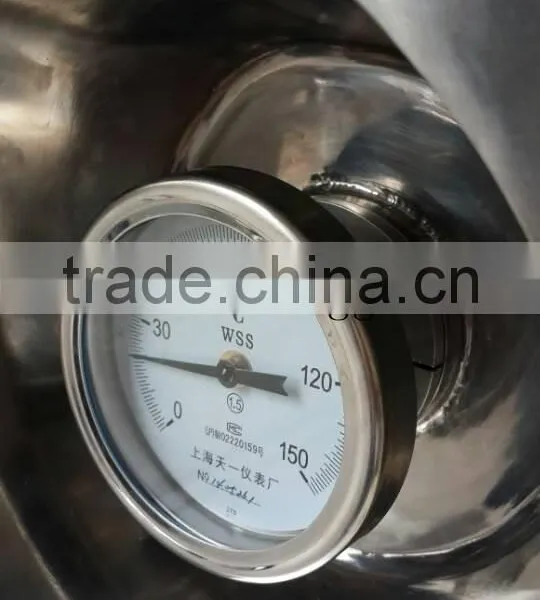

5.temperature gauge
| |
|
ure gauge
| |
|
7.level gauge
| |
Capacity: |
50L-10000L
|
Agitator: |
With agitator or not
|

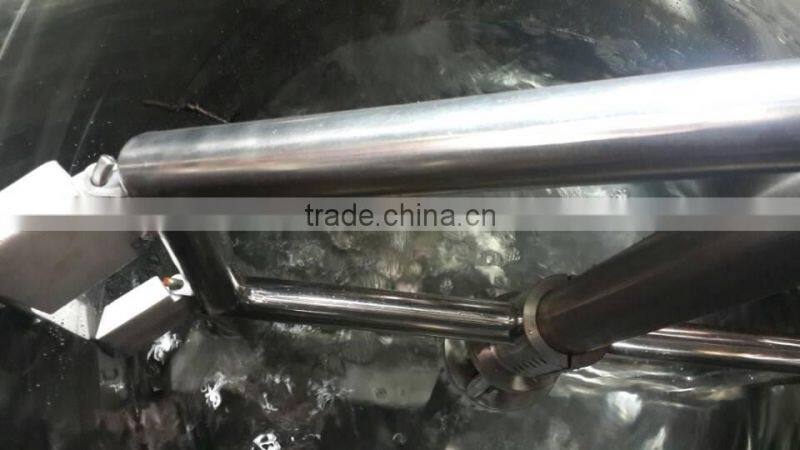

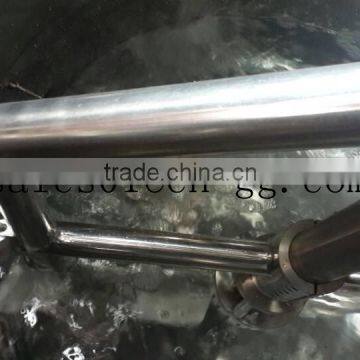

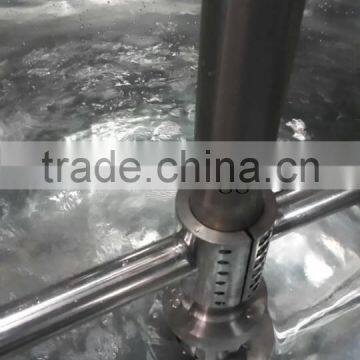

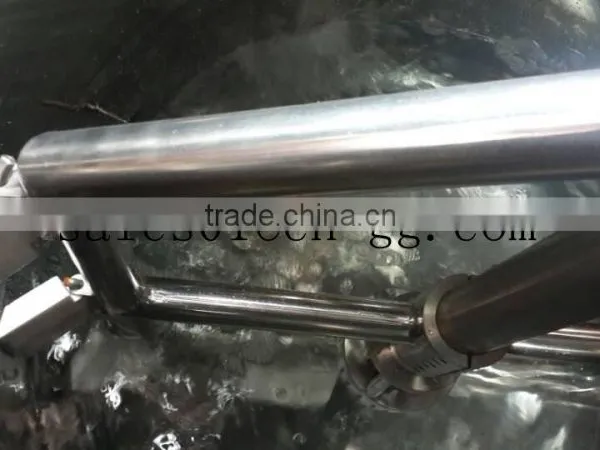

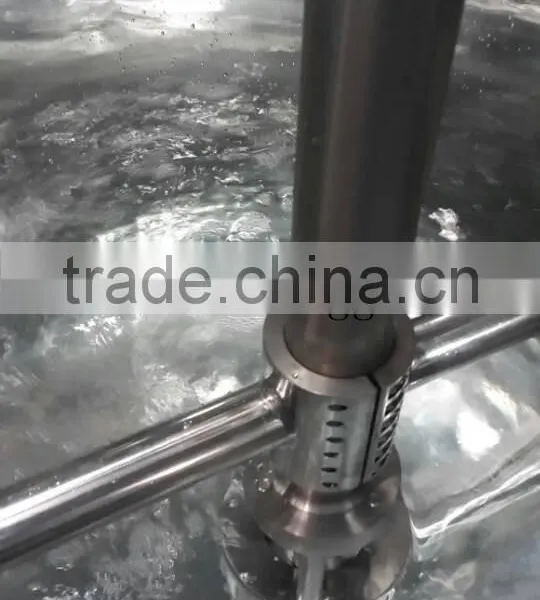

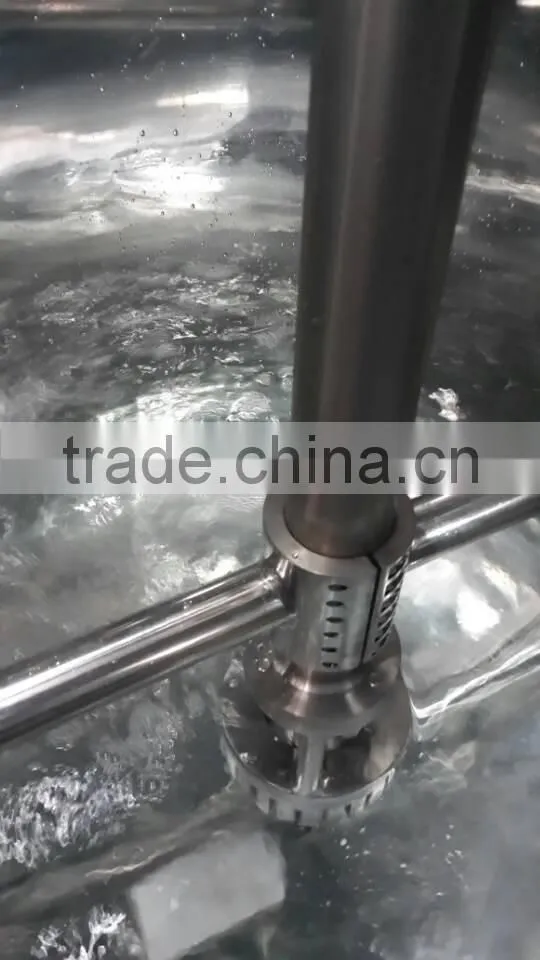

Agitator type |
Frame, paddle, scraper, homogenizer, turbo type etc.
|
Agitator Speed |
20-36rpm, 50-300rpm, 760-1450rpm, 2800-3000rpm
|
Mechanical seal: |
SIC/SiC/EPDM(Standard)
|
Agitator power: |
0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW
|
Sealing option: |
Sanitary single mechanical seal/Double mechanical seal with cooling system
|
Voltage: |
110-480V, 50/60Hz
|
Motor: |
ABB, LOCAL,50hz/ 60hz
|
Surface treatment: |
Inner polished and outside polished
|
Available connection: |
Clamp, Thread Butt weld, Flange
|
Available standard: |
DIN, SMS, 3A, RJT, ISO/IDF
|
Operated: |
Electric
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc
|
Packaging Details: |
Plywood case Or as per the request of customers
|
Delivery details: |
Usually within 35 days after receiving T/T down payment
|
Volume (L) |
Dimension D*h (mm*mm) |
Height (mm) |
In/Outlet diameter (mm) |
Heat preservation layer |
1000 |
1060*1220 |
2550 |
51 |
60 |
1500 |
1160*1500 |
2850 |
51 |
60 |
2000 |
1340*1500 |
2900 |
51 |
60 |
3000 |
1410*2000 |
3400 |
51 |
60 |
4000 |
1620*2000 |
3450 |
51 |
60 |
5000 |
1810*2000 |
3500 |
51 |
60 |
6000 |
1930*2000 |
3550 |
51 |
60 |
7000 |
1930*2440 |
4000 |
51 |
60 |
8000 |
2060*2440 |
4000 |
51 |
60 |
9000 |
2180*2440 |
4050 |
51 |
60 |
10000 |
2300*2440 |
4050 |
51 |
60 |
12000 |
2270*3000 |
4600 |
51 |
60 |
15000 |
2530*3000 |
4700 |
51 |
60 |
20000 |
2640*3660 |
5400 |
51 |
60 |
1. Q: How do I pay for my purchase order ?
A: T/T
2. Q: What's the MOQ of Paint Mixing Machine?
A: Our MOQ of Paint Mixing Machineis 1 unit.
3. Q:What's the delivery time ?
A: It will take about 25 workdays to finish an order, but the exact time is according to actual situation.
4. Q: Can I have my own customized product?
A: Of course, you products can be customized for example color, logo, design, mark, etc.
5. Q: Do you have quality control?
A: Yes, we attach great importance to quality control.
6. Q: How about the warranty control?
A: One year warranty for the machineries since sold. If quality problem occurs, please feel free to contact us.
| Please contact our After-sales service department in time within 30days after you received the cargo. | |
| Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time) | |
| Process | Please provide the copy Emulsion Industrial Automatic Car Paint/Paint Mixing Machineof Sales Contract and describe the problems appeared. |
| Problems confrimation: | |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| b | Have a negotiation of the compensation and sign agreements |
| c | Our After-Sales Department will perform the duties as the agreements |
