Food Grade Stainless Steel Milk Self Priming Pumps
US$ 200 - 2,500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
l&b
Model Number:
FZB
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Hot Steel Industrial High Viscosity Screw Pump for FoodUS$ 2,800 - 38,000MOQ: 1 Set -
Stainless Steel Self Priming Water PumpUS$ 200 - 3,000MOQ: 1 Set
-
Stainless Steel 2.2KW Self Suctioning PumpUS$ 200 - 3,000MOQ: 1 Set
-
Food Grade Stainless Steel Self Suction PumpUS$ 200 - 3,000MOQ: 1 Set
-
CE Confirm Stainless Steel High Viscosity Double Screw Pump for Pulp of FruitUS$ 3,000 - 35,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
l&b
Model Number
FZB
Theory
Jet Pump
Structure
Single-stage Pump
Usage
Water
Power
Other, Electric, 5.5-11KW
Standard or Nonstandard
Standard
Fuel
Gasoline
Pressure
Low Pressure
Application
Other, liquid, Food, juice, milk, etc
Product Description
Self-priming pump adopts acid-resisting stainless steel (AISI 316)in value body ,which has unique acid and alkali resistance , and comply with sanitary requirements for foods.
As a positive displacement pump, its features are superior to centrifugal pump since it suction liquid mixed with air or foams and even merely air. It is widely used to suction material with liquid level below the pump, for instance in the milking room, it suctions milk from the milk barrel. It can also be used in automatic CIP cleaning system as return flow pump in cleaning tank. The mechanical sealing is the build –in influx type ,and the temperature of suctioned material is no higher than 100°C.
Technical Parameters
| Model | 20 T/24 M | 30 T/24 M | 40 T/36 M |
| Flow | 20 T | 30 T | 40 T |
| Total Head | 24 m | 24 m | 36 m |
| Suction Stroke | 5-6 m | 5-6 m | 5-6 m |
| Impeller Diameter | 192 mm | 192 mm | 215 mm |
| Inlet/Outlet Diameter | 63.5/63.5 mm | 76.5/63.5 mm | 76/76 mm |
| Motor Type | M2QA132S4A | M2QA132M4A | M2QA160SM4A |
| Power | 5.5kw(380V/50HZ ) | 7.5kw(380V/50HZ ) | 11kw(380V/50HZ ) |
| Speed | 1420 r/min | 1420 r/min | 1420 r/min |
| Dimensions(L*W*H) | 760*320*475 | 760*320*475 | 1006*360*600 |
| Machine Weight | 110 kg | 116kg | 168kg |

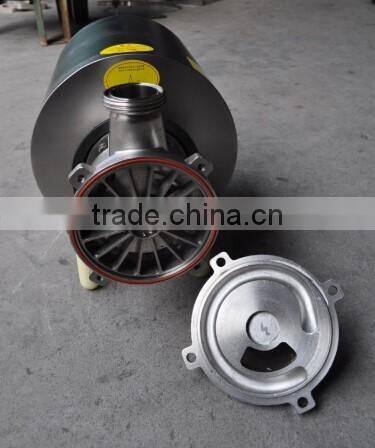

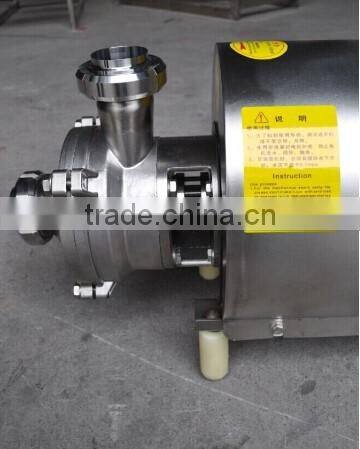

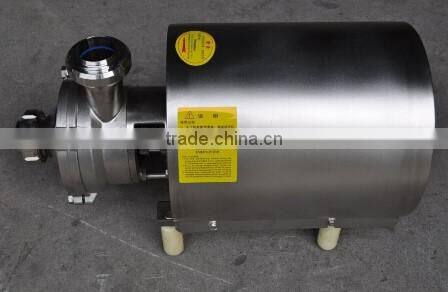

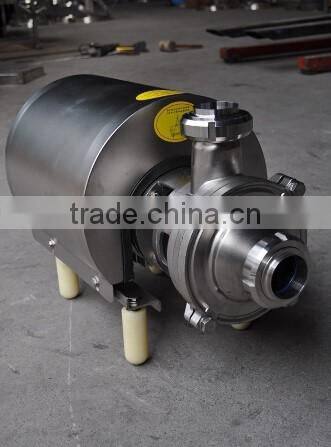

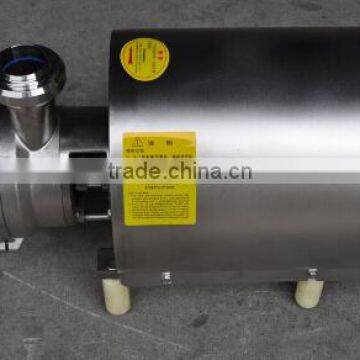

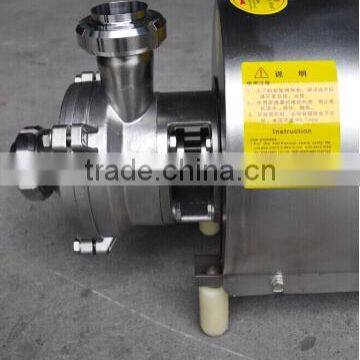

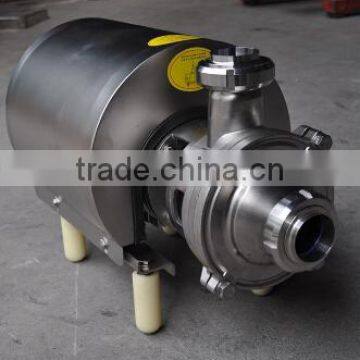

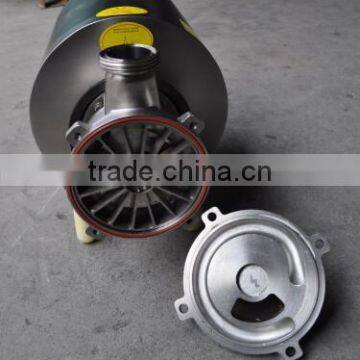

Product Picture
