Application
The BLS series sanitary centrifugal pump is widely used for conveying various liquid materials in
such fields as dairy,beer,beverage,medicine,biological engineering fine chemical industry etc.It can
be used to convery ordinary solutions of low and medium viscosity. And solutions containing suspension
or corrosive solutions. The form of sanitary centrifugal pump is single stage,single suction and open-
type impeller.
Standard design

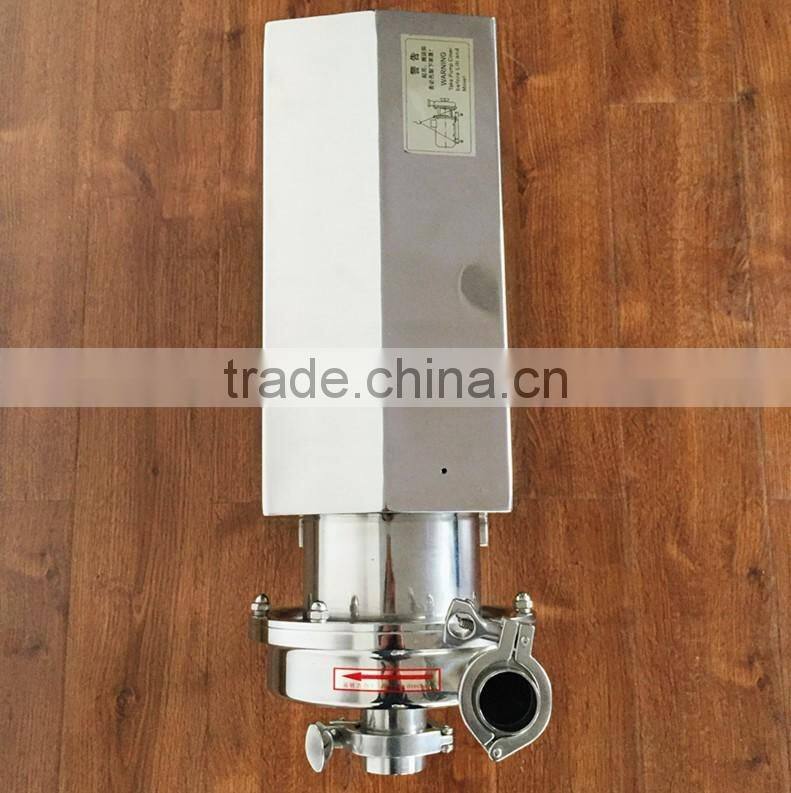

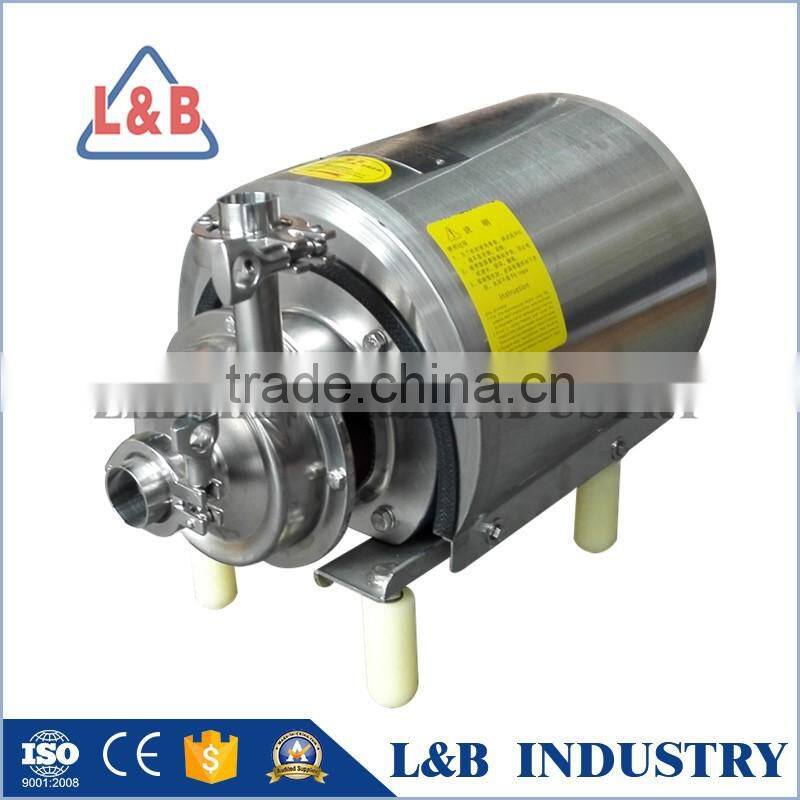

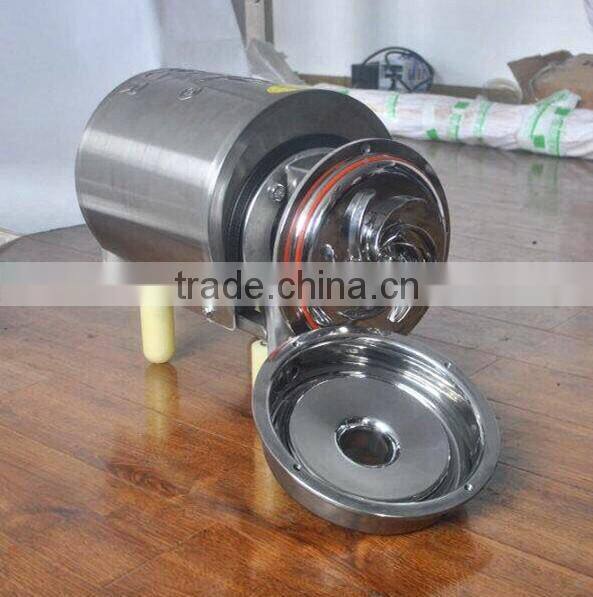

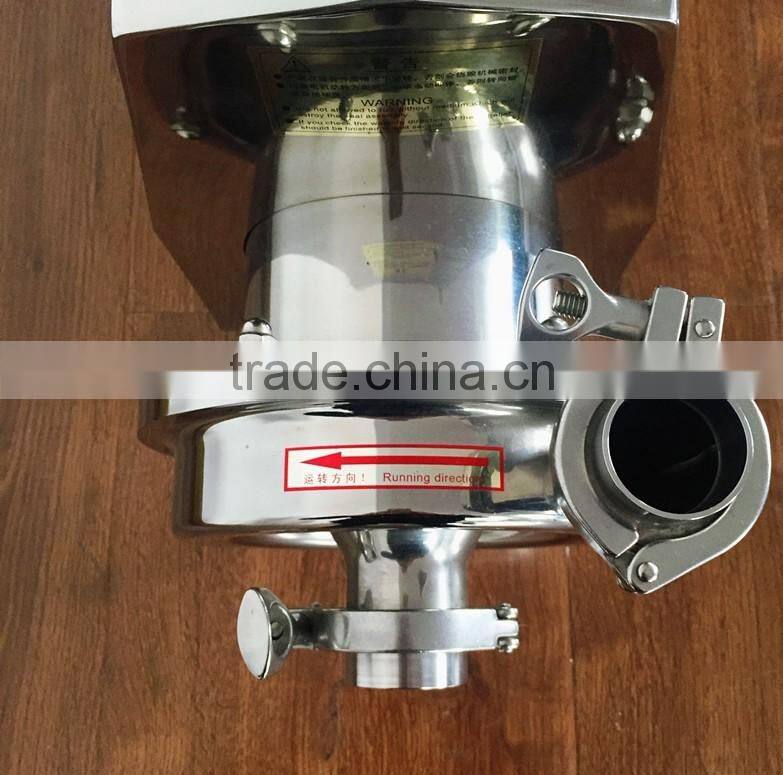

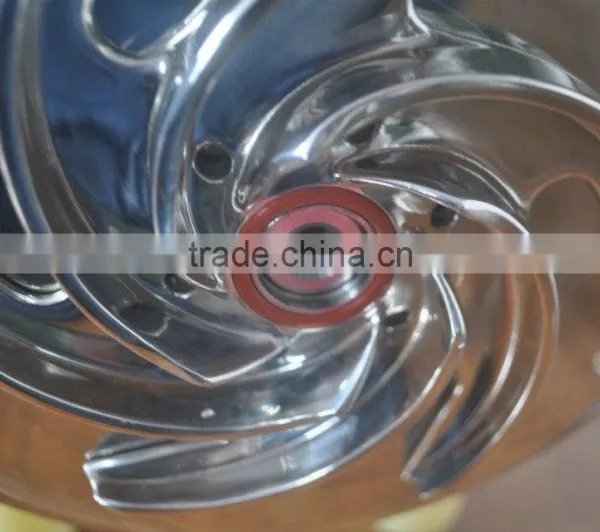

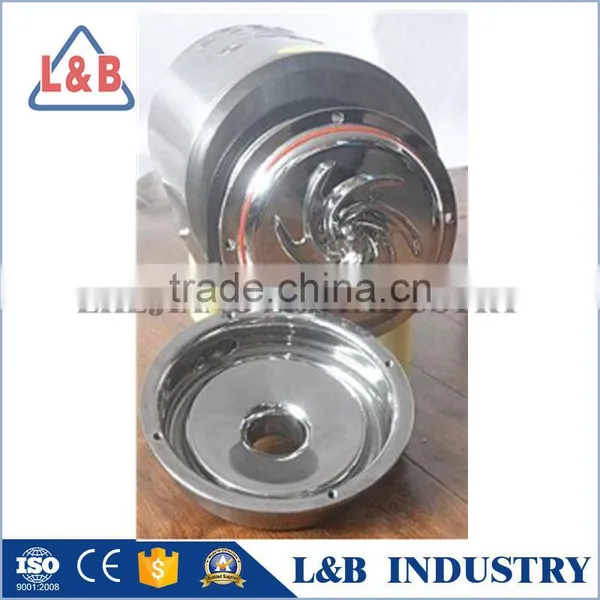

The BLS series santiary centrifugal pump is composed of motor,pump shaft,mechanical clamping jacket,
sanitary mechanicl seal,connection support,rear plate,impeller,pump shell etc.The BLS series sanitary
centrifugal pump has large internal round chamfer and cleaning type seal.The BLS series sanitary
centrifugal pump specially designed for CIP has the staineless steel protection cover used for protecting
the motor and the equipment is supported by four adjustable feet.
Shaft seal
The BLS series sanitary centrifugal pump is provided with a set of extemally mounted single end mechanical
seal or water injection mechanical seal.The static ring of the mechanicl seal is made of stainless steel.silicon
carbide or tungsten alloy.The dynamic ring is made of stainless steel.carbon,graphite or tungsten alloy.The
seal ring of the water injection type seal is a durable lip seal.The series of pump products can also equipped
with the double end mechanial seal.
Technical Parameters
Maximum inlet pressure:0.5Mpa
Temperature range:-10 0C +140 0C(EPDM)
Noise level(at 1m): 60-85dB(A)
Washable seal
Hydraulic pressure :maximum 0.1Mpa
Water volume:0.25-0.5L/min
Double end seal
Hydraulic pressure :maximum 0.1Mpa
Water volume:0.25-0.5L/min
Materials
Materials of liquid passing parts:AISI316L.AISI316 or AISI304 stainless steel
Material of other parts: AISI304 stainless steel
Outer surface:titanium
Inner surface:mirror polishing 0.4 or titanium
Liquid passing rubber seal materials:EPDM/ Q/ FRM/ NBR
Mix flow:150m3 /H
Max.speed:3600min-1
Max.head:70H(m)
ing pressure:7bar/99PSI
Motor power:0.75/1.1/1.5/2.2/......37kw
Voltage:110v,220v,380v,440v
Motor choice:ABB/SIEMENS/DOMESTIC
Motor Frequency:50Hz.60Hz
|
Model |
(t/h) Flow |
(M) Head |
(KW) Power |
(mm) Inlet/Outlet Diameter |
Remarks |
BLS-3-15-0.75 |
3 |
15 |
0.75 |
38/32 |
ABB |
BLS-3-20-1.1 |
3 |
20 |
1.1 |
38/32 |
ABB |
BLS-5-24-1.5 |
5 |
24 |
1.5 |
51/38 |
ABB |
BLS-5-32-2.2 |
5 |
32 |
2.2 |
51/38 |
ABB |
BLS-10-24-2.2 |
10 |
24 |
2.2 |
51/38 |
ABB |
BLS-10-32-3 |
10 |
32 |
3 |
51/38 |
ABB |
BLS-15-24-3 |
15 |
24 |
3 |
51/51 |
ABB |
BLS-20-24-4 |
20 |
24 |
4 |
51/51 |
ABB |
BLS-20-35-5.5 |
20 |
35 |
5.5 |
63.5/51 |
ABB |
BLS-30-24-5.5 |
30 |
24 |
5.5 |
63.5/51 |
ABB |
BLS-30-35-7.5 |
30 |
35 |
7.5 |
63.5/51 |
ABB |
BLS-40-24-7.5 |
40 |
24 |
7.5 |
76/63.5 |
ABB |
BLS-50-24-7.5 |
50 |
24 |
7.5 |
76/63.5 |
ABB |
BLS-50-35-11 |
50 |
35 |
11 |
76/63.5 |
ABB |
BLS-80-30-15 |
80 |
30 |
15 |
89/76 |
ABB |
BLS-80-40-18.5 |
80 |
40 |
18.5 |
102/89 |
ABB |
