Small Scale Homogenizer

Small Scale Homogenizer photo-1

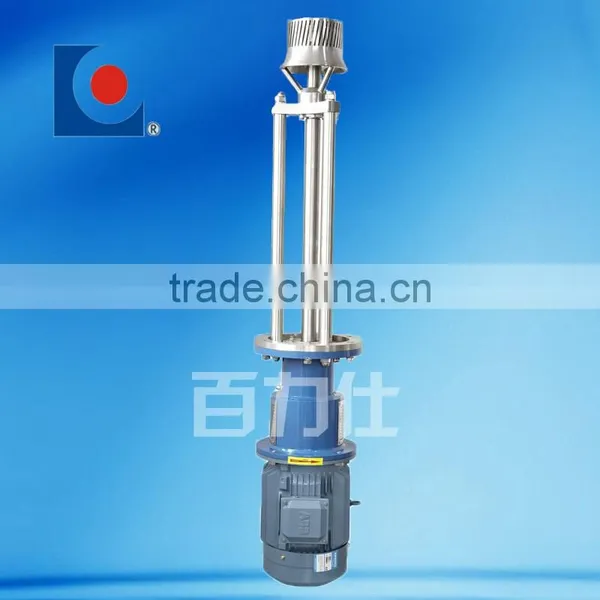

Small Scale Homogenizer photo-2
US$ 300 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Homogenizer
Product Type:
Cosmetic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Mixer Type Homogenizer
Product Type Cosmetic
Application Other, Liquid, Dairy, beverage, food, pharmacy, biotechnology, cosmetic, etc
Additional Capabilities Milling
Place of Origin Zhejiang, China
Brand Name BLS
Model Number BRH
Max. Loading Capacity 10000L/H
Voltage 380V, 220V
Power(W) 1.1-75KW
Dimension(L*W*H) Pending
Certification SGS, CE, ISO
Warranty 1 years
After-sales Service Provided Overseas third-party support available



Product Description



Working Method:

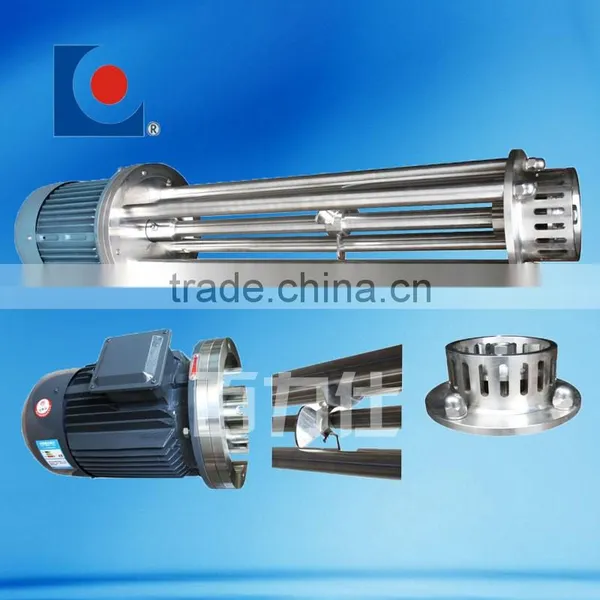

High shear batch emulsifier(mixer) is suitable for mixing, dispersing, shearing and homogenizing all kinds of viscous liquid and pastes. The products could be applied in food, beverage, chemical, pharmaceutical, paint& ink industry etc. The unit consists of a centrally located shaft, connected to a flanged type motor mounted on a steel housing. We have four types of different stators to suit different working condition.

Features:

All wetted parts are grade 304 or 316 Stainless steel
Mechanical Seal for Sanitary Operation
Quick opening for easy cleaning
Hygienic Design.
Explosion-proof ABB Motor 3 Phase



Technical Parameters





Model Power(kw) Speed(rpm) Length(mm) Handing Capacity(L/H)
BRH-80 1.1 2800 350 10-40
BRH-90 1.5 2800 350 10-50
BRH-100 2.2 2800 650 50-100
BRH-120 3 2800 750 100-200
BRH-120A 4 2800 750 100-300
BRH-140 5.5 2800 900 200-600
BRH-140A 7.5 2800 900 200-800
BRH-160 11 2800 1050 500-1500
BRH-180 18.5 2800 1200 600-2000
BRH-200 22 1400 1200 800-2500
BRH-220 30 1400 1355 1000-3500
BRH-240 45 1400 1395 1500-5000
BRH-270 55 1400 1600 2000-8000
BRH-290 75 1400 1650 3000-10000

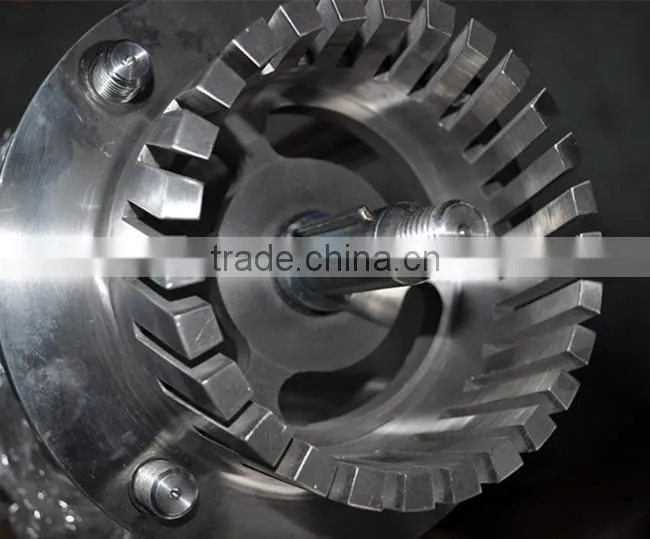

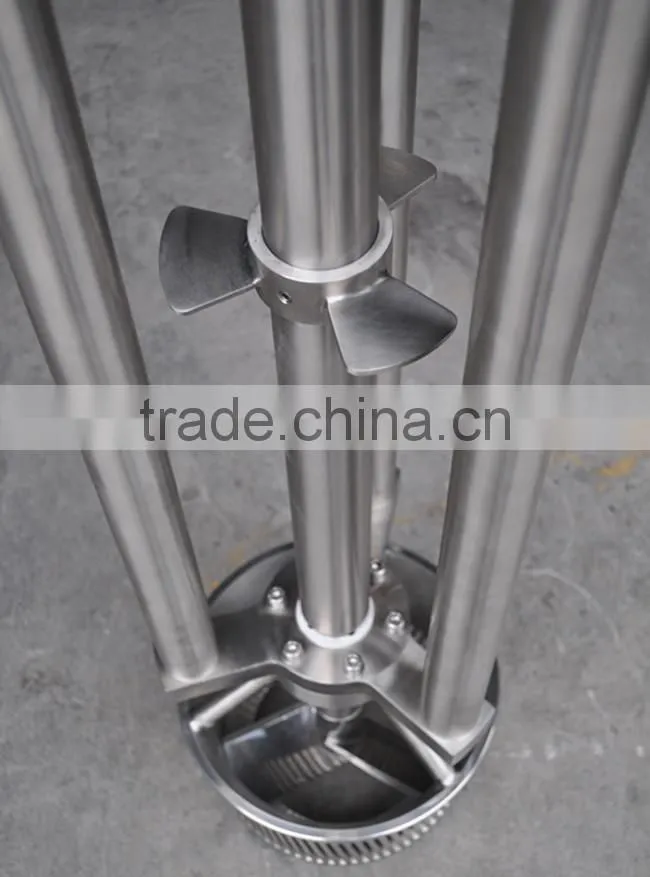

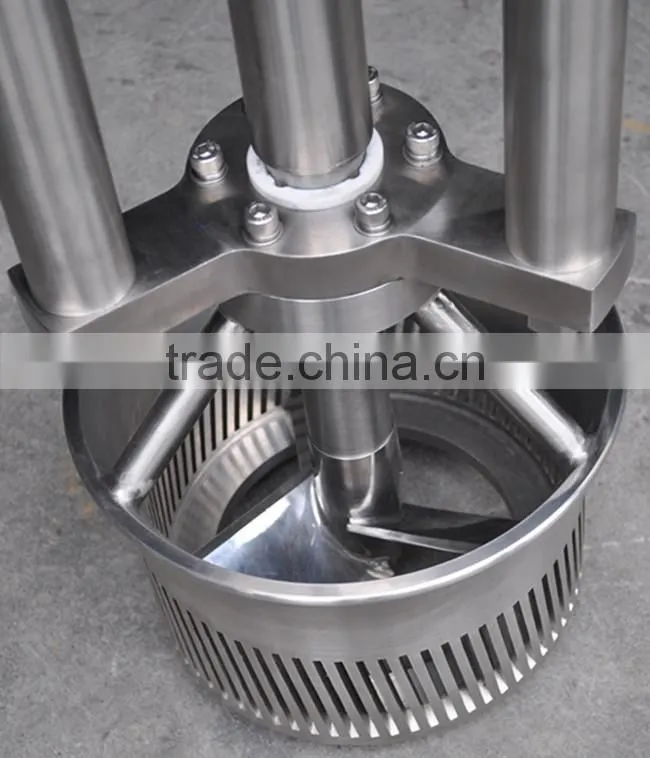

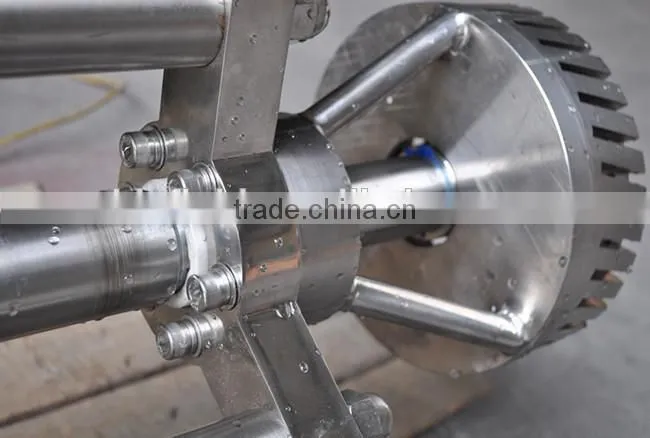

Product Photos

  small scale homogenizer

small scale homogenizer











small scale homogenizer

small scale homogenizer



small scale homogenizer







small scale homogenizer



small scale homogenizer



small scale homogenizer
