Help CenterStainless Steel Conical Tank
Related Products

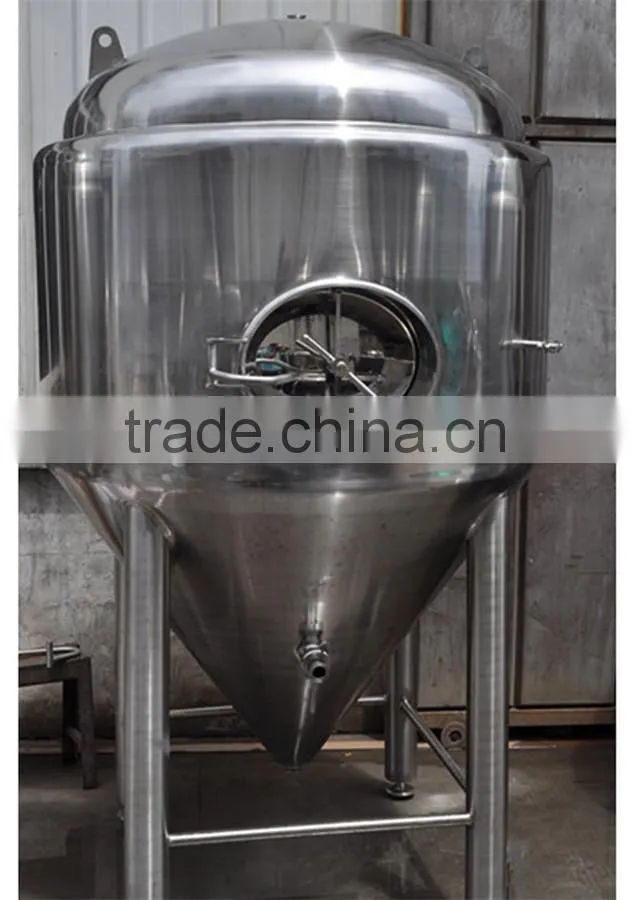

Stainless steel conical tank
Capacity: 100-10000L
Material:SUS304,AISI316L
0.55-11kw
Polished inside outside
Fermentation tank is the equipment for mechanical blending and fermentation of materials. The equipment adopts internal recycling mode and blending paddle to distribute and break up bubbles. Therefore, high speed of oxygen solution and good quality of blending are achieved. Tank body is made of SUS304 or 316L imported stainless steel, and automatic spraying and cleaning nozzle is attached in the tank to ensure producing procedure comply with GMP requirements.
beer fermentation tanks model |
FJ0.1 |
FJ0.2 |
FJ0.5 |
FJ1 |
FJ2 |
FJ5 |
FJ10 |
FJ20 |
FJ50 |
Volume(L) |
100 |
200 |
500 |
1000 |
2000 |
5000 |
10000 |
20000 |
50000 |
Diameter of fermentation tank(mm) |
400 |
500 |
700 |
900 |
1200 |
1500 |
1800 |
2300 |
3100 |
Height of fermentation tank(mm) |
2000 |
2300 |
2650 |
2900 |
3800 |
4480 |
5250 |
6550 |
8550 |
Pressure in tank(Mpa) |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
Pressure in jacket(Mpa) |
0.3 |
0.3 |
0.3 |
0.2 |
0.3 |
0.3 |
pipe0.3 |
pipe0.3 |
pipe0.3 |
Umber of blending paddles |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
4 |
4 |
Blending rotation(r/min) |
400 |
360 |
265 |
220 |
180 |
160 |
145 |
125 |
110 |
Motor power(KW) |
0.55 |
0.75 |
1.1 |
1.5 |
3 |
5.5 |
7.5 |
7.5 |
11 |
Cooling mode |
Jacket |
|
Equipped with lined heat exchanger |
||||||
| Please contact our After-sales service department in time within 30days after you received the cargo. | |
| Tel: 0086-13157735760 Time: 9:00 a.m.- 6:00 p.m. (Beijing time) | |
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confirmation: | |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| b | Have a negotiation of the compensation and sign agreements |
| c | Our After-Sales Department will perform the duties as the agreements |
